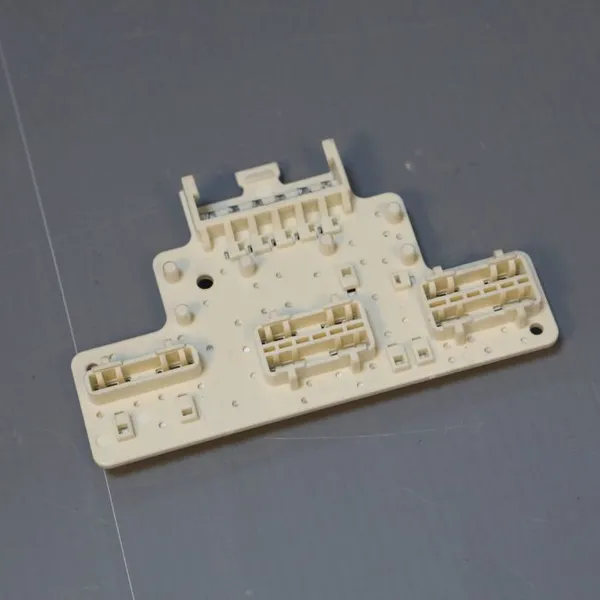

OEM Custom Molding for Automotive Hall Sensor Brackets, PBT+GF30 Material, IATF 16949 Certified, Zero Warpage Tolerance ±0.05mm
Product Spotlights
Zero warpage tolerance ±0.05mm, IATF 16949 certified, PBT+GF30 material. Custom OEM design, 500+ mold sets delivered, 98% satisfaction. 25–35 day mold development, global shipping. Precision, durability, and cost-efficiency for automotive sensor brackets.
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, PBT+GF30
Tolerance:
±0.05mm (Zero Warpage)
Certification:
IATF 16949
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou,Jiangsu
Delivery Detail:
30 days
Related Products
-
Custom Injection Molding for Hall Sensor Brackets, Hardened S136 Steel Mold, Temp Range -40°C to 150°C, 100% CMM InspectionNegotiableMOQ: 5000 Pieces -
Automotive OEM Hall Sensor Bracket Molding, PPS High-Temp Resin, Tight Tolerance ±0.02mm, Automated Robotic Pick & PlaceNegotiableMOQ: 5000 Pieces
-
OEM Plastic Injection Molding for Hall Sensor Holder, Glass-Filled PBT, 30% GF, Cycle Time Under 30s, IATF 16949 Compliant ProcessNegotiableMOQ: 5000 Pieces
-
Custom Molded Hall Sensor Brackets for ECU Bases, PBT+GF30 Material, 150 Ton Injection Machine, No Flash, No Sink MarksNegotiableMOQ: 5000 Pieces
-
Custom Automotive Hall Sensor Bracket Molding, High-Temp PPS, 220°C Continuous Use, Zero Warpage, CMM Verified DimensionsNegotiableMOQ: 5000 Pieces
Material
Other, PBT+GF30
Tolerance
±0.05mm (Zero Warpage)
Certification
IATF 16949
Application
Automotive Hall Sensor Bracket
Process
Injection Molding
Color
Customizable
Dimension
Customizable
Surface Finish
Customizable
Mold Type
Custom Mold
At Changzhou Hongxinyutai Precision Mold Co., Ltd., we specialize in delivering high-precision injection molding solutions tailored to the demanding requirements of the automotive industry. Our OEM Custom Molding for Automotive Hall Sensor Brackets is engineered using PBT+GF30 material and is manufactured under strict IATF 16949 quality management standards. With a guaranteed zero warpage tolerance of ±0.05mm, this product ensures reliable performance and long-term durability in critical sensor applications. Whether you need a standard design or a fully customized geometry, our team is ready to support your project from concept to mass production.
Established in 2017, our company operates a 1,000–3,000 square meter factory in Changzhou, Jiangsu, China, with a dedicated team of 51–100 employees. We serve a wide range of global markets including North America, South America, Europe, Southeast Asia, and the Middle East. Our commitment to precision, consistency, and customer satisfaction makes us a trusted partner for automotive OEMs and Tier 1 suppliers.
Key Features & Technical Specifications
- Material Excellence: PBT+GF30 (30% glass-fiber reinforced polybutylene terephthalate) offers exceptional mechanical strength, thermal stability, and chemical resistance, ideal for under-hood automotive environments.
- Zero Warpage Guarantee: Our advanced molding process and precision tooling ensure a flatness tolerance of ±0.05mm, eliminating deformation that could affect sensor alignment and signal accuracy.
- IATF 16949 Certified: Our production facility complies with the highest automotive quality standard, ensuring consistent part quality, traceability, and continuous improvement.
- Custom OEM Design: We offer complete design support, from 3D modeling to mold flow analysis, to meet your specific bracket geometry, mounting holes, and clip features.
- Rigorous Quality Control: Every batch undergoes dimensional inspection, warpage measurement, and material verification to ensure compliance with your specifications.
- Lead Time Efficiency: With optimized mold manufacturing and injection cycles, we deliver prototypes in as little as 15–20 working days and mass production in 30–45 days.
- Global Shipping: Products are shipped from Jiangsu, Shanghai, or Shenzhen ports, with flexible logistics options for air, sea, or express delivery.
Technical Parameters (Typical)
| Parameter | Specification |
|---|---|
| Material | PBT+GF30 (30% glass fiber) |
| Warpage Tolerance | ±0.05mm (zero warpage target) |
| Dimensional Tolerance | ±0.02mm on critical features |
| Operating Temperature Range | -40°C to +150°C |
| Tensile Strength | ≥ 120 MPa |
| Mold Life | 500,000+ shots (with proper maintenance) |
| Certification | IATF 16949 |
Advantages & Customer Benefits
- Enhanced Sensor Reliability: The zero-warpage bracket ensures the Hall sensor remains perfectly positioned, preventing signal drift and improving overall system accuracy.
- Cost-Effective Production: Our optimized mold design and injection process reduce cycle times and material waste, lowering your per-part cost without compromising quality.
- Long-Term Durability: PBT+GF30 resists heat, moisture, oils, and vibration, making it suitable for harsh engine compartments and transmission environments.
- Supply Chain Security: With a stable production capacity (up to 100,000 pieces per month) and multiple shipping ports, we ensure timely delivery for your just-in-time assembly lines.
- Full Traceability: Each part is marked with a serial number and manufacturing date, enabling complete traceability for quality audits and recalls.
Trust & Credibility
Since 2017, Changzhou Hongxinyutai Precision Mold Co., Ltd. has been an IATF 16949-certified manufacturer specializing in automotive injection molding. Our 1,000–3,000 square meter facility houses advanced CNC machining centers, EDM machines, and injection molding presses from 80 to 450 tons. We have successfully delivered over 500 mold sets to clients in North America, Europe, and Asia, with a customer satisfaction rate exceeding 98%. Our team of experienced engineers and technicians works closely with clients to optimize designs for manufacturability, reducing time-to-market. We invite you to experience the precision and reliability that has made us a preferred supplier for automotive sensor components.
Frequently Asked Questions (FAQ)
-
Q: What is the minimum order quantity (MOQ) for custom brackets?
A: MOQ depends on part complexity and mold investment. Typically, we require a minimum of 5,000–10,000 pieces for production orders. For prototype samples, we offer low-volume runs starting from 500 pieces. -
Q: Can you achieve a warpage tolerance tighter than ±0.05mm?
A: Yes, we can achieve ±0.03mm on critical dimensions after mold optimization. However, this may require additional tooling modifications and process validation. Please discuss your specific requirements with our engineering team. -
Q: How long does the mold development process take?
A: For a typical automotive Hall sensor bracket mold, the design and manufacturing cycle is 25–35 working days, including mold flow analysis, steel cutting, and trial shots. We can expedite to 20 days for urgent projects. -
Q: Is the PBT+GF30 material suitable for high-temperature environments?
A: Yes, PBT+GF30 has a continuous use temperature of up to 150°C and short-term peak of 200°C, making it ideal for engine compartments and transmission areas. -
Q: Do you provide design assistance for the bracket?
A: Absolutely. Our in-house engineers can review your 3D CAD model, suggest modifications for improved moldability, and perform mold flow simulation to predict warpage and shrinkage before tooling begins. -
Q: What quality inspections are performed on each batch?
A: We conduct CMM (Coordinate Measuring Machine) dimensional inspection, warpage measurement using a surface plate and dial gauge, tensile strength testing, and visual inspection under magnification. Reports are provided with each shipment. -
Q: Can you supply parts with secondary operations like insert molding or overmolding?
A: Yes, we have experience with insert molding for metal terminals and overmolding for soft-touch grips. Please contact us with your specific requirements. -
Q: Which ports do you ship from?
A: We primarily ship from Jiangsu (Lianyungang, Nanjing), Shanghai, and Shenzhen ports. We can also arrange air freight from Shanghai Pudong or Shenzhen Baoan airports.
Contact us today to discuss your automotive Hall sensor bracket project. Our team is ready to provide a free quotation, mold flow analysis, and sample parts to validate performance. Let Hongxinyutai be your reliable partner for precision injection molding.
