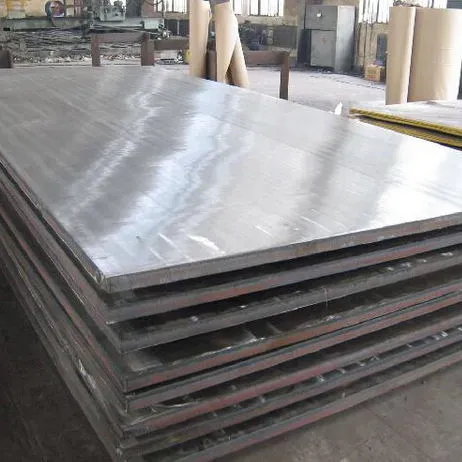

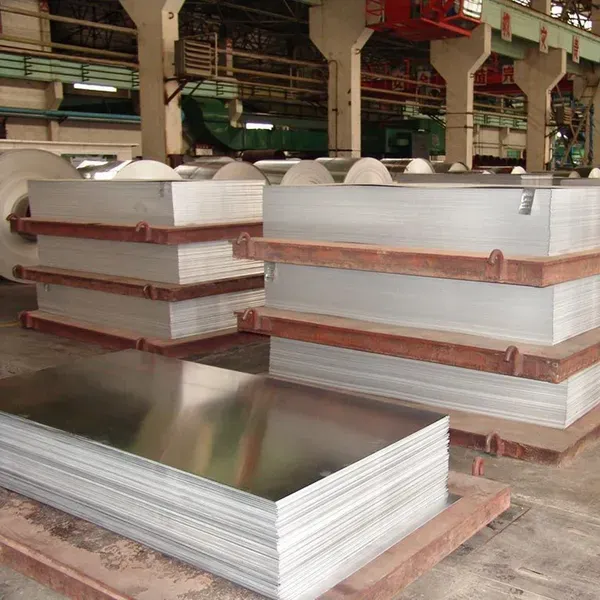

Help CenterHigh Performance Nickel Alloy 400 Plate Sheet for Corrosion Resistant Applications
Product Spotlights
Related Products
-
Nickel Alloy 25ht UNS N06696 Plate Sheet High Temperature StrengthUS$ 20 - 70MOQ: 100 Kilograms -
Customized Nickel Alloy 718 Plate Sheet in Stock for Aerospace PartsUS$ 20 - 70MOQ: 100 Kilograms
-
High Quality Nickel Alloy C276 C22 B2 Plate Sheet for High Temperature CorrosionUS$ 20 - 70MOQ: 100 Kilograms
-
Nickel Alloy X N06002 Plate Sheet High Performance Superalloy for Gas TurbineUS$ 20 - 70MOQ: 100 Kilograms
-
Nickel Based Expansion Alloy Ni29Co18 (4J29) Plate Sheet for Glass SealingUS$ 20 - 70MOQ: 100 Kilograms
As a leading manufacturer from Wuxi Yansheng Technology Co., Ltd., we are proud to present our High Performance Nickel Alloy 400 Plate Sheet, engineered specifically for the most demanding corrosion resistant applications. With over 7 years of expertise in the metal industry and a factory spanning 1,000-3,000 square meters, we combine advanced production technology with strict quality control to deliver plates and sheets that meet international standards. Our Nickel Alloy 400 (Monel 400) products are trusted by clients across North America, Europe, Southeast Asia, and beyond, serving industries that require exceptional resistance to acidic and alkaline environments, seawater, and high-temperature oxidation.
This alloy offers a unique balance of mechanical strength and corrosion resistance, making it the preferred choice for heat exchangers, chemical reactors, marine valves, and piping systems. Our plates and sheets are available in a wide range of thicknesses, widths, and lengths, with customizable surface finishes to suit your specific fabrication needs. Whether you require hot-rolled plates for structural components or cold-rolled sheets for precision parts, we provide consistent quality and reliable lead times.
Key Features & Technical Specifications
- Superior Corrosion Resistance: Excellent performance in reducing acids, hydrofluoric acid, and chloride environments. Resists pitting and crevice corrosion in seawater.
- High Strength & Toughness: Maintains mechanical properties at both cryogenic and elevated temperatures (up to 600°C).
- Excellent Weldability & Fabricability: Can be welded, brazed, and soldered using standard methods without post-weld heat treatment.
- Versatile Surface Options: Available in hot-rolled, cold-rolled, 2B, BA, No.1, mirror, and pickled finishes.
- Precise Dimensional Tolerances: Manufactured to ASTM B127 and ASME SB127 standards with tight thickness and flatness control.
| Parameter | Typical Value | Notes |
|---|---|---|
| Alloy Composition | Ni 63% min, Cu 28-34%, Fe 2.5% max, Mn 2% max | UNS N04400 |
| Tensile Strength | ≥ 550 MPa | ASTM B127 |
| Yield Strength | ≥ 240 MPa | 0.2% offset |
| Elongation | ≥ 30% | In 50 mm |
| Hardness | ≤ 250 HB | Annealed condition |
| Density | 8.80 g/cm³ | Typical |
Our Nickel Alloy 400 plates and sheets offer distinct advantages over stainless steels and other nickel alloys in corrosive environments. For example, in hydrofluoric acid production, Monel 400 outperforms Hastelloy and 316L due to its resistance to fluoride ions. In marine applications, it provides long service life without sacrificial anodes. Additionally, the alloy's low magnetic permeability makes it suitable for electronic and instrumentation enclosures.
We understand that every project has unique requirements. That's why we offer custom cutting, shearing, and surface finishing services to deliver exactly what you need. Our inventory includes standard sizes as well as custom dimensions with fast turnaround times. All products undergo rigorous inspection including chemical analysis, mechanical testing, and ultrasonic examination to ensure compliance with specifications.
Trust & Quality Assurance
Wuxi Yansheng Technology Co., Ltd. has been a reliable supplier in the metal industry since 2017, with an annual export value exceeding US$50 million. We serve a diverse global market including North America, South America, Europe, Africa, Oceania, and Asia. Our factory is equipped with advanced rolling mills, heat treatment furnaces, and precision cutting machines, operated by a skilled team of 101-200 employees. We hold multiple management system certifications such as ISO9001, ISO14001, OHSAS18001, and SA8000, reflecting our commitment to quality, environmental responsibility, and social accountability.
Our products are shipped from major Chinese ports including Tianjin, Shanghai, Qingdao, and Ningbo, ensuring efficient logistics to any destination. We have a dedicated quality control team that inspects every batch, and we provide Material Test Certificates (MTC) with each order. Our after-sales support includes technical consultation and replacement guarantees for any manufacturing defects.
Choose Wuxi Yansheng Technology Co., Ltd. for your Nickel Alloy 400 plate and sheet needs. Experience the combination of superior product performance, competitive pricing, and exceptional service. Contact us today for a quote or to discuss your specific requirements. We are ready to supply you with high-quality materials that will stand the test of time.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between Nickel Alloy 400 and Monel 400?
A: They are the same material. Monel 400 is the trade name for alloy UNS N04400, which contains approximately 63% nickel and 28-34% copper. Our plates and sheets are manufactured to identical specifications. -
Q: Can you provide custom sizes and thicknesses?
A: Yes, we offer customization. You can specify thickness from 0.5mm to 100mm, width up to 3000mm, and length as required. We also provide cutting, slitting, and surface finishing services. -
Q: What certifications do your products have?
A: Our manufacturing facility is certified under ISO9001, ISO14001, OHSAS18001, and SA8000. Each shipment is accompanied by a Material Test Certificate (MTC) and can include third-party inspection reports if requested. -
Q: Is this alloy suitable for seawater applications?
A: Absolutely. Nickel Alloy 400 is widely used in marine environments including propeller shafts, pumps, and valves due to its excellent resistance to chloride-induced stress corrosion cracking and pitting in seawater. -
Q: What surface finishes are available?
A: We offer hot rolled (HR), cold rolled (CR), 2B (bright), BA (bright annealed), No.1 (hot rolled and annealed), mirror polish, and pickled finishes. The choice depends on your application and aesthetic requirements. -
Q: What is the typical lead time for standard sizes?
A: For standard thicknesses (2mm-20mm) and widths (1250mm/1500mm), lead time is usually 7-15 days after order confirmation. Custom orders may require 15-25 days depending on specifications. -
Q: Do you offer samples for testing?
A: Yes, we can provide small samples (e.g., 200x200mm) at a nominal cost. Shipping is at the buyer's expense. Samples are typically cut from production stock and represent the same quality as bulk orders. -
Q: How do you ensure the quality of the plates?
A: We perform chemical analysis using spectrometers, mechanical testing (tensile, yield, elongation, hardness), and ultrasonic inspection for internal defects. Each plate is marked with heat number and grade for traceability.
