Deqing Leixin Coating Equipment Co., Ltd., a trusted manufacturer since 2011, proudly presents our Small Metal Workpiece Powder Coating Line specifically designed for automotive parts manufacturing. With a factory spanning 1,000–3,000 square meters and a team of 51–100 skilled employees, we have delivered reliable coating solutions to markets across North America, Europe, Asia, and beyond. Our line is engineered to deliver consistent, high-quality finishes on small metal components, helping automotive manufacturers achieve superior corrosion resistance, aesthetic appeal, and production efficiency.
This powder coating system integrates advanced electrostatic spray technology, efficient curing ovens, and a modular conveyor design to handle a wide variety of small automotive parts—from brackets and fasteners to engine components and chassis parts. Every aspect of the line is built for durability, energy savings, and ease of maintenance, ensuring your return on investment is maximized.
Key Features & Technical Specifications
- Compact Footprint: Designed for small metal workpieces, the line occupies minimal floor space while maintaining high throughput.

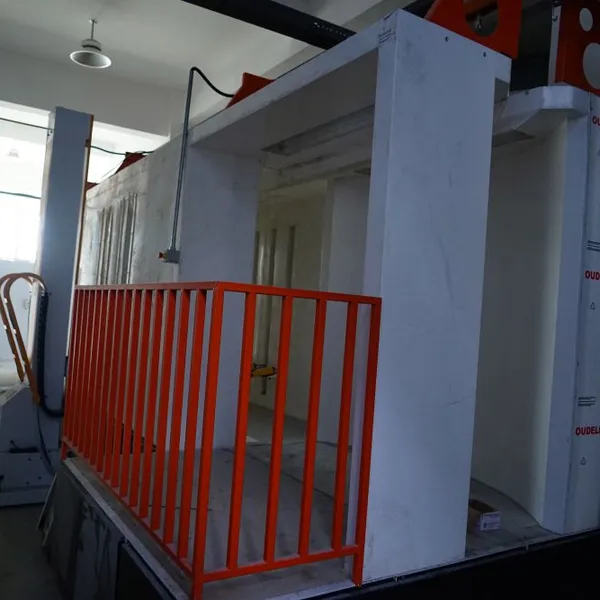

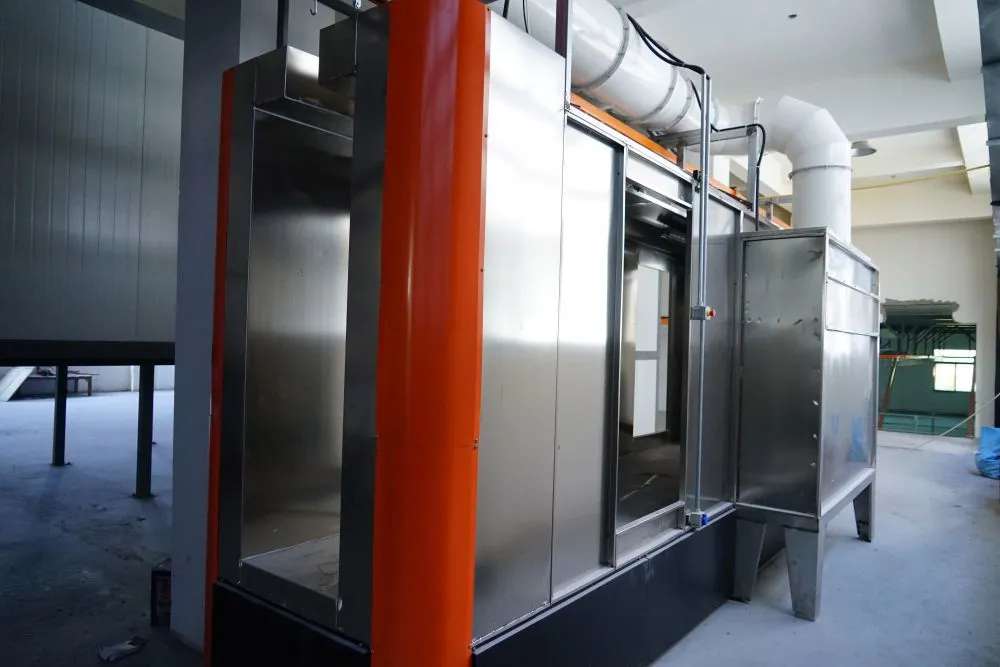

- Electrostatic Powder Application: Equipped with corona or tribo spray guns for uniform coating thickness and excellent wrap-around coverage.

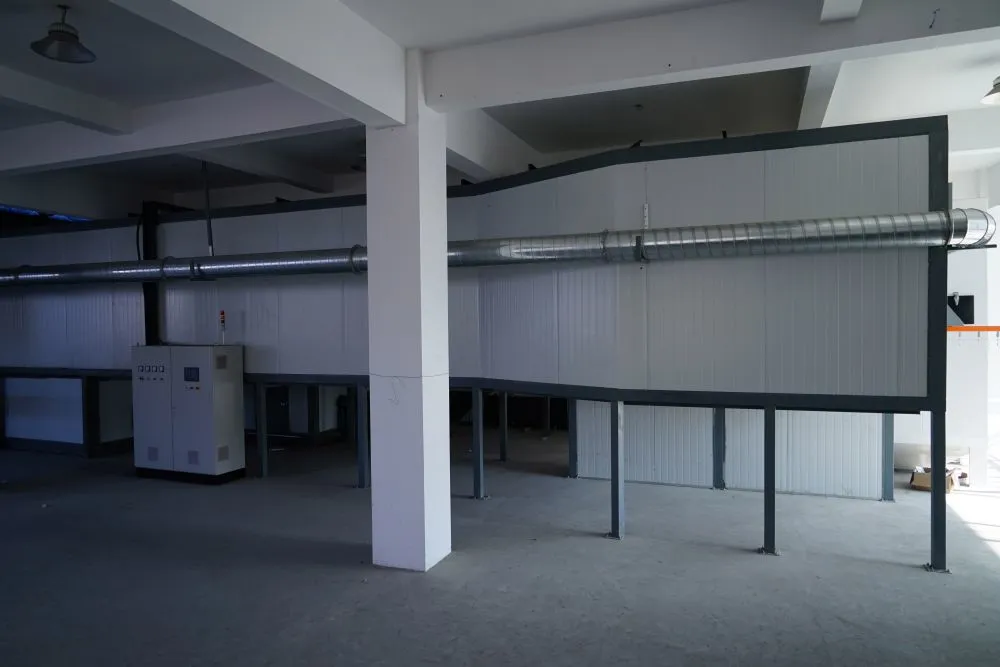

- Energy-Efficient Curing Oven: Available in gas-fired or electric models, with precise temperature control (180–220°C) for optimal powder fusion.

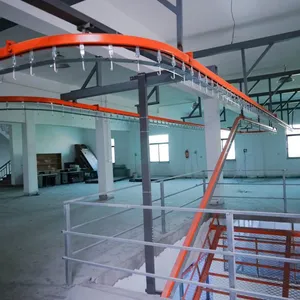

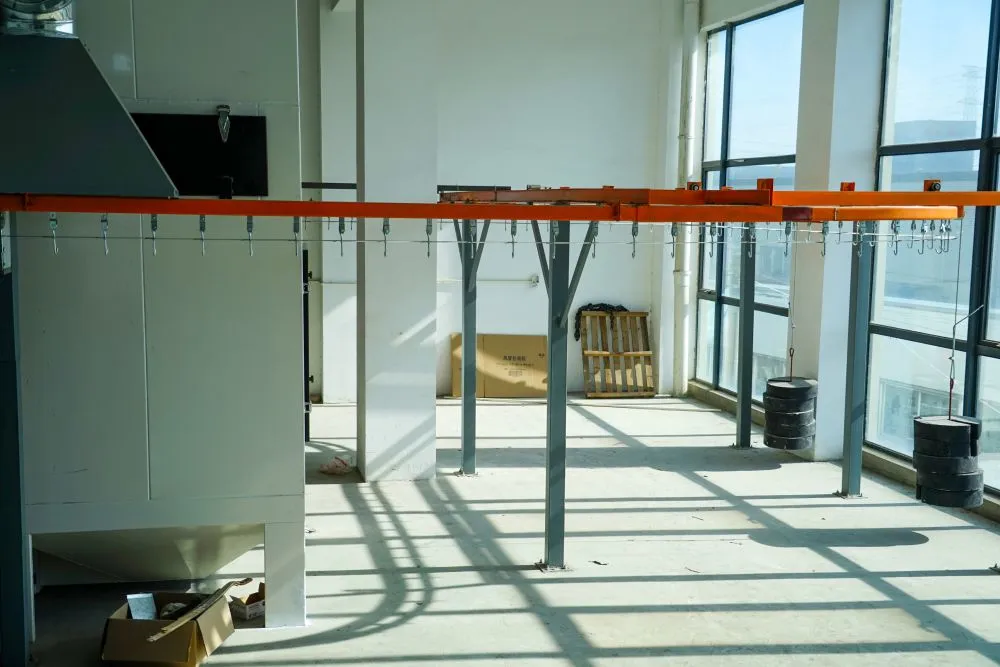

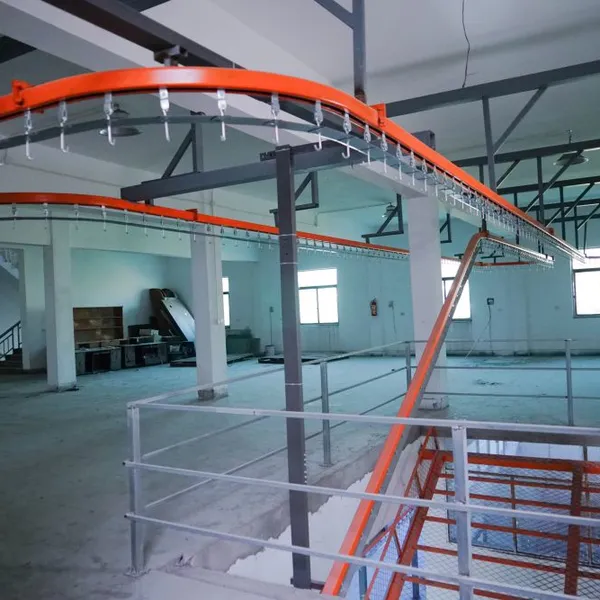

- Modular Conveyor System: Overhead monorail or floor-mounted chain conveyor, adjustable speed (0.5–5 m/min) to match production requirements.

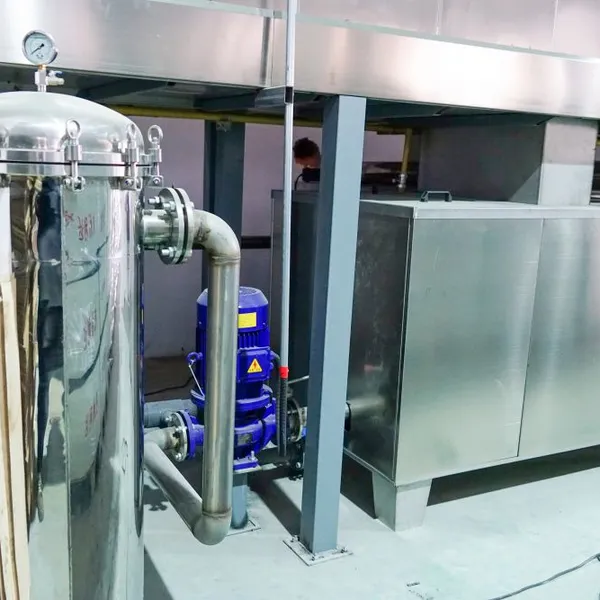

- Pre-treatment Section: Optional multi-stage spray washer with phosphate or zirconium conversion coating for enhanced adhesion.

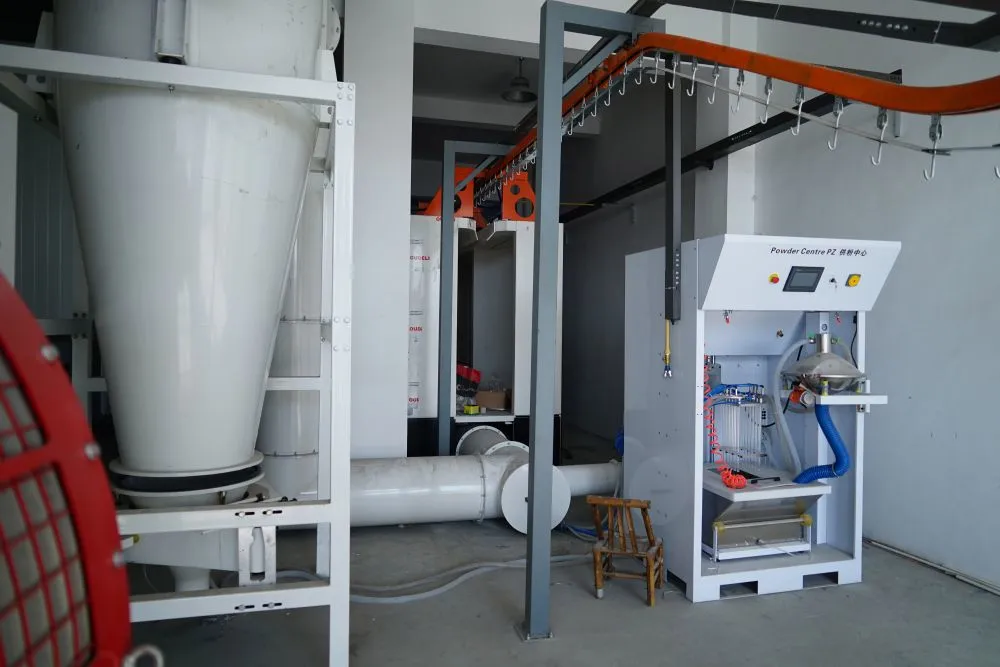

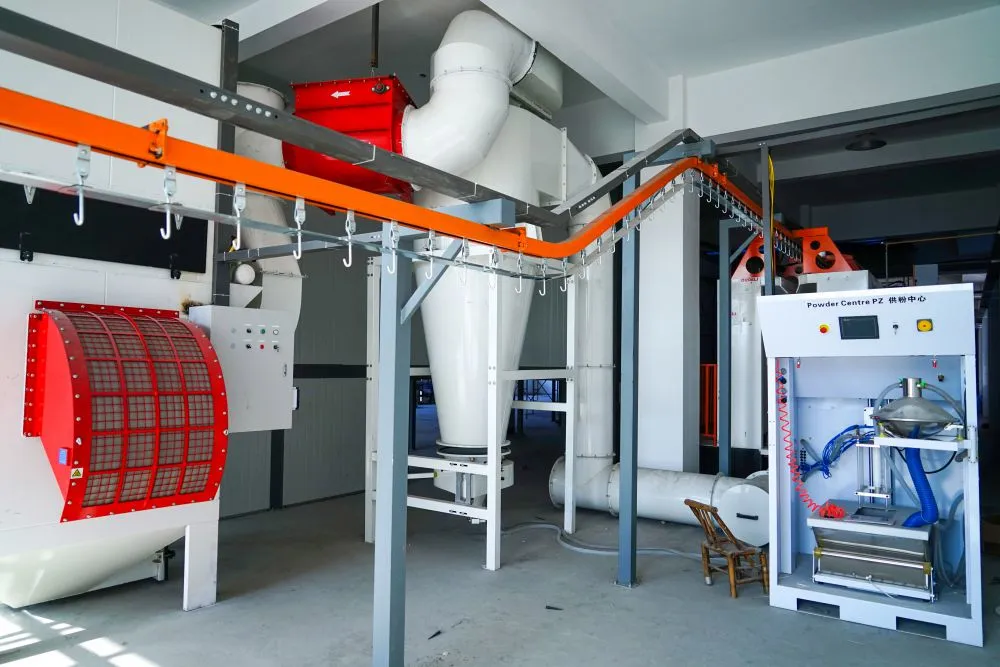

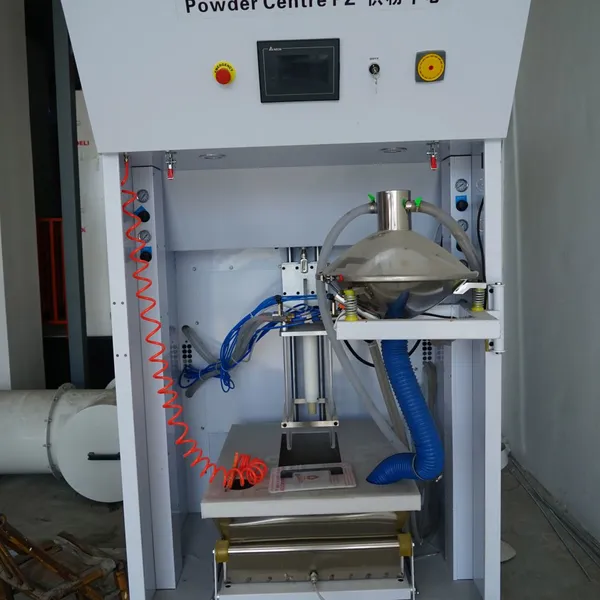

- Automatic Powder Recovery: Cyclone + cartridge filter system recycles overspray powder, reducing waste by up to 95%.
- PLC Control: User-friendly HMI touch screen for monitoring line speed, oven temperature, and gun parameters.
- Safety Features: Explosion-proof design, emergency stop, and fire suppression system (optional).
Technical Specifications (Example)
| Parameter | Value |
| Line Speed | 0.5 – 5 m/min (adjustable) |
| Max Workpiece Size | 400×400×300 mm (customizable) |
| Curing Temperature | 180 – 220°C |
| Powder Recovery Efficiency | ≥95% |
| Installed Power | 30 – 80 kW (depending on oven type) |
| Compressed Air Consumption | 0.5 – 1.5 m³/min |
Advantages & Benefits for Automotive Parts Manufacturers
- Enhanced Durability: Powder coating provides superior chip resistance, UV stability, and chemical protection compared to liquid paints.
- Consistent Quality: Automated control ensures repeatable coating thickness, eliminating human error.
- Eco-Friendly: Solvent-free process reduces VOC emissions; powder overspray is recyclable.
- Cost Savings: Lower material waste, reduced energy consumption, and minimal maintenance requirements.
- Flexibility: Easily switch between different powder colors or types (epoxy, polyester, hybrid) to meet diverse automotive specifications.
- Fast ROI: Typical payback period is 12–18 months for medium-volume production lines.
At Deqing Leixin, we understand the stringent requirements of the automotive industry. Our powder coating line has been tested and refined over years of field experience, serving clients in over 20 countries. With an annual export value of US$1–1.5 million, we have built a reputation for reliability and technical support. We are ISO9001:2015 certified, ensuring that every machine meets rigorous quality management standards.
We offer comprehensive after-sales services, including installation guidance, operator training, and spare parts supply. Our team of engineers can customize the line to handle your specific part geometries, production volumes, and coating requirements. Whether you are an OEM or a tier supplier, this small metal workpiece powder coating line is built to elevate your manufacturing capabilities.
Frequently Asked Questions
-
Q: What types of automotive parts can be coated on this line?
A: The line is suitable for small metal parts such as brackets, clips, fasteners, engine mounts, suspension components, and other steel or aluminum parts up to 400×400×300 mm. -
Q: Can I use different powder types (e.g., epoxy, polyester, polyurethane)?
A: Yes, the system is compatible with a wide range of thermosetting powder coatings. You can switch between materials by cleaning the powder hopper and gun. -
Q: What is the typical coating thickness range?
A: The electrostatic process can achieve 50–150 microns on flat surfaces, with uniformity within ±10% depending on part geometry. -
Q: Do you provide pre-treatment equipment?
A: Yes, we offer optional multi-stage spray washers and chemical pretreatment (iron phosphate, zirconium, etc.) to improve adhesion and corrosion resistance. -
Q: How long does it take to install and commission the line?
A: Typical installation takes 2–4 weeks, followed by 1–2 weeks of commissioning and training. Our engineers can supervise on-site if needed. -
Q: What is the power requirement for this line?
A: The standard configuration uses 380V/50Hz three-phase power, but we can customize to 220V/60Hz or other voltages upon request. -
Q: Is the line CE or UL certified?
A: The line is designed to meet international safety standards. Specific certifications (CE, UL, etc.) can be arranged based on your destination country requirements. -
Q: What is your warranty policy?
A: We offer a standard 12-month warranty on all mechanical and electrical components, with extended options available.
Contact us today to discuss your specific needs. With our experienced team, ISO9001 certification, and proven track record, Deqing Leixin is your reliable partner for automotive powder coating solutions. We are ready to provide a customized quotation and technical proposal.
