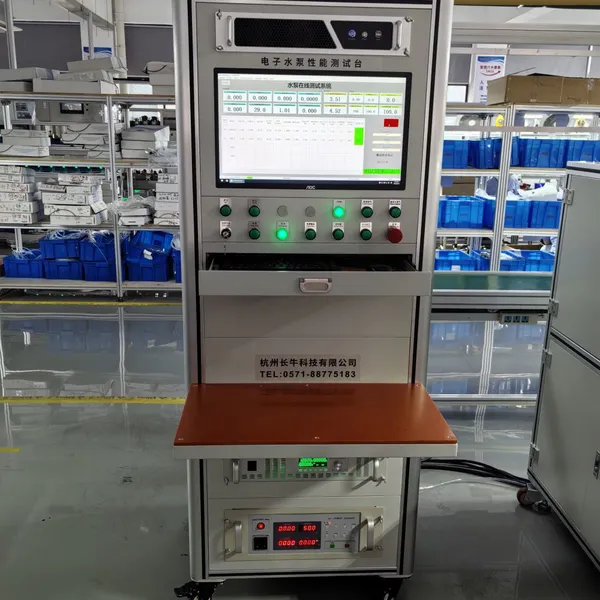

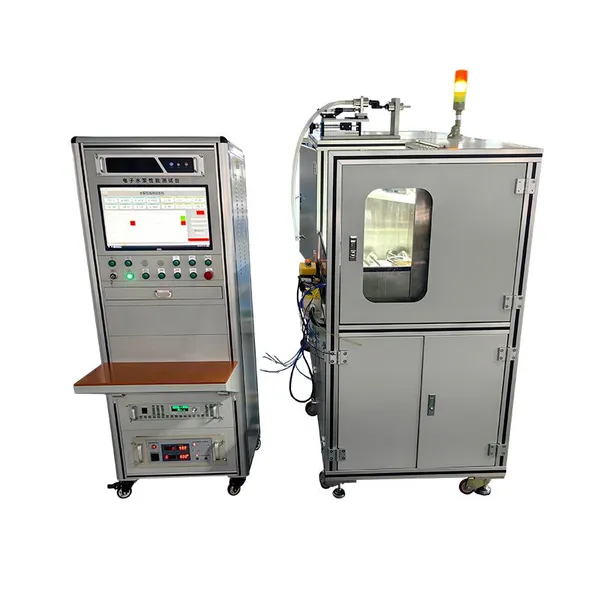

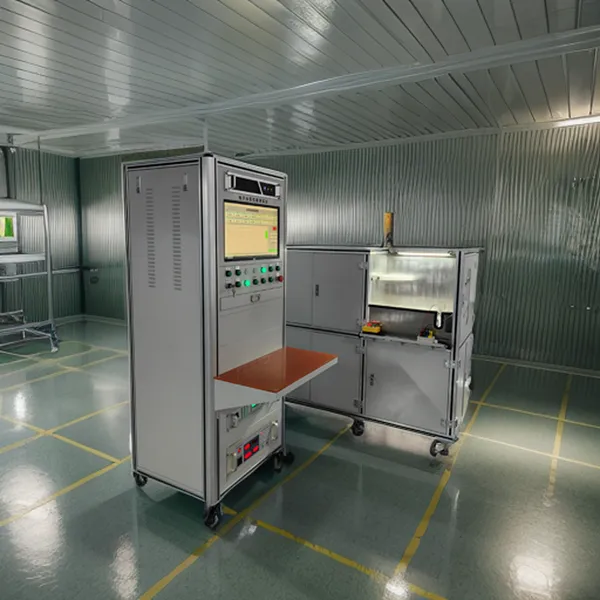

I. Product Overview
The Centrifugal Pump Comprehensive Performance Test Bench has been designed and manufactured in strict accordance with the GB/T 3216 standard for hydraulic performance testing of rotary positive-displacement pumps, and is specifically designed to provide a standardised, high-precision performance testing platform for all types of centrifugal pump products. The equipment is fully compatible with general-purpose pump products such as horizontal centrifugal pumps, vertical centrifugal pumps, in-line centrifugal pumps, stainless steel centrifugal pumps, multistage centrifugal pumps and clean water centrifugal pumps. It serves as a core piece of specialised equipment for pump manufacturers in new product R&D, type testing, factory quality inspection and batch consistency verification.

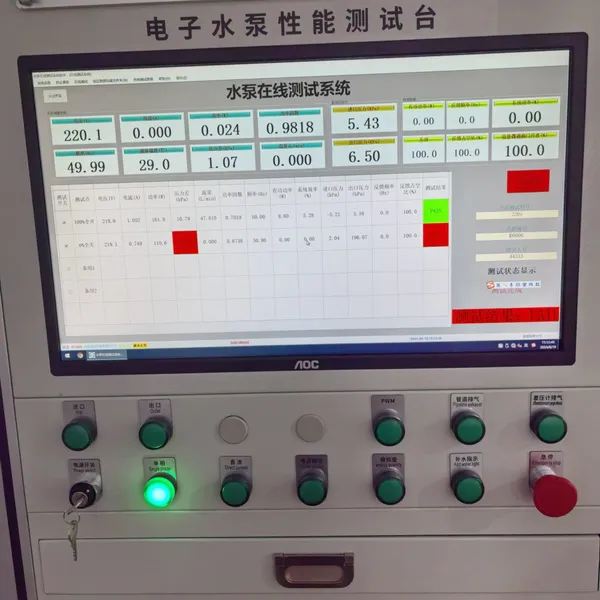

The equipment utilises a closed-loop, pressure-stabilised piping system, coupled with high-precision data acquisition systems for pressure, flow rate, temperature, torque and speed. Combined with fully automatic closed-loop control via an industrial PC and PLC, it comprehensively covers all test items for centrifugal pumps, including hydraulic performance, mechanical performance, electrical performance, efficiency characteristics, cavitation characteristics and temperature rise endurance. The system supports automatic operating condition sweeps, real-time data acquisition, automatic generation of performance curves, storage of test data and report export. It offers high testing accuracy and excellent repeatability, meeting the requirements of scientific research and calibration, third-party certification, and quality inspection for mass production in factories.
II. Core Test Items
1. Full-range hydraulic performance testing
Precise measurement of inlet and outlet pressure, head, real-time flow rate, pressure differential and pipework losses for centrifugal pumps; completes full-range flow rate sweeps from 0% to 120%, automatically plotting Q-H flow-head curves, Q-P shaft power curves and Q-η efficiency curves, accurately replicating the actual operating characteristics of centrifugal pumps within pipeline networks.
2. Cavitation performance testing (NPSH)
Supports testing of the necessary net positive suction head (NPSH) and critical NPSH for centrifugal pumps; simulates negative-pressure suction conditions to assess the pump’s cavitation resistance; determines the operational stability of centrifugal pumps under low-liquid-level and negative-pressure conditions; and addresses industry pain points such as dry running, cavitation-induced noise and unstable water delivery.
3. Electrical and Power Efficiency Testing
Tests the motor’s input voltage, current, input power, power factor and shaft output power; Accurately calculates the pump’s volumetric efficiency, mechanical efficiency and overall efficiency, comprehensively determining the energy efficiency rating of centrifugal pumps, and supporting energy-saving certification and energy efficiency benchmarking tests.
4. Speed and Dynamic Performance Testing
Measures rated speed, speed fluctuations under varying loads, dynamic start-stop response and operational stability under full load; captures data on instantaneous pressure and flow rate transients during operating condition changes to verify the consistency of the centrifugal pump’s dynamic output and control stability.
5. Temperature Rise and Durability/Reliability Testing
Capable of prolonged endurance operation under full-load and variable-load cycles; monitors temperature rise changes in the pump body, motor and medium in real time to verify the centrifugal pump’s stability during continuous operation and fatigue reliability, providing data support for product lifespan optimisation and quality enhancement.
III. Core Advantages of the Equipment
1. National Standard-grade testing accuracy, meeting certification submission requirements
The complete set of data acquisition modules utilises high-precision industrial-grade sensors, ensuring high sampling synchronisation, minimal error and stable data. Test results fully comply with the Grade 1 test accuracy requirements of GB/T 3216 and can be directly used for third-party type testing, energy efficiency certification and product submission for record-keeping.
2. Closed-loop, pressure-stabilised circulation piping for more stable test conditions
The entire unit employs a closed-loop water circulation system, combined with a pressure stabilising tank, precision filtration, air-bleeding mechanisms and constant-pressure regulation components. This effectively eliminates issues such as air bubbles in the piping, pressure fluctuations and flow disturbances, ensuring a high degree of consistency in test data under both high and low flow conditions.
3. Fully automated ‘one-button’ testing, suitable for mass production assembly lines
The system supports fully automated operating condition scanning, automatic pressure and flow adjustment, automatic data recording, automatic curve fitting and automatic pass/fail determination. This significantly reduces manual intervention, ensuring fast testing speeds and low error rates, making it suitable for full inspection of large batches of products prior to factory dispatch.
4. High versatility, compatible with all types of centrifugal pumps
The modular test fixture design, combined with quick-connect fittings in multiple sizes, allows for rapid adaptation to centrifugal pumps of various configurations—including vertical, horizontal, in-line, multistage and stainless steel models. It is compatible with the full range of products, covering high-flow, high-head and standard operating conditions, ensuring a high rate of equipment reusability.
5. Dual static and dynamic testing modes, covering both R&D and quality control
The system supports static pressure endurance and pressure retention tests, as well as dynamic variable-condition simulation tests. It not only meets the requirements for rapid factory exit inspections but also fulfils advanced R&D needs such as precise calibration, curve optimisation and fault analysis.
6. Multi-layered safety protection for long-term, stable operation in the workshop
The equipment is fitted with overpressure relief, overload protection, low-water protection, over-temperature shutdown, emergency stop interlock and audible and visual alarm functions; high- and low-voltage circuits are separated and shielded, with the entire unit properly earthed, making it suitable for 7×24-hour continuous testing conditions.
V. Scope of Application
Widely applicable to manufacturers of pumps such as clean water centrifugal pumps, in-line centrifugal pumps, horizontal centrifugal pumps, vertical centrifugal pumps, multistage booster centrifugal pumps and industrial circulation centrifugal pumps, as well as R&D laboratories, quality inspection bodies and third-party testing centres. Primarily used for performance calibration during new product development, energy efficiency rating testing, cavitation performance verification, factory batch testing, batch quality analysis, and reliability and durability testing.
VII. After-sales and Warranty Services
We support customisation of non-standard flow rate, pressure and power ranges, as well as special testing functions; we provide on-site installation and commissioning, equipment operation training, and maintenance guidance. A complete set of technical documentation, in both hard copy and electronic formats (including user manuals, electrical schematics, piping diagrams and spare parts lists), is provided upon delivery. The entire unit is covered by a one-year warranty, with lifetime technical support and paid repair services available. We offer rapid response to faults to ensure the continuous and stable operation of production lines.
