Product Description:
1. As this product contains software and related materials, improper operations during user testing may damage the chip. Therefore, 7-day no-reason return and exchange services are not available. Once payment is completed and goods are shipped, it shall be deemed that the customer has agreed to these terms.
2. All offline LIN message transceiving modules undergo full inspection before delivery and are free from inherent quality defects. Returns and refunds based on claimed quality issues will not be accepted; only maintenance service is provided without return or replacement.
Features of LINTest-KEY2 16Group:
1. Supports master device transmission and reception of LIN bus data.

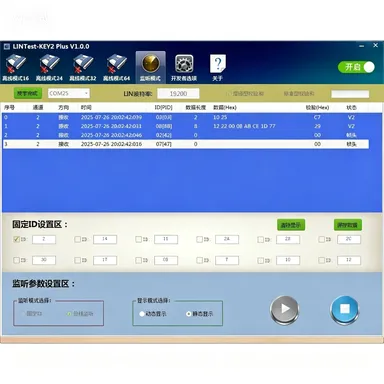

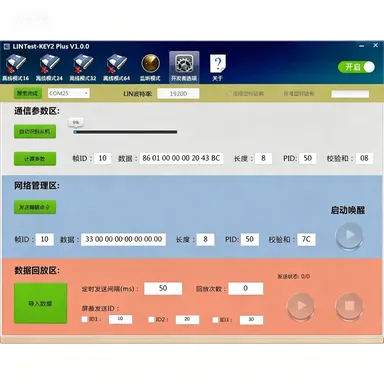

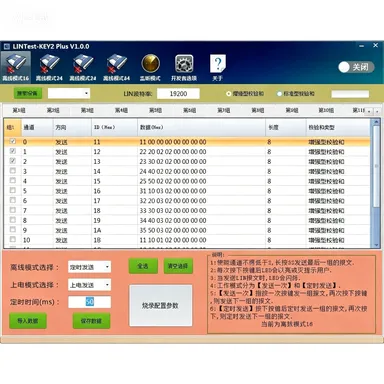

2. Equipped with offline transmission function: messages can be programmed via upper computer software (16 messages form one group, with a total of 16 groups). Press and hold the button for 3 seconds to transmit the last group of messages.
3. LIN baud rate range: 4800 bps to 20000 bps; 19200 bps is the commonly used rate.
4. 12V power input; operating current is below 0.05A under normal working conditions.
5. Compatible with LIN 1.X and LIN 2.X protocols.
6. Two offline working modes are available: One-Time Transmission and Timed Cyclic Transmission.
One-Time Transmission: Press the button once to send one group of LIN messages.
Timed Cyclic Transmission: Press the button to trigger cyclic timed transmission of one group of LIN messages.
Packing List:

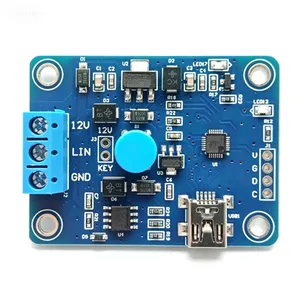

1. One offline LIN message transceiving module
2. LINTest-KEY2 16Group upper computer software and PDF version of LINTest-KEY2 16Group User Manual (please contact customer service to obtain these documents after confirming receipt of goods)
