Product Description:
1. Since this product incorporates software and supporting documents, improper operation during user testing may result in chip damage. Therefore, the 7-day no-reason return service and exchange requests are not available. Once payment is completed and goods are shipped, it shall be deemed that the customer has agreed to these terms.
2. All offline LIN message transceiving modules undergo full inspection before delivery and are free from manufacturing defects. Returns and refunds on the grounds of quality issues will not be accepted; only maintenance services are provided without returns or replacements.

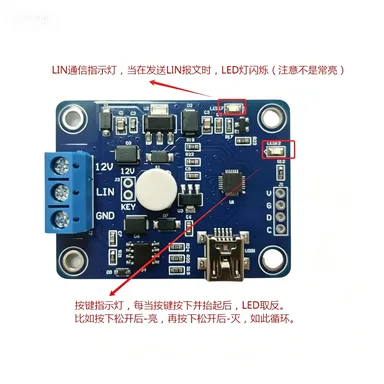

Product Features of LINTest-KEY2:
1. Supports host computer sending and receiving of LIN bus data.
2. Offline transmission is available: messages can be programmed via the upper computer (maximum 256 messages in total); long-press for 3 seconds to transmit the last programmed message.
3. LIN baud rate range: 4800 bps to 20000 bps; 19200 bps is the commonly used rate.
4. 12V power input; operating current is below 0.05A under normal working conditions.
5. Compliant with LIN 1.X and LIN 2.X protocols.
6. Two offline transmission modes are available: Single Transmission and Timed Transmission.
Single Transmission: Press the button to send one frame of message.
Timed Transmission: Press the button to trigger cyclic timed message transmission.
Packing List:
1. One offline LIN message transceiving module.

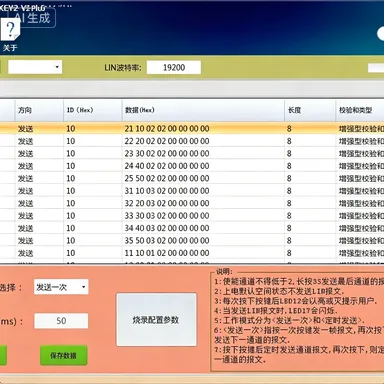

2. LINTest-KEY2 upper computer software and PDF version of LINTest-KEY2 User Manual (please contact customer service to obtain these files after confirming receipt of goods).
