Product Description:
As this product includes software and related documents, it is not eligible for the 7-day no-reason return policy nor exchange services. Once payment is completed and the goods are dispatched, it shall be deemed that the customer has agreed to these terms.
Instructions for LINTest-MU Development Board:

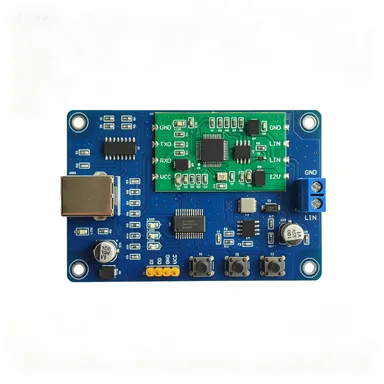

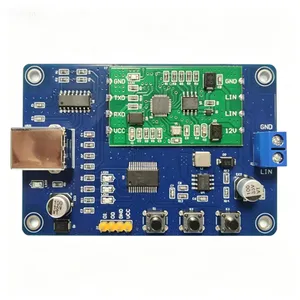

1. The development board adopts a 51-series microcontroller (MCU) with the model CBM7320FP1A in SSOP-28 package.
2. The board is equipped with 3 LEDs for debugging indication purposes.
3. There are 3 physical buttons on the board with default factory functions: Button S1: Host sends one frame of data; Button S2: Host reads data from slave devices; Button S3: Reserved for future use.
4. The board is pre-programmed with host-mode firmware before delivery, allowing users to test its functions directly upon receipt.
5. Driver routines for STM32 and 51 MCUs are provided. Users can port these routines to other MCUs to transmit or receive LIN data from slave devices.
Application Scenarios of LINTest-MU Development Board:
1. Aging tests and reliability tests for LIN slave device development.
2. Production test fixtures for LIN slave products.
3. Rapid development of LIN master or slave equipment. There is no need to learn the ISO-LIN communication standard; various LIN devices can be developed effortlessly via simple serial port communication.
Packing List:
1. 1 × LINTest-MU Development Board (USB cable not included).
2. Free complimentary materials: LIN 2.2 standard protocol documents, UI serial port upper computer software, STM32 and 51 MCU driver routines, and AD schematic packages for the LINTest-MU module (please contact customer service or technical support to obtain these materials after placing and paying for your order).
