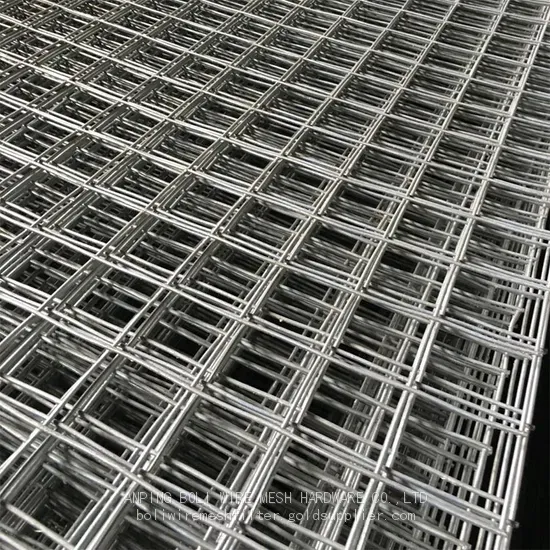

As a leading manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory proudly presents our premium Weld Mesh Screen 316 Stainless 1.0mm Wire 4mm Aperture 1220x2440mm Sheet. This high-quality welded mesh panel is engineered to deliver exceptional strength, corrosion resistance, and dimensional stability in demanding industrial applications. With a wire diameter of 1.0 mm and a precise 4 mm aperture, our mesh offers an optimal balance of open area and structural integrity. Whether you need reliable filtration, robust security screening, or durable partitioning, this 316 stainless steel sheet is a versatile solution trusted by clients across North America, Europe, Southeast Asia, and beyond.
Key Features & Technical Specifications
- Material: Grade 316 stainless steel – superior resistance to chloride corrosion, acids, and high temperatures compared to 304. Ideal for marine, chemical, and food processing environments.
- Wire Diameter: 1.0 mm (0.039 inch) – provides a sturdy yet flexible mesh that withstands impact and pressure.
- Aperture: 4 mm × 4 mm square openings – allows excellent flow of liquids, air, or fine particles while blocking larger debris.
- Sheet Dimensions: 1220 mm × 2440 mm (4 ft × 8 ft) – standard size for easy installation in frames, panels, or custom cut-to-size projects.
- Welding Process: Precision resistance welding at every intersection ensures uniform spacing and eliminates weak points. No loose wires or gaps.
- Surface Finish: Mill finish as standard. Optional electro-polishing, passivation, or PVC coating available upon request for enhanced aesthetics or extra protection.
- Customization: We can produce any size, wire diameter, and aperture according to your specifications. Minimum order quantity flexible.
| Parameter | Value |
|---|---|
| Material Grade | 316 Stainless Steel (UNS S31600) |
| Wire Diameter Tolerance | ±0.03 mm |
| Aperture Tolerance | ±0.1 mm |
| Open Area Percentage | Approx. 64% |
| Weight per Sheet | Approx. 8.5 kg (varies with finish) |
| Max Working Temperature | Up to 800°C (continuous) in non-corrosive atmosphere |
Advantages & Customer Benefits
- Long Service Life: 316 stainless steel resists pitting, crevice corrosion, and stress cracking, even in harsh environments such as seawater or chemical plants. This means fewer replacements and lower maintenance costs.
- High Flow Efficiency: The 4 mm aperture combined with 64% open area ensures minimal pressure drop in filtration or ventilation systems, improving overall system performance.
- Structural Integrity: Each wire intersection is welded, creating a rigid panel that does not unravel or deform under normal loads. Ideal for use as security screens, animal enclosures, or machine guards.
- Versatile Applications: Suitable for mining, quarrying, food processing, pharmaceutical, architectural facades, speaker grilles, battery separators, and many more industries.
- Easy to Fabricate: The sheet can be cut, bent, welded, or framed using standard tools. We also offer pre-cut panels and custom shapes to save you time.
- Consistent Quality: Our factory uses automated welding machines and stringent quality control to ensure every sheet meets your specifications. We have exported over US$5 million annually to global markets, reflecting our reliability.
Trust & Reliability
With over 25 years of manufacturing experience, Anping County Boli Hardware Wiremesh Products Factory has established a strong reputation as a trusted supplier of wire mesh products worldwide. Our annual export value of US$5–10 million demonstrates our capacity to handle large orders while maintaining consistent quality. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring fast and cost-effective logistics to destinations in North America, South America, Europe, Africa, Oceania, Asia, and the Middle East. We are committed to providing competitive pricing, reliable lead times, and responsive customer service. Choose our 316 stainless weld mesh screen for your next project – experience the difference that decades of expertise can make. Contact us today for a quote or to discuss your custom requirements.
Frequently Asked Questions (FAQ)
1. What is the difference between 316 and 304 stainless steel mesh?
316 contains molybdenum, giving it much better resistance to chlorides (e.g., saltwater, bleach) and acids. It is recommended for marine, food processing, and chemical environments where 304 may corrode.
2. Can this mesh be used for outdoor applications?
Yes, 316 stainless steel is highly resistant to rust and UV degradation, making it suitable for outdoor use such as balcony screens, garden fencing, and architectural cladding.
3. Is the mesh supplied as a flat sheet or rolled?
This product is a rigid flat sheet measuring 1220x2440mm. For other sizes or rolled forms, please inquire about custom options.
4. What is the maximum temperature this mesh can withstand?
In continuous service, 316 stainless can handle up to 800°C (1472°F) in non-corrosive environments. However, for high-temperature oxidation, consider 310 or 330 grades.
5. Can you cut the sheet to smaller sizes?
Yes, we offer custom cutting services. Please provide your required dimensions when ordering. We can also punch holes, bend edges, or weld frames.
6. How do you ensure the mesh openings are consistent?
We use automated welding jigs and optical inspection systems to check aperture and wire alignment. Each sheet is visually inspected before packing.
7. What packaging do you use for export?
Standard export packaging: each sheet is interleaved with protective material, then bundled on wooden pallets with steel straps. For small quantities, we use cardboard boxes with foam padding.
8. Do you have stock for this 1220x2440mm size?
We maintain regular inventory of popular sizes. For large quantities, please allow 15–20 working days for production. Contact us for current stock status.
