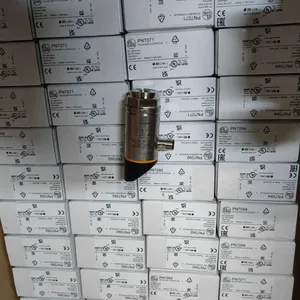

ifm PN7093 Pressure & Vacuum Sensor — Full Selling Points
1. Core Measurement Performance
Dual-purpose sensor for pressure and vacuum monitoring; measuring range 0…25 bar, capable of detecting vacuum down to -1000 mbar.
High measuring accuracy of ±0.25% full scale, ultra-fast response time less than 3ms to capture pressure fluctuations instantly.
4-digit digital display with red/green dual-color backlight; switchable pressure units: bar, MPa, PSI for easy reading.
2. Intelligent Electrical Output & IO-Link Function
Equipped with IO-Link 1.1 communication interface plus two independent programmable switching outputs.
Switch outputs support flexible configuration of PNP/NPN, normally open / normally closed modes; customizable parameters include hysteresis mode, window mode, signal damping and switch delay.
IO-Link enables remote batch parameter copying and real-time equipment fault diagnosis, ideal for digital automated production lines.
Wide operating supply voltage: 18~30V DC, conforming to industrial SELV safety low voltage standard.
Standard M12 5-pin connector, widely compatible with common industrial connecting cables.
3. Robust Mechanical Industrial Design
G1/4 internal thread process connection; rotatable display head (360° rotation) for convenient reading under any installation angle.
Media contact surface made of 1.4404 stainless steel with FKM fluororubber, oil-resistant and corrosion-resistant for various industrial fluids.
IP67 high protection grade, shockproof and vibration-resistant, stable operation in harsh working conditions such as machine tools and hydraulic stations.
150 bar overpressure resistance, burst pressure up to 350 bar, effectively avoiding damage caused by instantaneous pipeline pressure spikes.
4. Application & Compliance Advantages
Universal for most industrial scenarios: air compressors, hydraulic lubrication systems, pneumatic pipelines, robotic vacuum suction cups and other automated equipment.
Standard non-customized model, sufficient stock and fast delivery.
Certified with CE, cULus and UKCA international industrial certifications, applicable to automation equipment at home and abroad.
Concise Short Selling Points (for quotation & product listing)
All-in-one sensor for pressure and vacuum detection
IO-Link communication + dual independent switching outputs
Dual-color digital display with high precision measurement
IP67 heavy-duty protection, high pressure & corrosion resistance
Standard stock item with global industrial certifications, widely compatible with automated production lines
