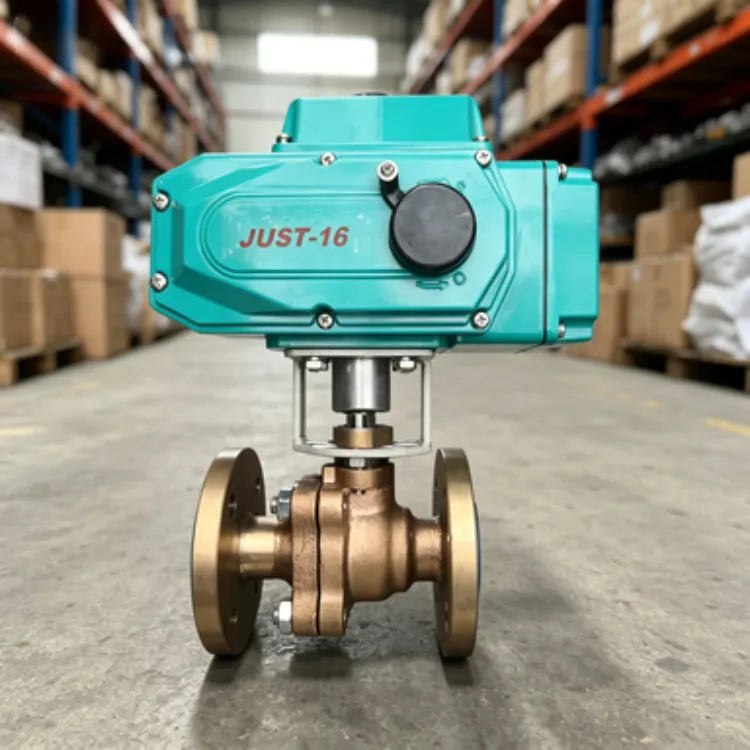

Shanghai Zhibang Valve Manufacture Co., Ltd., an ISO9001-certified manufacturer established in 2016, specializes in high-performance marine valves. Our CB/T4480 Marine Bronze Electric Ball Valve is designed for on-off control applications on cargo ships, fishing vessels, and other marine platforms. Combining robust bronze construction with reliable electric actuation, this valve ensures precise flow control, corrosion resistance, and long service life in harsh marine environments. With an annual export value of US$1–1.5 million, we serve global markets including North America, Europe, Southeast Asia, and the Middle East. Our commitment to quality and customer satisfaction makes this valve a trusted choice for shipbuilders, fleet operators, and marine engineers.
This electric ball valve fully complies with the CB/T4480 marine standard, guaranteeing dimensional consistency and interchangeability. It features a full-bore design for minimal pressure drop and smooth flow, and the electric actuator provides quick, reliable on-off control with manual override capability. The valve body is made of high-strength bronze (e.g., tin bronze or aluminum bronze) that resists corrosion from seawater, oil, and other marine fluids. The trunnion-mounted ball and PTFE seats ensure tight sealing even under low pressure, while the actuator is IP65/IP67 rated for protection against water and dust ingress.
Key Features & Technical Specifications
- Material: Bronze (marine grade, optional stainless steel trim)
- Standard: CB/T4480 (China Classification Society recognized)
- Size Range: DN15–DN200 (1/2" to 8") or as per customer requirement
- Pressure Rating: PN10/PN16/PN25 (available upon request)
- Connection: Flanged (GB/T2506, JB/T79) or threaded (BSP/NPT) – optional
- Electric Actuator: On-Off type, 90° rotation, manual override; voltage options: DC24V, AC220V, AC380V, 50/60Hz
- Protection Grade: IP65 standard, IP67 optional
- Working Temperature: -20°C to +80°C (standard), optional high-temp version up to 150°C
- Sealing: PTFE or reinforced PTFE; double block and bleed design available
- Operation: Electric on-off control, can be integrated with DCS/PLC systems
| Parameter | Value |
|---|---|
| Valve Standard | CB/T4480 |
| Body Material | Bronze (ZCuSn10Zn2, ZCuAl10Fe3, etc.) |
| Ball Material | Bronze with hard chrome plating or stainless steel (optional) |
| Seat Material | PTFE, RPTFE, or PEEK (optional) |
| Actuator Type | Electric, on-off, 90° rotation, manual override |
| Voltage (Available) | DC24V, AC110V, AC220V, AC380V, 50/60Hz |
| Protection Class | IP65 (standard), IP67 (optional) |
| Application | Cargo ship, fishing vessel, offshore platform, marine piping |
Advantages & Customer Benefits
- Corrosion Resistance: Bronze material withstands seawater, salt spray, and marine chemicals, reducing maintenance costs.
- Reliable Leakage Protection: Double sealing system ensures bubble-tight shut-off, preventing fluid loss and contamination.
- Easy Installation: Compact design, multiple connection options (flanged, threaded) fit existing piping systems.
- Flexible Control: Electric actuator accepts remote signals, enabling automated valve management from the bridge or control room.
- Manual Override: In case of power failure, the manual lever allows emergency operation, enhancing safety.
- Long Service Life: All components are tested for durability; the valve undergoes 100% factory pressure and leak tests.
- Customization: Voltage, protection grade, connection type, and special materials are available upon request to meet specific vessel requirements.
Our CB/T4480 Marine Bronze Electric Ball Valve has been widely adopted by shipyards and fleet operators worldwide. The valve is supplied with a comprehensive test certificate and warranty. Each unit is individually inspected to ensure compliance with marine standards. With our ISO9001 quality management system, consistent product quality is guaranteed. We have been serving the marine industry since 2016, exporting over US$1 million annually to markets including North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, East Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and the domestic market. Our flexible shipping options from Shanghai, Guangzhou, Hong Kong, and Beijing ports ensure timely delivery. We invite you to contact us for a quotation or technical consultation – our experienced team is ready to support your vessel's valve needs.
Frequently Asked Questions (FAQ)
-
Q: What is the standard for this valve?
A: The valve is manufactured according to Chinese marine standard CB/T4480, which is widely recognized by classification societies for marine applications. -
Q: Can I use this valve for seawater?
A: Yes, the bronze body and corrosion-resistant seats are specifically designed for seawater, making it ideal for ballast, cooling, and fire-fighting systems on ships. -
Q: What voltage options are available for the electric actuator?
A: We offer DC24V, AC110V, AC220V, and AC380V (50/60Hz). Other voltages can be customized upon request. -
Q: Is the valve suitable for explosion-proof environments?
A: The standard actuator is not explosion-proof, but we can provide an explosion-proof actuator (Ex-d) as an option. Please specify your requirements. -
Q: What is the typical lead time?
A: For standard sizes and configurations, lead time is 15–25 working days. Custom orders may require 30–40 days depending on specifications. -
Q: Do you provide installation and operation manuals?
A: Yes, each valve includes a detailed manual in English covering installation, wiring, operation, and maintenance procedures. -
Q: Can I get a sample before bulk order?
A: Yes, we accept sample orders for evaluation. Sample cost and freight will be discussed. We also provide technical drawings and certification documents. -
Q: What is the warranty period?
A: Our standard warranty is 12 months from the date of shipment against material and workmanship defects. Extended warranty is available upon negotiation.
