Two-Stage Crusher
The Two-Stage Crusher, also known as a Double Rotor Hammer Crusher, is an advanced crushing machine designed to combine primary and secondary crushing into a single pass. It integrates two rotors operating in series, allowing material to be crushed twice consecutively without the need for intermediate handling. Its most distinctive feature is the absence of a grate bar (screen mesh) at the discharge opening, which makes it exceptionally effective for processing wet, sticky, or high-moisture materials without clogging.
Working Principle
The machine operates on a continuous two-step impact process:
-
First Stage Crushing: Raw material enters the upper crushing chamber where it is struck by the hammers of the first rotor.
-
Second Stage Crushing: The coarsely crushed material immediately falls into the lower chamber. Here, the second rotor (operating at a higher speed) delivers a secondary, high-intensity impact.
-
Discharge: Due to the lack of a screen, particles are discharged freely based on their size, typically achieving a fine output below 3mm.
Key Advantages
-
Anti-Clogging Design: The grate-free design ensures smooth operation even when processing materials with moisture content exceeding 15%.
-
High Efficiency: Two rotors working in tandem provide high reduction ratios and uniform particle size in a single pass.
-
Cost-Effective: Features a shift-gap adjustment technology; worn hammerheads can be repositioned rather than replaced immediately, significantly extending service life and reducing spare parts costs.
-

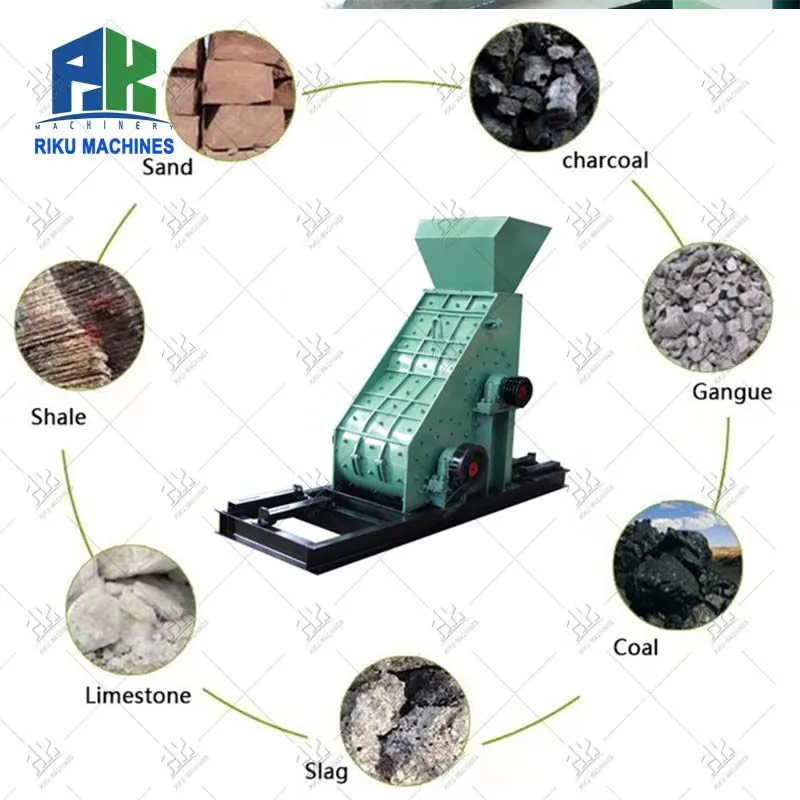

Versatile Application: Suitable for brittle materials such as coal gangue, shale, slag, construction waste (bricks/concrete), and limestone.
-
Technical parameters
Model |
Max Input Size(mm) |
Output Size (changeable) (mm) |
Capacity (t/h) |
Motor Power (kw) |
Total Weight (t) |
600*400 |
≤100 |
≤3 |
15-25 |
18.5+18.5 |
1.2 |
600*600 |
≤180 |
≤3 |
25-35 |
22+22 |
1.9 |
800*600 |
≤270 |
≤3 |
45-55 |
45+37 |
3.7 |
800*800 |
≤300 |
≤3 |
55-65 |
55+55 |
5.8 |
1000*800 |
≤360 |
≤3 |
60-80 |
75+55 |
6.7 |
1000*1000 |
≤400 |
≤3 |
80-100 |
75+90 |
8.5 |
1200*1000 |
≤500 |
≤3 |
100-130 |
110+90 |
13 |
1200*1200 |
≤550 |
≤3 |
130-160 |
132+110 |
16.5 |
1400*1200 |
≤630 |
≤3 |
160-180 |
132+132 |
21 |
1600*1400 |
≤700 |
≤3 |
200-260 |
160+160 |
30 |
