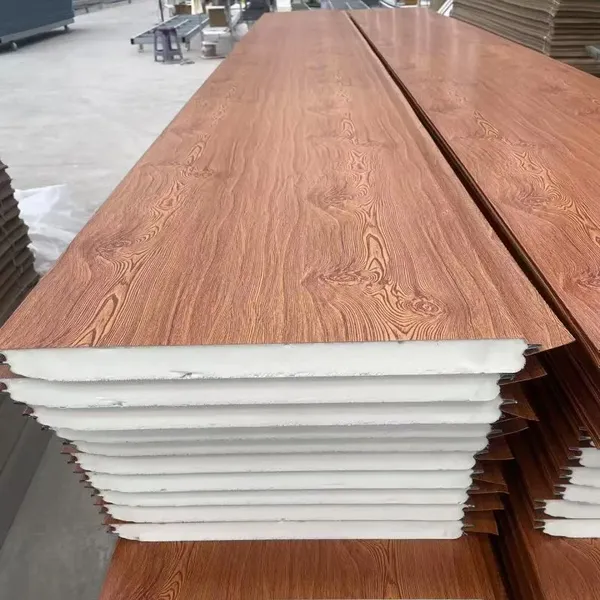

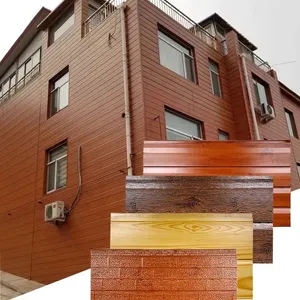

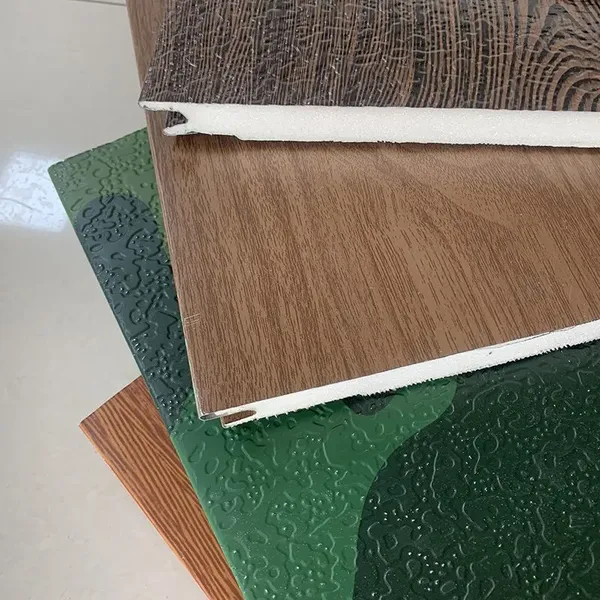

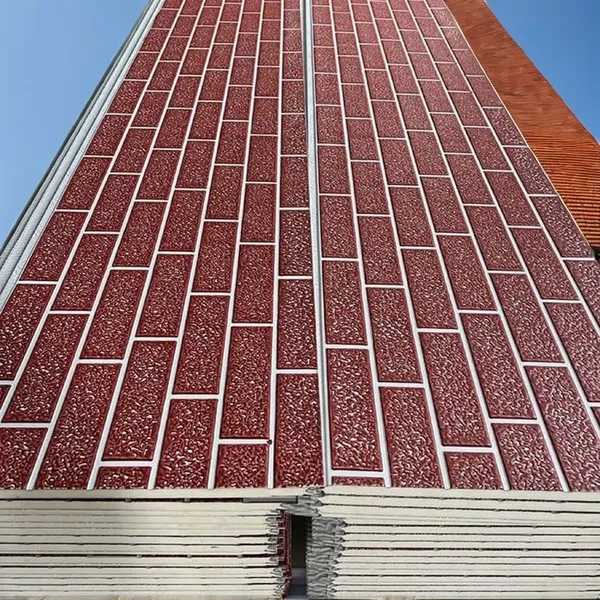

Help CenterPVDF Coated Aluminum Metal Siding Panels With Hidden Fastener System
Product Spotlights
Related Products
-
15-Year Warranty Exterior Wall Metal Siding With Mill Test ReportNegotiableMOQ: 100 Square Meters -
Hot Rolled Carbon Steel Coil SAE1006 SAE1008 ASTM A36 1.5-6mm for Pipe ManufacturingNegotiableMOQ: 1 Ton
-
Hot Rolled Carbon Steel Coil ASTM A36 Q235B 2-3mm 1500-2000mm for Bending and WeldingNegotiableMOQ: 1 Ton
-
Hot Rolled Carbon Steel Coil ASTM A572 Gr50 4-12mm for Bridge ConstructionNegotiableMOQ: 1 Ton
-
HRC Hot Rolled Coil S235JR S355JR ST37-2 ST52-3 2-12mm for Structural SteelNegotiableMOQ: 1 Ton
Hemaokang Steel (Shandong) Co., Ltd., established in 2025 with an annual export value of US$50-100 million, is proud to present our premium PVDF Coated Aluminum Metal Siding Panels with Hidden Fastener System. These panels are engineered to deliver exceptional durability, aesthetic appeal, and ease of installation, making them an ideal choice for modern architectural projects. Our factory in Liaocheng, Shandong, China, employs advanced production technology and rigorous quality control to ensure every panel meets the highest standards.
The core advantage of our siding panels lies in the PVDF coating – a high-performance fluoropolymer finish that provides outstanding resistance to UV radiation, corrosion, and harsh weather conditions. Combined with the hidden fastener system, the panels create a seamless, clean exterior surface without visible screws or clips, enhancing the building's visual appeal and reducing maintenance needs. Whether you are constructing a commercial complex, residential villa, or industrial facility, these panels offer a long-lasting, cost-effective cladding solution.
Below we break down the key features, technical specifications, and benefits that make our product a top choice for architects and contractors worldwide.
Key Features & Technical Specifications
- Premium PVDF Coating: Applied via a multi-layer coil coating process, the PVDF finish (typically 70% PVDF resin) ensures excellent color retention, chalk resistance, and chemical durability. It withstands extreme temperatures from -40°C to +120°C.
- Hidden Fastener System: Our proprietary concealed clip design allows panels to interlock securely without exposed fasteners. This eliminates thermal bridging, prevents water infiltration, and provides a sleek, uninterrupted facade.
- High-Strength Aluminum Substrate: Made from 3003 or 5005 series aluminum alloy, the panels offer high tensile strength (up to 200 MPa) while remaining lightweight (approx. 2.5-5 kg/m² depending on thickness), reducing structural load.
- Customizable Dimensions: Available in thicknesses from 0.5mm to 1.2mm, widths from 100mm to 400mm, and lengths up to 6000mm. Custom sizes are available upon request to fit specific project requirements.

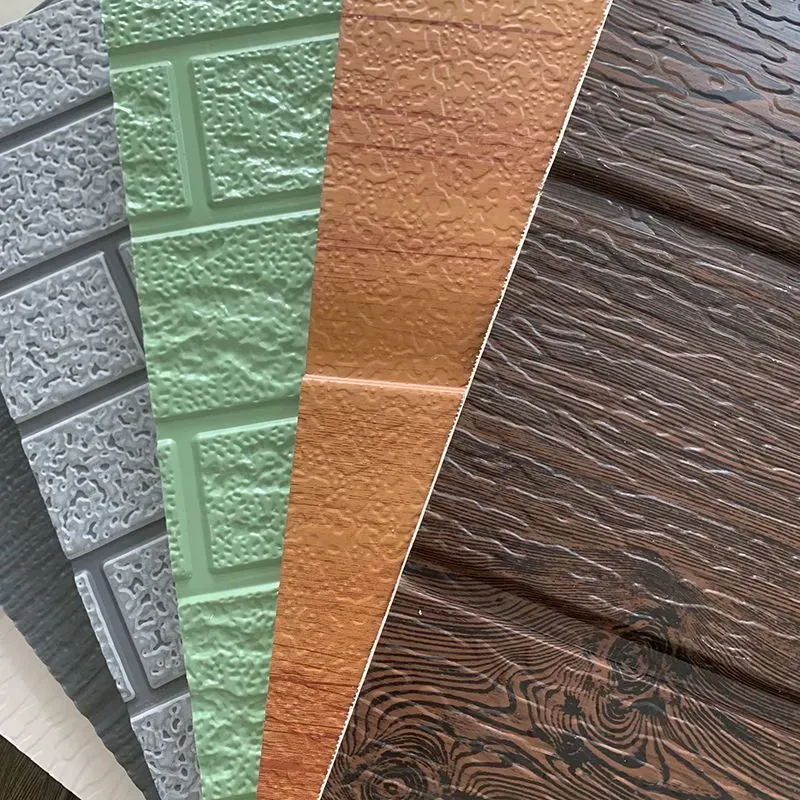

- Wide Color Range: Over 200 RAL colors and metallic finishes are available, including standard shades like white, gray, beige, and custom colors to match any architectural design.
- Easy Installation & Maintenance: The interlocking design enables quick assembly with minimal tools. The non-porous PVDF surface resists dirt, fungus, and stains, requiring only occasional water washing to maintain its appearance.
- Fire Resistance & Environmentally Friendly: Aluminum is inherently non-combustible (Class A fire rating) and 100% recyclable. The PVDF coating is free from harmful solvents, meeting global environmental standards.
Technical Parameters (Typical Values)
| Parameter | Value |
|---|---|
| Coating Thickness | 25-35 μm (PVDF) |
| Tensile Strength | 200-240 MPa (depending on alloy) |
| Elongation | ≥ 5% |
| Color Retention | Excellent (5-10% change after 20 years) |
| Salt Spray Resistance | > 3000 hours (ASTM B117) |
| Wind Load Capacity | Up to 2.4 kPa (depending on span) |
| Thermal Expansion | 23.5 × 10⁻⁶ /°C (linear) |
| Weight (per m²) | 2.5 – 5 kg (for 0.5-1.2mm thickness) |
Benefits for Your Project
- Long Lifespan: The combination of aluminum and PVDF coating ensures a service life of 30+ years with minimal fading or chalking, reducing replacement costs.
- Enhanced Aesthetics: The hidden fastener system creates a smooth, modern appearance that elevates the architectural value of any building. No visible screw heads means a cleaner finish.
- Faster Installation: Our interlocking panels can be installed up to 30% faster than traditional exposed-fastener systems, saving labor and project time.
- Weather Resistance: The system is engineered to withstand heavy rain, snow, wind, and UV exposure. The concealed clips allow for thermal movement without warping.
- Low Maintenance: The non-stick PVDF surface prevents dirt buildup; occasional rinsing with water is sufficient to restore the original shine.
- Eco-Friendly Choice: Aluminum is infinitely recyclable, and the PVDF coating is free of heavy metals. Our panels contribute to LEED certification points for green building projects.
Frequently Asked Questions (FAQ)
-
Q: What colors are available for the PVDF coated aluminum siding panels?
A: We offer a wide spectrum of RAL colors, including standard whites, grays, beiges, and custom metallic shades. Please contact our sales team with your color requirements, and we can match any reference. -
Q: How is the hidden fastener system installed?
A: The system uses specially designed clips that are first attached to the building structure. The panels then interlock onto these clips, with the fasteners concealed beneath the overlapping panel edge. Detailed installation guidelines and video tutorials are provided upon purchase. -
Q: Can these panels be used in coastal areas with high salt exposure?
A: Yes. The PVDF coating provides excellent corrosion resistance, and the aluminum substrate is inherently resistant to salt spray. We recommend a minimum thickness of 1.0mm for coastal applications to ensure long-term durability. -
Q: What is the typical lead time for orders?
A: For standard sizes and colors, lead time is approximately 15-20 working days. Custom sizes or colors may require 25-30 working days. Rush orders are possible upon request. -
Q: Do you provide samples or small trial orders?
A: Absolutely. We can supply small sample pieces (e.g., 300mm x 300mm) for evaluation. A small fee applies, but it is refundable upon placement of a bulk order. -
Q: What is the warranty period for these siding panels?
A: We offer a standard 20-year warranty on the PVDF coating against peeling, chalking, or color fading under normal conditions. The warranty covers manufacturing defects; please refer to our warranty policy for full terms. -
Q: Are these panels fire-resistant?
A: Yes. Aluminum is a non-combustible material and meets Class A fire rating standards (ASTM E84). Our panels do not contribute to flame spread. -
Q: How do I calculate the quantity needed for my project?
A: Measure the total wall area to be covered and divide by the panel coverage width (including overlap). Our technical team can assist with precise calculations and provide a cutting plan to minimize waste.
Hemaokang Steel (Shandong) Co., Ltd. has been a trusted supplier since 2025, with an annual export value exceeding US$50 million and a dedicated team of 51-100 professionals. Our products are exported to over 15 regions worldwide, including North America, Europe, Southeast Asia, and Oceania. We are ISO9001:2015 certified, ensuring consistent quality and reliable supply chain management. With our advanced manufacturing facility in Liaocheng, Shandong, we can handle large-scale orders with fast turnaround times.
Choosing our PVDF Coated Aluminum Metal Siding Panels with Hidden Fastener System means investing in a product that combines aesthetic excellence, structural integrity, and long-term value. We invite you to contact our sales team for a personalized quote, free samples, or technical support. Let us help you achieve the perfect facade for your next project.
