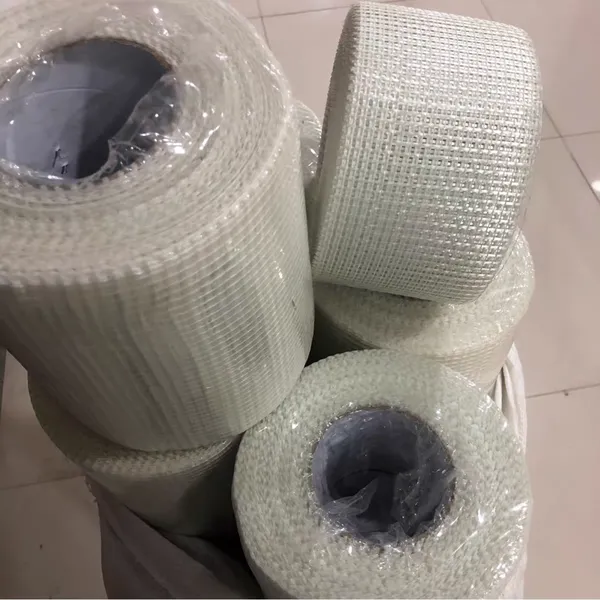

Help CenterFiberglass Mesh 160g/m2 2x2mm Grid Roll Length 50m Heat Resistance 80°C Continuous
Product Spotlights
Related Products
-
Fiberglass Mesh for Exterior Wall Insulation System EIFS 145g/m2 Weight Alkali ResistantNegotiableMOQ: 50 Acres -
Fiberglass Mesh 5x5mm 160g/m2 With 2-Year Warranty and Mill Test Report for ConstructionNegotiableMOQ: 50 Acres
-
Fiberglass Mesh 145g/m2 5x5mm Mesh K90 Cement Board Reinforcement StandardNegotiableMOQ: 50 Acres
-
Fiberglass Mesh 180g/m2 10x10mm Opened Woven Roving for Marble Backing ReinforcementNegotiableMOQ: 50 Acres
-
Fiberglass Mesh 5x5mm Grid 160g/m2 Tensile Strength 1200N/50mm for Wall ReinforcementNegotiableMOQ: 50 Acres
As a professional manufacturer from Anping Xinye Metal Wire Mesh Products Co., Ltd, located in the renowned wire mesh hub of Hengshui, Hebei, China, we present our premium Fiberglass Mesh with a weight of 160g/m², precise 2x2mm grid, and a convenient 50m roll length. This product is engineered to withstand continuous heat exposure up to 80°C, making it a reliable solution for thermal insulation systems, crack prevention, and structural reinforcement. With years of industry experience, we ensure consistent quality, tight tolerances, and excellent durability in every roll.
Our fiberglass mesh is manufactured using high-quality C-glass or E-glass fibers, woven into a stable grid structure and coated with a heat-resistant and alkali-resistant finish (optional). The 160g/m² density offers an optimal balance between strength and flexibility, while the 2x2mm aperture is ideal for embedding in mortar, plaster, or concrete. The 50-meter roll length reduces the need for frequent splicing, saving time and material during installation. Below are the key technical specifications:
| Parameter | Specification |
| Weight | 160 g/m² ±5% |
| Grid Size | 2mm x 2mm (square) |
| Roll Length | 50 meters per roll |
| Roll Width | 1 meter (standard, other widths customizable) |
| Continuous Heat Resistance | 80°C |
| Material | Fiberglass (C-glass / E-glass) |
| Color | Natural white (custom colors available) |
| Coating | Heat-resistant; optional alkali-resistant treatment |
Product Features & Benefits:
- High Density (160g/m²): Provides excellent tensile strength and impact resistance, ensuring long-term stability in wall systems.
- Precise 2x2mm Grid: Perfectly sized for even distribution of stress and flawless bonding with mortar or plaster.
- 50m Roll Length: Minimizes joints and overlaps, reducing material waste and installation labor.
- Heat Resistance up to 80°C Continuous: Suitable for environments with moderate temperature exposure, such as external insulation systems and industrial applications.
- Alkali-Resistant Option: When coated, the mesh resists degradation from alkaline cement, extending the service life of the structure.
- Lightweight and Flexible: Easy to cut, handle, and apply on curved or irregular surfaces.
- Dimensional Stability: Low elongation ensures that the mesh stays in place during and after installation.

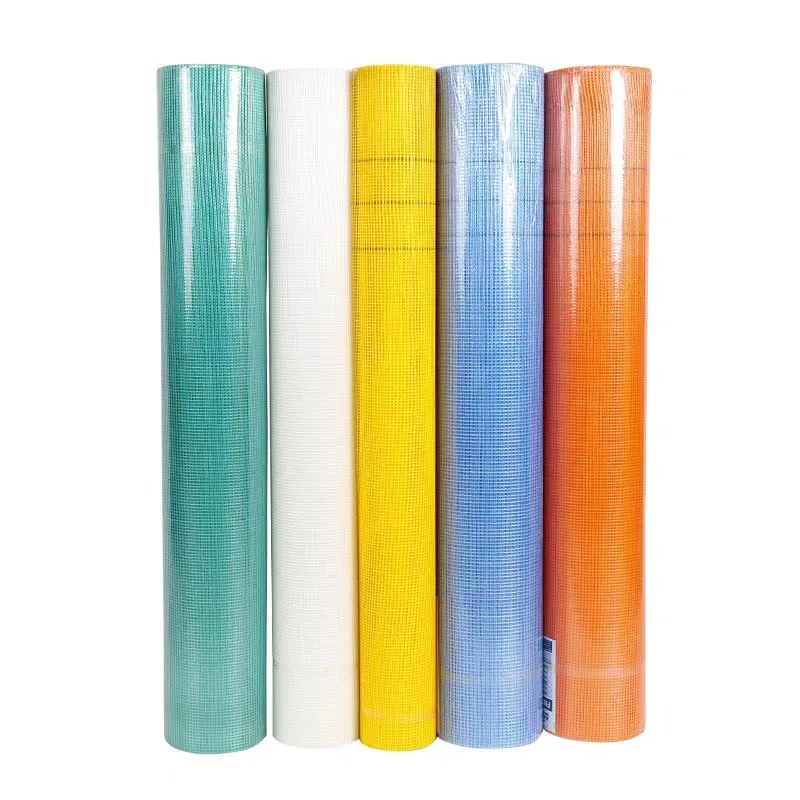

- Customizable Width and Color: Available in different widths (e.g., 1.2m, 1.5m) and colors upon request to meet specific project needs.
Typical Applications:
- External Thermal Insulation Composite Systems (ETICS)
- Reinforcement of plaster, stucco, and cement renders
- Crack prevention in walls and ceilings
- Industrial flooring and waterproofing membranes
- As a base for marble, tiles, and mosaic
Our manufacturing facility in Anping, Hebei, benefits from a mature supply chain and skilled workforce, enabling us to produce fiberglass mesh with consistent quality at competitive prices. We adhere to strict quality control procedures, including weight testing, mesh uniformity inspection, and heat resistance verification. Each roll is carefully packed to prevent damage during transit.
As a trusted supplier based in the wire mesh capital of China, Anping Xinye has served clients across Europe, America, Southeast Asia, and the Middle East. We offer flexible packaging options (e.g., shrink-wrapped, with inner paper tube) and support OEM/ODM orders. Whether you need a small trial order or a container load, we can deliver promptly.
We invite you to experience the quality and reliability of our fiberglass mesh. Contact us today for a quote, sample, or technical consultation. Let us be your reliable partner in construction projects worldwide.
Frequently Asked Questions (FAQ)
- What is the main material of this fiberglass mesh? It is made from high-quality fiberglass yarns (C-glass or E-glass), woven into a stable grid and coated with a heat-resistant finish.
- Is this mesh suitable for external wall insulation systems? Yes, the 160g/m² weight and 2x2mm grid are commonly used in ETICS. The mesh can be treated with an alkali-resistant coating upon request to enhance durability in alkaline environments.
- What is the maximum temperature it can withstand continuously? The mesh is designed for continuous use at 80°C. For short-term exposure, it can tolerate higher temperatures, but we recommend testing under your specific conditions.
- Can I get the mesh in a different width or length? Yes, the standard width is 1m and length is 50m, but we can customize the width (e.g., 0.5m, 1.2m, 1.5m) and roll length (e.g., 100m) based on your requirements. Please contact us for details.
- Is the mesh resistant to alkalis? The standard product has a heat-resistant coating. If you need alkali resistance, we can apply a special coating – please specify when ordering.
- How is the mesh packaged for shipping? Each roll is wrapped in shrink film or plastic bag, with an inner paper core, and then packed in cartons or pallets to ensure safe transport.
- What is the minimum order quantity (MOQ)? For stock sizes, the MOQ is 1 roll for sample orders. For production orders, the MOQ may vary – please discuss with our sales team.
- Do you provide samples? Yes, we can provide a small free sample (prepaid shipping) for evaluation. Contact us to arrange.
