1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report

1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report thumbnail-3

1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report thumbnail-4

1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report thumbnail-5

1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report photo-1

1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report photo-2

1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report photo-3

1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report photo-4

1-Year Warranty Insulated Metal Embossed Wall Panels 0.5mm Galvanized,PU Core Mill Test Report photo-5

Product Spotlights

Durable 0.5mm galvanized steel with embossed surface, high-density PU core for superior insulation, customizable dimensions and colors, 1-year warranty, ISO9001 certified, includes Mill Test Report for quality assurance. Ideal for energy-efficient buildings.

Negotiable MOQ: 100 Square Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Galvanized steel + PU core

Warranty:

1 year

Thickness:

0.5mm (steel), customizable

Contact Supplier Request Quote Chat Now

Hemaokang Steel (Shandong) Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Material Other, Galvanized steel + PU core

Warranty 1 year

Thickness 0.5mm (steel), customizable

Surface Embossed pattern

Core Polyurethane (PU)

Certification ISO9001

Application Exterior/interior walls, industrial buildings

Color Customizable (RAL available)

Size Customizable (length, width)

Test Report Mill test report included

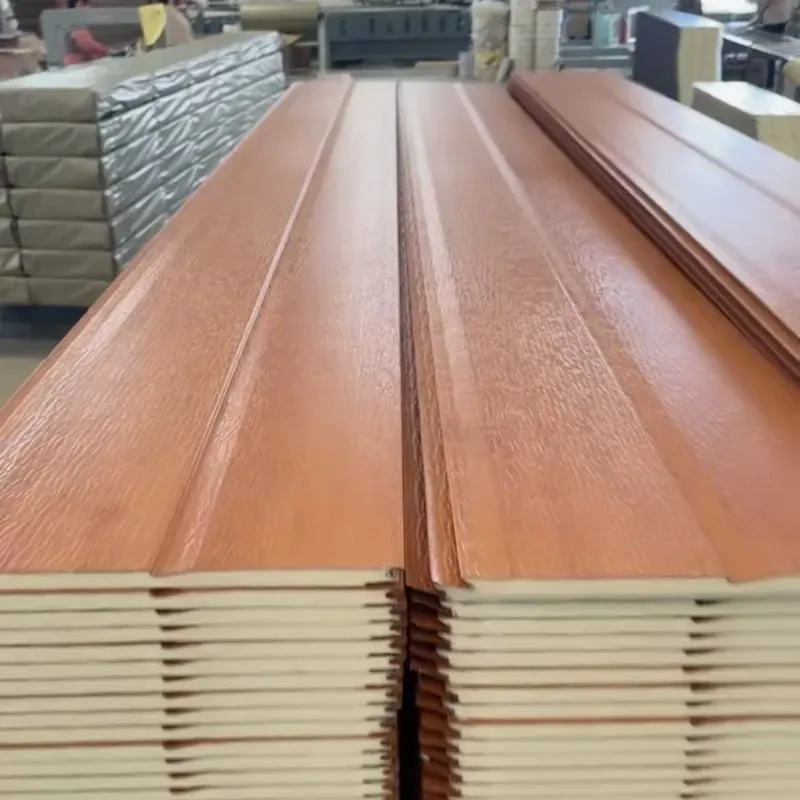

Hemaokang Steel (Shandong) Co., Ltd. proudly presents our 1-Year Warranty Insulated Metal Embossed Wall Panels – a premium solution for modern construction. Manufactured with 0.5mm galvanized steel and a high-density polyurethane (PU) core, these panels offer exceptional thermal insulation, structural strength, and aesthetic appeal. Each panel comes with a Mill Test Report to verify material quality, ensuring your project meets the highest standards. Backed by our ISO9001-certified production and annual export value exceeding US$50 million, you can trust our panels for reliable performance in diverse climates.

Product Features & Technical Specifications

Durable Galvanized Steel Surface – The 0.5mm thick galvanized steel provides excellent corrosion resistance and long-lasting durability, even in harsh environments.
High-Efficiency PU Core – Polyurethane foam core delivers superior thermal insulation (R-value up to 5.0 per inch), reducing energy costs for heating and cooling.
Embossed Texture – The embossed surface pattern adds a decorative touch while improving rigidity and scratch resistance.
Fire Retardant Properties – PU core is treated with fire-retardant additives, meeting standard fire safety requirements (optional upon request).
Lightweight & Easy Installation – Panels are lightweight yet strong, reducing structural load and allowing faster installation compared to traditional materials.
Moisture & Mold Resistance – Closed-cell PU core prevents moisture absorption, minimizing the risk of mold and mildew.
Sound Insulation – Provides effective soundproofing, making it ideal for noise-sensitive environments like offices or residential buildings.
Customizable Dimensions & Colors – Available in various lengths, widths, and colors (RAL colors) to match your design requirements.

Technical Specifications (Typical)

Parameter	Value
Steel Thickness	0.5 mm (0.8-1.0 mm optional)
Core Density	40-45 kg/m³
Panel Width	900-1200 mm (custom)
Panel Length	Up to 12 meters (custom)
Thermal Conductivity	0.022-0.028 W/m·K
Fire Rating	Class B1 (optional upon request)
Warranty	1 year

Benefits for Your Business

Reduce energy costs by up to 30% with high thermal insulation.
Minimize maintenance expenses thanks to corrosion-resistant galvanized steel.
Accelerate construction schedules with easy-to-install interlocking panels.
Enhance building aesthetics with customizable embossed patterns and colors.
Gain peace of mind with a 1-year warranty and mill test report for material traceability.

Why Choose Hemaokang Steel?

Hemaokang Steel (Shandong) Co., Ltd. has been a trusted supplier in the steel industry since 2025, with an annual export value of US$50 million to US$100 million and a team of 51-100 experienced professionals. Our products are exported to North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. We are ISO9001 certified, ensuring strict quality control from raw material to finished panel. Each shipment is accompanied by a Mill Test Report to provide full transparency. With our robust manufacturing capabilities and customer-centric approach, we are your reliable partner for insulated wall panel solutions. Contact us today for a quote or free sample!

Frequently Asked Questions (FAQ)

Q: What is the thickness of the steel used? A: The standard steel thickness is 0.5mm, but we offer options up to 1.0mm to meet specific strength requirements.
Q: Can the panels be cut to custom sizes? A: Yes, we can customize panel length, width, and thickness to your project specifications. Please provide your requirements.
Q: What colors are available? A: We offer a wide range of RAL colors. Custom colors can be matched upon request.
Q: Is the PU core fire-resistant? A: The PU core has fire-retardant properties. For higher fire ratings (e.g., Class B1), we can add special additives – please inquire.
Q: Do you provide a warranty? A: Yes, we offer a 1-year warranty against manufacturing defects. Extended warranty options are available upon negotiation.
Q: What is the delivery time? A: Typical lead time is 15-25 working days after order confirmation, depending on quantity and customization.
Q: Do you have any certifications? A: Our factory is ISO9001 certified. We also provide a Mill Test Report for each batch to confirm material quality.
Q: Can I get a sample before bulk order? A: Absolutely. Free samples are available for your evaluation, with shipping cost to be covered by you.
