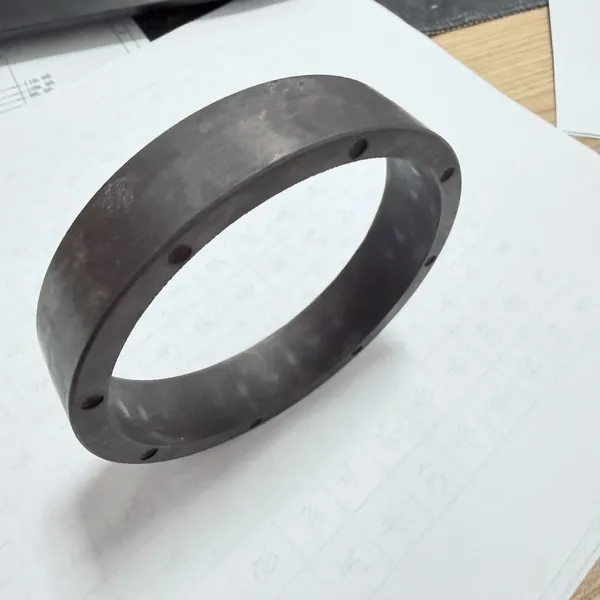

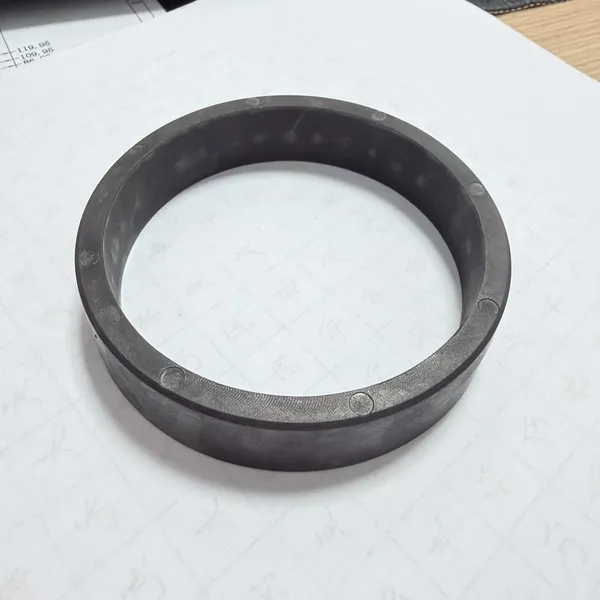

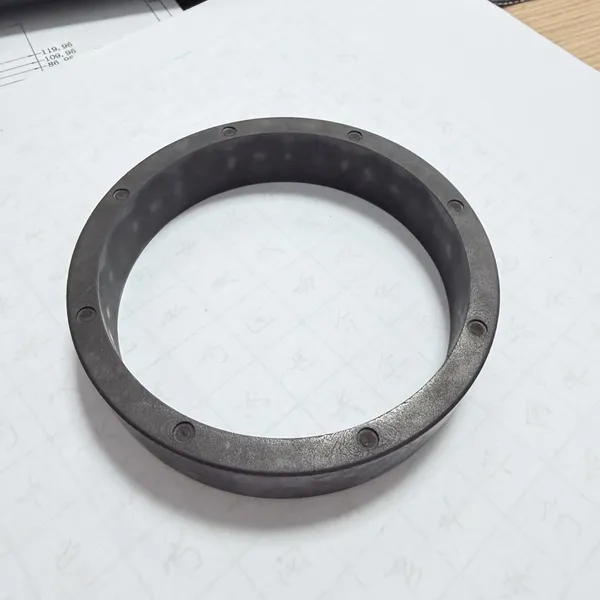

Help CenterOEM PA/PPS Automotive Magnetic Rotor: 150°C+ Thermal Resistance, ±0.02mm Precision NdFeB Parts for SE Asia Car Factories
Product Spotlights
Related Products
-
Precision Custom Water Pump Housing Molded Using 1500-Ton Injection Machine, 30-Second CycleNegotiableMOQ: 5000 Pieces -
OEM PPS NEV Auto Water Pump HousingNegotiableMOQ: 5000 Pieces
-
Automotive Injection Molded NdFeB Magnet Rotor, PA12 Binder, High Vibration Resistance, ±0.02mmNegotiableMOQ: 5000 Pieces
-
OEM Automotive Pump Motor Magnet Rotor, PA6/PPS NdFeB, ±0.02mm Precision, High Vibration ResistanceNegotiableMOQ: 5000 Pieces
-
±0.02mm Tolerance Automotive Magnet Rotor, No Secondary Machining, High Yield Mass Production, PA/PPS NdFeBNegotiableMOQ: 5000 Pieces
Changzhou Hongxinyutai Precision Mold Co., Ltd. presents our OEM PA/PPS Automotive Magnetic Rotor, engineered to withstand extreme thermal conditions above 150°C while maintaining uncompromised precision of ±0.02mm. As a dedicated manufacturer since 2017 with a 1,000-3,000 sqm factory and 51-100 skilled employees, we specialize in producing high-performance NdFeB magnetic components tailored for Southeast Asian automotive factories. Our rotors combine advanced polymer materials (PA/PPS) with rare-earth magnets, delivering reliable performance in demanding engine environments, sensors, and actuator systems. With TS16969 certification and a global export footprint covering North America, Europe, Southeast Asia, and beyond, we offer a cost-effective solution for OEMs seeking superior heat resistance and dimensional accuracy.
Key Product Features & Technical Specifications
- Material Advantages: PA/PPS (Polyamide/Polyphenylene Sulfide) offers excellent chemical resistance, low moisture absorption, and high mechanical strength. The PPS variant provides enhanced thermal stability up to 220°C short-term, ensuring reliable operation in under-hood environments.
- Magnetic Performance: High-grade NdFeB magnets deliver strong magnetic flux density, enabling precise position sensing and efficient torque transmission. Typical remanence (Br) ranges from 1.17-1.21 T, with coercivity (Hcb) ≥ 860 kA/m.
- Precision Machining: CNC-controlled injection molding and grinding processes achieve ±0.02mm tolerance on critical dimensions. This ensures consistent air gap and alignment for optimal magnetic circuit performance.
- Thermal Resistance: Designed for continuous operation at 150°C+ (peak 180°C), with minimal magnetic degradation. The rotor can withstand thermal cycling from -40°C to 150°C, meeting typical automotive reliability standards.
- Corrosion & Environmental Protection: Optional coating (e.g., epoxy, nickel) protects against moisture, salt spray, and automotive fluids. PA/PPS inherently resists fuels, oils, and coolants.
| Parameter | Value | Remarks |
|---|---|---|
| Material Matrix | PA66 + 30% GF / PPS + 40% GF | Customizable ratio |
| Magnet Grade | N35SH–N52H | Higher coercivity available |
| Operating Temperature | -40°C to +150°C (continuous) | Peak +180°C short-term |
| Dimensional Tolerance | ±0.02mm (key dimensions) | CMM inspected |
| Surface Roughness | Ra ≤ 0.8μm | On request |
| Max Outer Diameter | Up to 120mm | Custom sizes |
| Weight | 10-200g typical | Depends on design |
Customer Benefits & Application Advantages
- Enhanced Reliability: The robust PA/PPS housing prevents cracking under thermal shock, while NdFeB magnets retain >95% magnetic strength at 150°C. This reduces warranty claims in electric power steering, turbocharger actuators, and camshaft position sensors.
- Cost Efficiency: By integrating precision injection molding and magnet assembly in-house, we eliminate secondary operations, reducing unit cost by 15-20% compared to traditional metal-cased rotors. Our Southeast Asian customers benefit from competitive FOB pricing from Jiangsu/Shanghai ports.
- Design Flexibility: We offer custom magnetization patterns (radial, axial, multipole), shaft integration, and overmolding options. Lead time for prototypes is as low as 15 working days.
- Quality Assurance: Every rotor undergoes 100% dimensional check, magnetic flux measurement, and thermal shock test (10 cycles -40°C to 150°C). Our TS16969-certified quality system ensures consistent batch-to-batch performance.
With a global shipment network covering Southeast Asia, Europe, and the Americas, Changzhou Hongxinyutai has supplied over 2 million precision magnetic rotors to automotive tier-1 suppliers since 2017. Our 51-100 dedicated team operates modern injection molding machines, automated assembly lines, and a full metrology lab equipped with CMM, gauss meter, and thermal chamber. We are committed to supporting your production schedules with just-in-time deliveries and technical support from our engineering team.
Trust & Credibility
Manufacturing Excellence: Our factory spans 1,000-3,000 sqm with dedicated cleanroom areas for magnet assembly. We hold TS16969 certification, ensuring compliance with automotive industry quality standards. Our main markets include Southeast Asia, Western Europe, North America, and Eastern Asia, with repeat orders from major automotive component manufacturers.
Client Testimonials: "Hongxinyutai's magnetic rotors have consistently met our 150°C endurance requirements with zero field failures in 2 years. Their precision ±0.02mm tolerance simplifies our assembly process." — Senior Engineer, SE Asian automotive sensor manufacturer.
Partnership Value: Choose us for reliable OEM/ODM service, competitive pricing, and responsive communication. Contact our sales team for a free sample and quotation. We look forward to supporting your next automotive project.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum continuous operating temperature for this rotor?
A: The standard PA/PPS rotor can operate continuously at 150°C. For PPS material, continuous operation up to 180°C is possible. Peak short-term exposure can reach 200°C (PA) / 220°C (PPS). -
Q: Can you customize the rotor dimensions for my specific application?
A: Yes, we offer full customization. Provide your required outer diameter, inner diameter, length, and magnet grade. Our engineering team will design the tooling accordingly. Minimum order quantity for custom tooling is 10,000 pieces. -
Q: What magnet grades are available for NdFeB?
A: We commonly use N35SH, N38SH, N42SH, and N52H. Higher coercivity grades like N45UH are available for extreme temperature applications. The exact grade is selected based on your required magnetic field strength and thermal stability. -
Q: Is the ±0.02mm tolerance guaranteed for all dimensions?
A: The ±0.02mm tolerance applies to critical dimensions such as magnet seating diameter, shaft bore, and concentricity. Non-critical dimensions have ±0.05mm tolerance. We use CMM inspection to verify. -
Q: What coating options are available to prevent corrosion?
A: Standard options include epoxy coating (thickness 15-25μm) and nickel plating (5-10μm). For high-humidity environments, we recommend epoxy. Custom coatings are available upon request. -
Q: What is the typical lead time for production orders?
A: For existing tooling, lead time is 4-5 weeks. For new custom tooling, add 3-4 weeks for mold fabrication. Sample orders take 2-3 weeks. We can expedite for urgent projects. -
Q: Do you provide samples for testing before mass production?
A: Yes, we offer free samples (up to 5 pieces) for evaluation. Shipping costs are borne by the customer. Please provide your technical drawing or specification. -
Q: Is your company TS16969 certified? How does that benefit me?
A: Yes, we are certified under TS16969 (automotive quality management system). This ensures strict process control, traceability, and continuous improvement. Our products meet the rigorous requirements of automotive OEMs.
