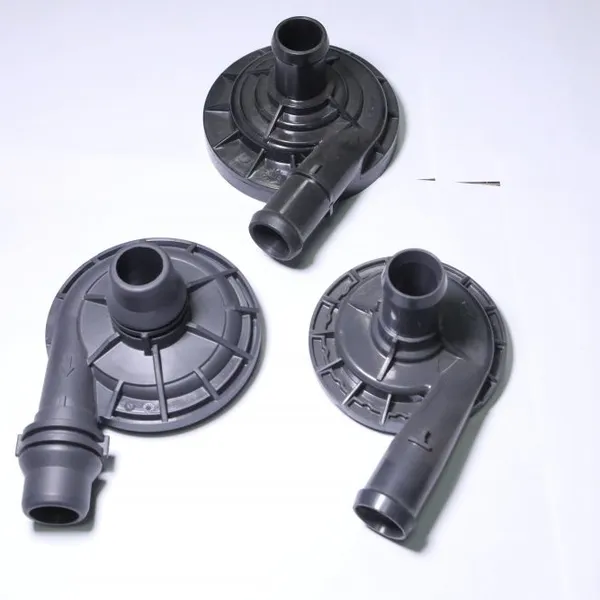

Changzhou Hongxinyutai Precision Mold Co., Ltd. is a dedicated manufacturer specializing in tailored injection molding services. Since our establishment in 2012, we have focused on delivering precision-engineered components, and our water pump housing made from PP+GF material exemplifies our commitment to quality. This product combines the lightweight and chemical resistance of polypropylene with the enhanced strength and dimensional stability provided by glass fiber reinforcement. Whether you require a standard design or a fully customized solution, our experienced team ensures that each housing meets your exact specifications, supporting applications across automotive, industrial, and agricultural sectors.
Key Features & Technical Specifications
Material Excellence: PP+GF (typically 20%–40% glass fiber) offers high tensile strength, low moisture absorption, and excellent resistance to chemicals and heat, making it ideal for water pump housings exposed to continuous fluid contact.
Precision Manufacturing: Our injection molding process ensures tight tolerances (typical ±0.1 mm) and repeatable quality, with advanced mold design that minimizes warpage and sink marks.
Customizable Options: Available in various sizes, wall thicknesses, and colors (custom pantone or RAL). Threaded inserts, bosses, and mounting features can be integrated per your design.
High Durability: The material withstands continuous operating temperatures up to 120°C and short-term peaks up to 150°C, ensuring long service life even in demanding pump applications.
Surface Finish: Standard smooth finish (Ra 0.4–0.8 μm) or optional textured finishes (e.g., MT-11020) for improved grip and wear resistance.
Technical Parameters (Typical Values)
| Parameter | Value | Remarks |
|---|---|---|
| Tensile Strength | 60 – 100 MPa | Depending on GF content |
| Flexural Modulus | 4,000 – 8,000 MPa | High stiffness |
| Heat Deflection Temperature (HDT) | 120 – 150 °C | At 1.82 MPa |
| Mold Shrinkage | 0.4 – 0.8% | Controlled by process |
| Water Absorption (24h) | Excellent hydrolytic stability |
Advantages for Your Application
Cost-Effective: Injection molding enables high-volume production with low per-part cost, and PP+GF material is more affordable than many engineering plastics.
Lightweight: Reduces overall pump weight compared to metal housings, lowering shipping costs and easing installation.
Corrosion Resistance: Inherently resistant to water, antifreeze, and mild chemicals, eliminating rust and scaling issues common with metal.
Design Flexibility: Complex geometries, internal channels, and inserts can be molded directly, reducing secondary assembly steps.
Why Choose Changzhou Hongxinyutai?
As a factory with 1,000–3,000 square meters of production space and a team of 51–100 skilled professionals, we have the capacity to handle projects from prototype to mass production. Our facility is certified under IATF 16949:2016 (automotive quality management system), reflecting our commitment to rigorous process control and continuous improvement. We serve clients across North America, South America, Eastern Europe, Southeast Asia, and many other regions, with convenient shipping from Jiangsu, Shanghai, and Shenzhen ports.
We invite you to experience our tailored injection molding service. Whether you need a one-time sample or ongoing production, our engineers will work closely with you to optimize the water pump housing design for manufacturability, cost, and performance. Contact us today for a quote or technical consultation.
Frequently Asked Questions (FAQ)
1. What is the lead time for a tailored water pump housing?
Lead time typically ranges from 15 to 30 days for tooling (if new mold required) and 7–15 days for production runs, depending on quantity and complexity.
2. Can you match a specific color or surface texture?
Yes, we can match custom colors (Pantone/RAL) and apply various textures such as glossy, matte, or leather grain. Please provide your reference sample or specification.
3. What glass fiber content do you recommend for water pump housings?
Commonly, 20% to 30% GF provides a good balance of strength and impact resistance. For higher pressure applications, 40% GF is available.
4. Is the PP+GF material suitable for potable water?
Standard PP+GF grades may not be certified for drinking water contact unless specifically formulated. We can source food-grade or NSF-certified materials upon request.
5. Do you offer assembly or finishing services (e.g., adding seals, inserts)?
Yes, we can integrate metal threaded inserts, rubber O-rings, or other components as part of the molding or post-molding process.
6. What is the minimum order quantity (MOQ)?
MOQ depends on the part size and mold complexity. For new projects, we typically start with a sample order of 500–1,000 pieces. Smaller quantities are negotiable for prototyping.
7. How do you ensure quality consistency from batch to batch?
We follow IATF 16949:2016 procedures, including incoming material inspection, in-process SPC, and final dimension/function testing. Each housing is checked for critical dimensions and visual defects.
8. Can you provide a 3D design review before making the mold?
Absolutely. Our engineering team will review your CAD model, suggest DFM improvements, and provide a mold flow analysis to prevent potential issues.
