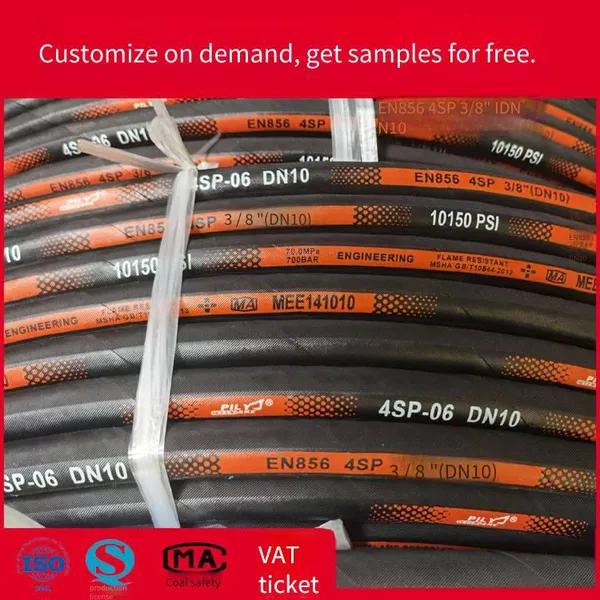

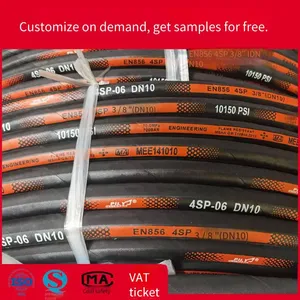

Help CenterDin20023 En856 4sp Rubber Hose, High-pressure Steel Wire Braided Rubber Oil Pipe, Supplied by Manufacturer
Related Products
-
Cotton Thread Woven Diesel/gasoline Hose, Smooth Surface Oil-resistant Rubber Hose, 20bar Rubber Fuel HoseNegotiableMOQ: 0 Meter -
Pictures of Hoses Meeting Sae 100 r8 Standard, Manufacturers of Fiber-reinforced Nylon Resin Tubes, Thermoplastic Elastomer HosesUS$ 1.66 - 1.69MOQ: 100 Meters
-
Factory Crimped Beer Hoses. Pictures of High-pressure Beer Hoses. Complete Range of Beer Hose and Oil Pipe Models.NegotiableMOQ: 0 Set
-
Export Sae 100 r3 Fiber Braided Rubber Hose, 86bar High-pressure Clamped Wire Oil Pipe, r3 Return Oil Pipe PicturesUS$ 0.75 - 0.77MOQ: 100 Meters
-
Sae 100 r6 Fiber Braided Rubber Hose, Medium and Low Pressure Reinforced Oil Pipe, r6 Single-layer Fiber Return Oil PipeUS$ 0.91 - 0.92MOQ: 100 Meters
The factory supplies DIN EN856 4SP hoses, high-pressure steel wire braided rubber oil pipes in stock. The assemblies can be processed according to the required length, printing, etc. For details, please contact Manager Sun
DIN - EN 856 4SP Standard
Product Structure and Performance:
Inner Rubber Layer: Black oil-resistant synthetic rubber.
Reinforcement Layer: A braided reinforcement layer composed of four layers of high-strength, high-tensile steel wires specially used for hoses (4W/S )
Outer Rubber Layer: Black oil-resistant, corrosion-resistant, wear-resistant synthetic rubber, with a cloth-textured surface appearance.
Temperature Range: -40 ℃to +100 ℃
:::::When used for coal mine hydraulic supports and related equipment,the tube body has flame retardant,antistatic properties.
Diameter |
Inner diameter of the hose |
Outer diameter of the reinforcement layer |
Outer diameter of the tube |
Working pressure |
Burst pressure |
Minimum bending radius |
Weight |
Finished product length |
|||
inch |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
metres |
|
10 |
3/8 |
9.5 |
17.5 |
21.4 |
44.5 |
6450 |
180.0 |
26000 |
180 |
0.78 |
20to40 |
13 |
1/2 |
12.7 |
20.2 |
24.0 |
41.5 |
6000 |
166.0 |
24000 |
230 |
0.89 |
20to40 |
16 |
5/8 |
15.9 |
23.8 |
28.2 |
35.0 |
5000 |
140.0 |
20000 |
250 |
1.11 |
20to40 |
19 |
3/4 |
19.0 |
28.2 |
32.2 |
35.0 |
5000 |
140.0 |
20000 |
300 |
1.59 |
20to40 |
25 |
1 |
25.4 |
35.5 |
39.7 |
28.0 |
4000 |
112.0 |
16000 |
340 |
2.02 |
20to40 |
32 |
1 1/4 |
31.8 |
46.0 |
50.8 |
21.0 |
3000 |
84.0 |
12000 |
460 |
3.32 |
20to40 |
38 |
1 1/2 |
38.1 |
52.4 |
57.7 |
18.5 |
3650 |
74.0 |
10800 |
560 |
3.70 |
20to40 |
51 |
2 |
50.8 |
65.3 |
69.6 |
16.5 |
2360 |
66.0 |
9600 |
660 |
5.47 |
20to40 |
