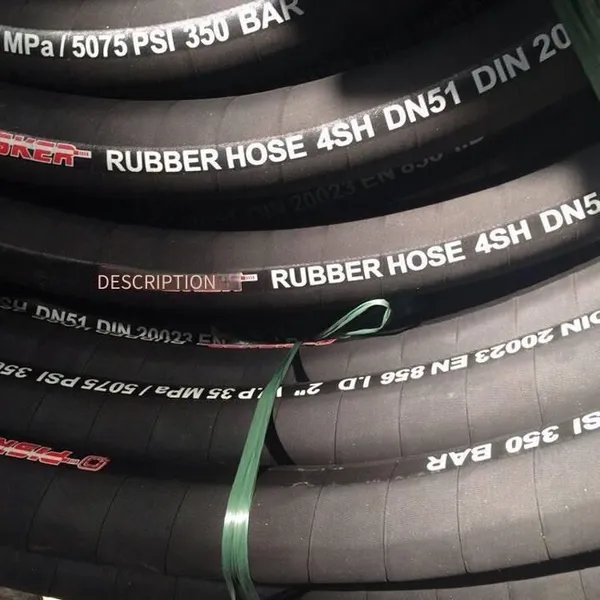

Professional Production of Pisker Brand Black or Colored High-pressure Rubber Hoses, Hydraulic Beer Hoses and Oil Pipes
US$ 3.08
1 - 999 Meter
US$ 2.77
≥1000 Meter
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Hengshui, Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Colorful Steel Wire Hoses Such as Blue Hydraulic Hoses, Red High-pressure Hoses, and Yellow Air HosesUS$ 0.89 - 0.92MOQ: 100 Meters -
Wholesale of Pisker Rubber Hydraulic Oil Hoses Produced by a Factory in Hebei. In-stock Items Available.US$ 4 - 4.15MOQ: 1 Meter
-
Produce Pilske Sae100r15 Hydraulic Oil Pipes, Six-layer Steel Wire Wound Ultra-high Pressure Rubber HosesUS$ 7.38 - 7.54MOQ: 40 Meters
-
Pilske High-pressure Oil Pipe, 25mm 4-layer Steel Wire Wound Rubber Hose for Construction MachineryUS$ 5.23MOQ: 120 Meters
-
Ss304 Metal Bellows, Stainless Steel Braided Metal Hose, High-pressure and High-temperature Resistant Hose up to 400°cUS$ 2.23 - 2.31MOQ: 100 Meters
Hebei, Hengshui, pisker Brand Rubber Hoses - Product Parameters:

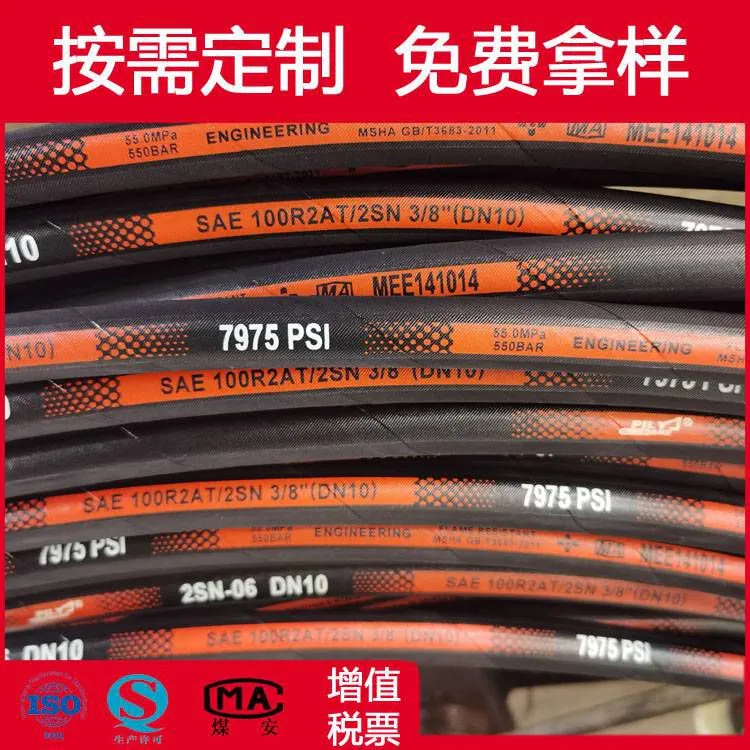

Take the SAE 100 R2 AT standard as an example
Product structure and performance:
Inner rubber layer: Black oil-resistant synthetic rubber.
Reinforcement layer: Two layers of high-strength, high-tensile steel wire braid reinforcement layer specifically for hoses ( 2W/B )
Outer rubber layer: Black oil-resistant, corrosion-resistant, and wear-resistant synthetic rubber with a cloth-textured surface.
Temperature range:-40 ℃ to +100 ℃
::::: This type of hose crimping joint does not require stripping the outer rubber. It is suitable for construction machinery and continuously operating hydraulic equipment, with good heat-resistant oil and anti-pulse performance.
| Diameter | Inner diameter of the hose | Outer diameter of the reinforcement layer | Outer diameter of the tube | Working pressure | Burst pressure | Minimum bending radius | Weight | Finished length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 165 | 23720 | 89 | 0.32 | 50/100 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
| 16 | 5/8 | 15.9 | 23 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
| 32 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20 to 40 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 | 20 to 40 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 | 20 to 40 |
