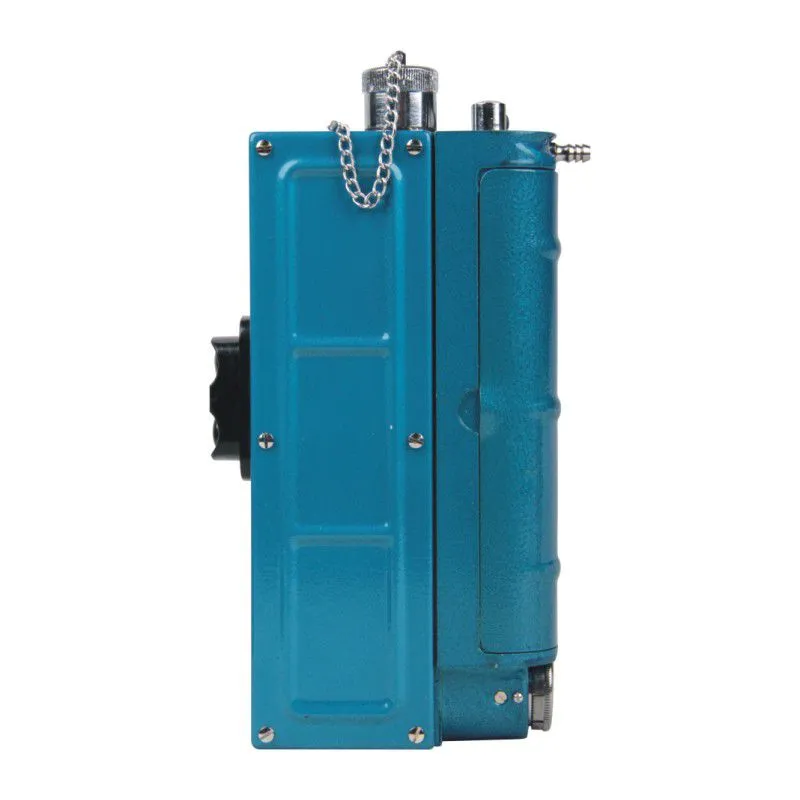

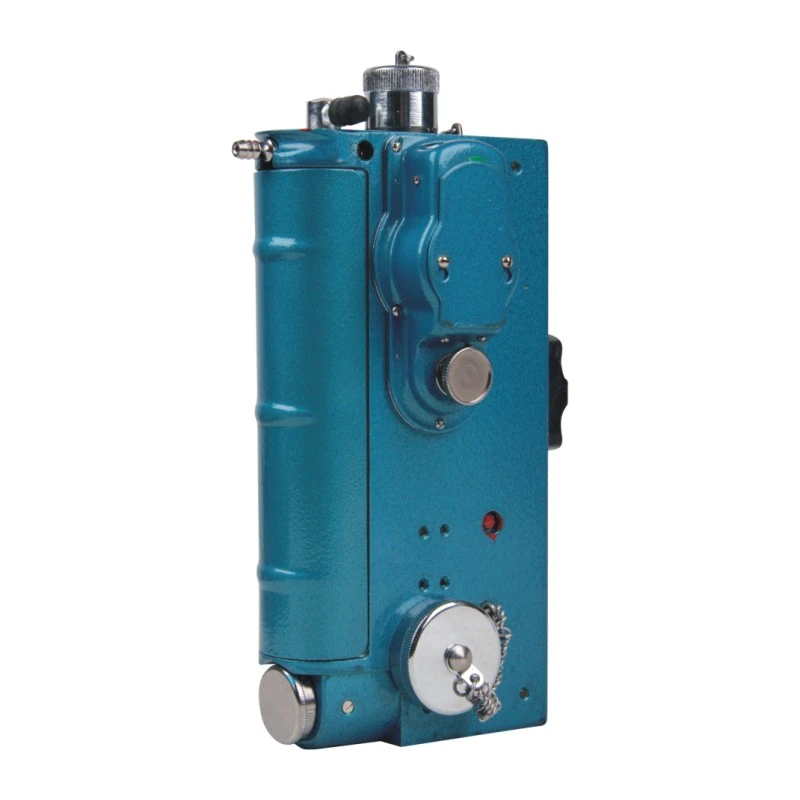

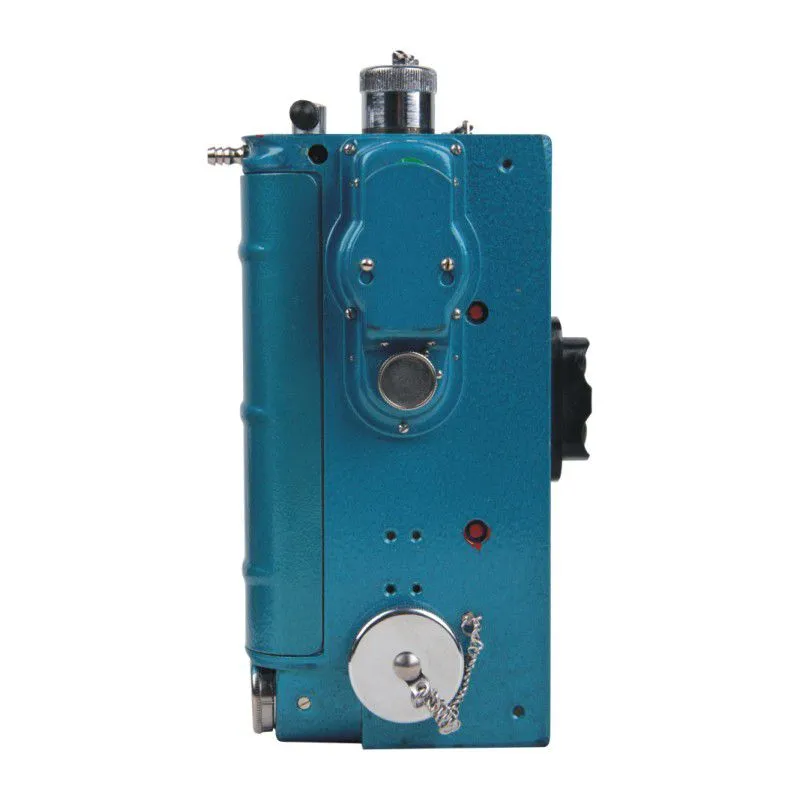

CJG100 Optical Interference Type Methane Detector
Main characteristics
1. Using optical interference principle, it can real-timely detect the methane concentration in ambient air.
2. It has characteristics of accurate measurement, simple operation, convenient to use.

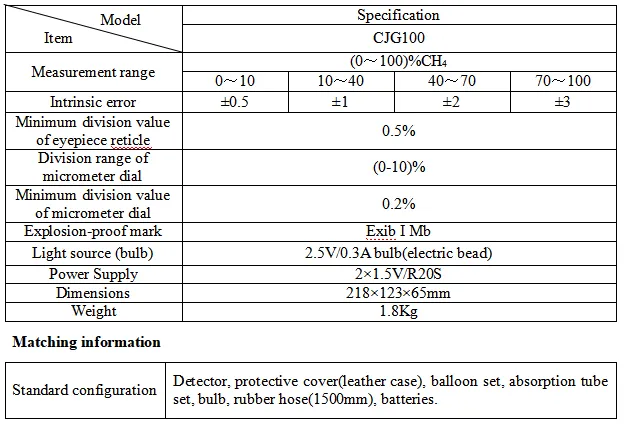

Main specification
Intrinsically Safe Explosion-Proof & Sturdy Mechanical Structure

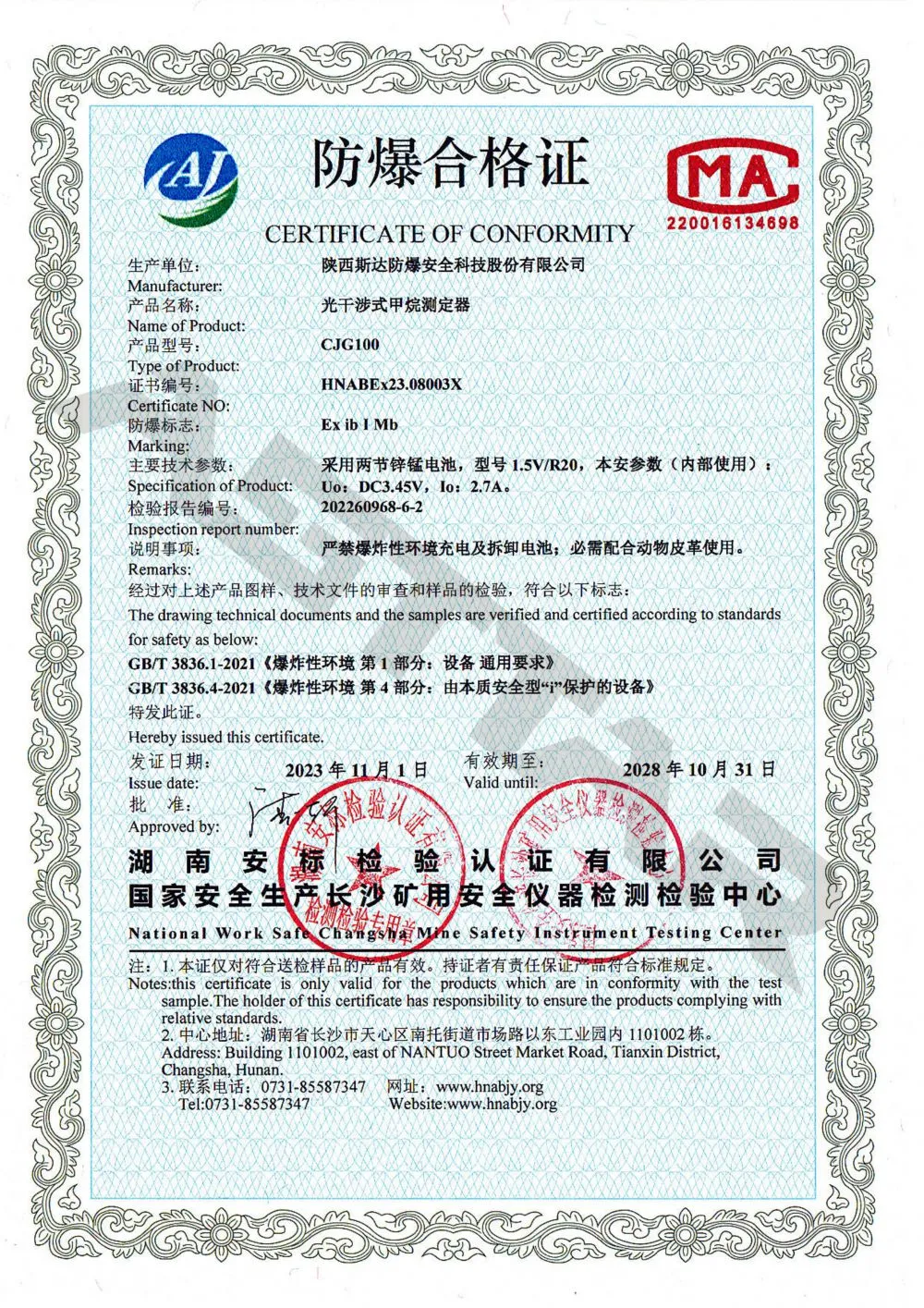

CJG100 carries authoritative mining explosion-proof mark Exib I Mb, fully meeting intrinsically safe standards for underground flammable and explosive methane mixed gas environments. It will not produce sparks or ignition risks during normal operation, completely safe for use in high-gas mine roadways, working faces and goafs. The whole machine adopts solid shock-resistant metal shell, anti-collision and wear-resistant, adapting to frequent handheld carrying and bumpy transportation in mining sites. The overall dimension is 218×123×65mm with net weight only 1.8kg, suitable for long-time handheld patrol inspection without bringing extra fatigue to workers.
Stable Power Supply & Complete Standard Configuration
This methane detector is powered by two 1.5V R20S zinc-manganese dry batteries, with stable power output to support all-day underground continuous gas detection. Each finished product is delivered with a full set of standard supporting accessories for out-of-box use, including main detector body, wear-resistant leather protective cover, air balloon set, absorption tube assembly, spare light bulb, 1500mm long rubber sampling hose and matched batteries. The leather protective case effectively protects the host from collision, dust and moisture during storage and field carrying, greatly extending the service life of the optical measuring components.
Application Scenarios
Widely applied for routine high-concentration methane patrol detection in underground coal mine high-gas working faces, ventilation roadways, goafs and gas accumulation areas, CJG100 supports daily safety hidden danger screening, gas hazard assessment and mine ventilation parameter calibration. With low maintenance cost, durable optical structure and simple operation, it is a cost-effective long-term high-concentration methane detection solution for all high-gas underground mining enterprises and mine safety supervision departments.
Short Marketing Paragraphs for Listing Bullet Points
Optical interference physical detection principle, stable measurement without sensor aging, ultra-wide 0-100%CH4 full measuring range.
Exib I Mb mining intrinsically safe explosion-proof design, safe for underground high methane explosive environments.
Segmented error control + 0.2% high-precision micrometer dial, clear eyepiece reading for high concentration gas test.
1.8kg lightweight handheld body, 2×R20 dry battery power supply, complete leather case and sampling accessories.
Specially designed for high-gas coal mines, ideal for goaf, working face and tunnel methane concentration inspection.
About us
ASTTAR - a high-tech enterprise, founded in 1995, is engaged in the development and production of software and hardware products in the professional field of safety emergency, it has six series and over a hundred types of products, its sales network covers the whole country, and its products are exported to dozens of countries and regions.
