Customizable Stationary Boom Crushing System
In the field of mining, secondary crushing operations have long faced three major problems: high-risk environment, inefficient operation and rising labor costs. The traditional crushing method has bottlenecks such as big safety risks, low precision and poor adaptability to the environment, YZH row with twenty years of mining machinery R & D accumulation, launched a new generation of Stationary Boom Crushing System, to reshape the new paradigm of mining crushing with intelligent technology.
Main parameters:
Model No. |
BB600A |
|
Boom Weight (without hammer) |
kg |
3852 |
Max. Horizontal working radius |
mm |
8390 |
Max. Vertical working radius |
mm |
6330 |
Min. Vertical working radius |
mm |
1770 |
Max. Height |
mm |
4465 |
Max. Working depth |
mm |
5810 |
Rotation |
° |
170 |
Product Advantages

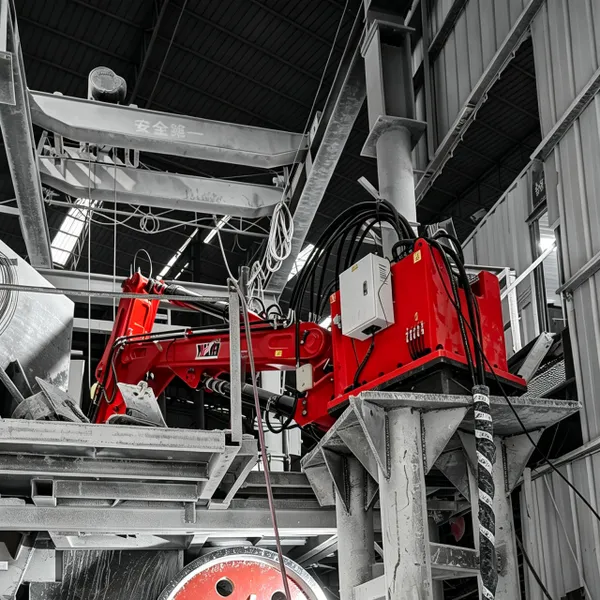

1.Fixed installation beside primary crushers, efficiently crush oversize boulders and clear feed blockages automatically
2.Replace high-risk manual breaking work, greatly improve operation safety
3.Reduce frequent crusher shutdown caused by rock jamming, raise overall production throughput
4.High-strength alloy boom structure, strong load resistance and long service life
5.Flexible multi-angle swinging, wide working range to cover all feeding areas
6.Stable pedestal base, low vibration during continuous heavy-duty operation
7.Simple maintenance and easy remote control operation, lower labor & maintenance costs
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
