China Factory YZH Fixed Robotic Arm

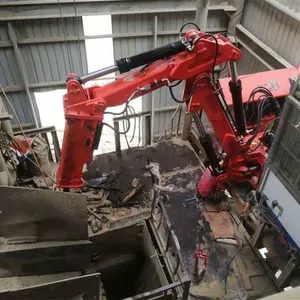

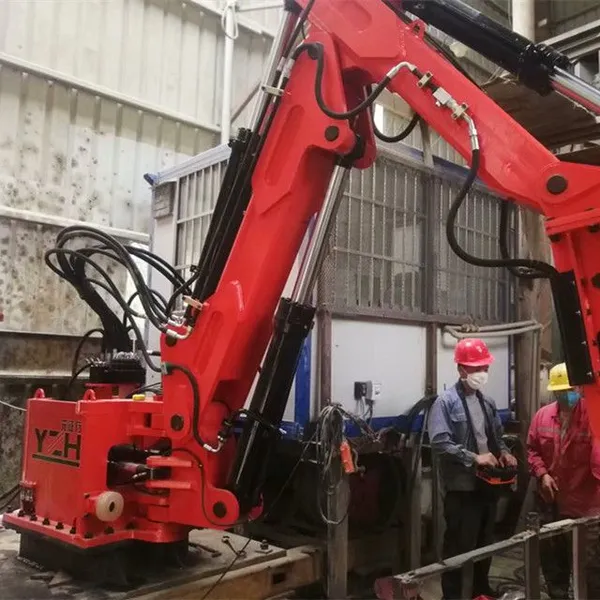

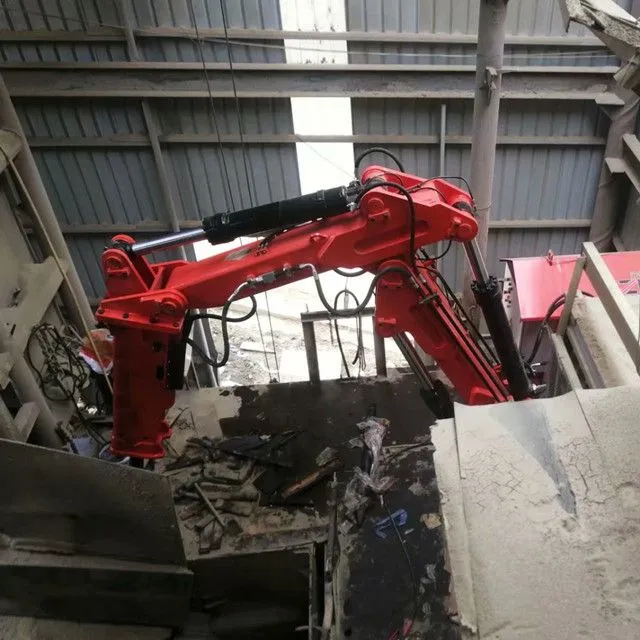

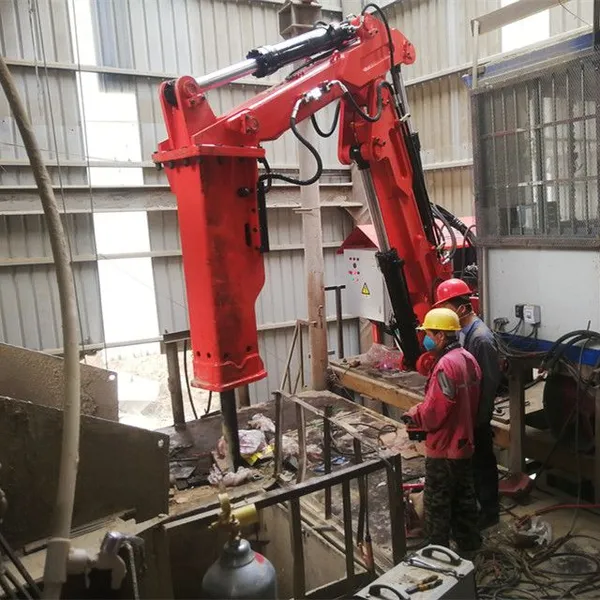

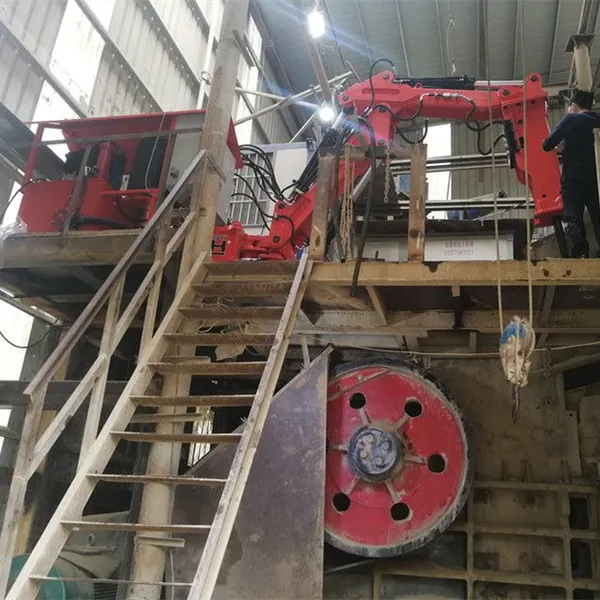

A Fixed Robotic Arm is a mining machinery equipment used for secondary crushing of large stones. The Fixed Robotic Arm can crush large stones into small stone blocks. They are commonly used in the mining industry, quarries, and sand and gravel aggregate plants to crush oversized or hard rocks that cannot be fed into the bin through the crusher. The Fixed Robotic Arm mainly consists of four parts: hydraulic breaker (used for crushing rocks), boom (working arm), hydraulic oil pump station (power source), and controller (operating system). There are two main types of stone crushers, mobile electric hydraulic stone crushers and fixed electric hydraulic stone crushers, which are usually installed on a base or rotating frame support.
Main parameter:
| Model No. | BB600 | |
| Boom weight(without hammer) | KG | 3550 |
| Max.Horizontal Working radius | MM | 8430 |
| Max.Vertical Working radius | MM | 6330 |
| Min.Vertical Working radius | MM | 2300 |
| Max.Height | MM | 4940 |
