Heat Exchanger and Condenser U-Bend Tubes
Product Title

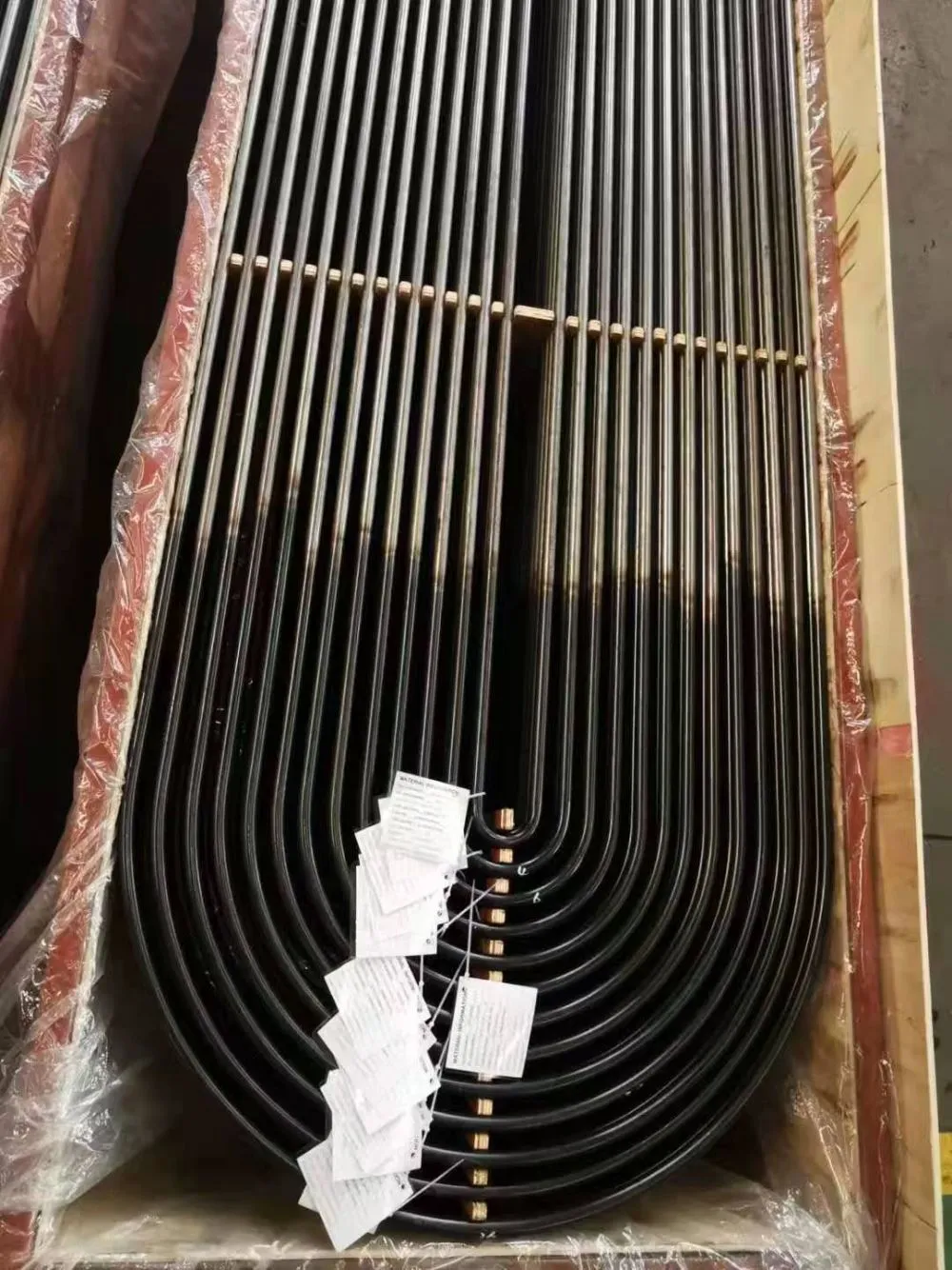

U-Bend Seamless Tubes for Heat Exchangers and Condensers
Short Description
U-bend seamless tubes manufactured for heat exchanger and condenser applications requiring bent tube configurations. These tubes maintain the mechanical properties and dimensional accuracy of straight tubes while accommodating specific U-bend geometries for efficient heat transfer equipment design.
Product Details
Standard: ASME SA179, SA192
Material: Low-carbon steel
Outside Diameter: 6 – 204 mm
Wall Thickness: 1 – 18 mm
Configuration: U-bend as per customer drawing
Certifications: EN 10204 Type 3.1 Mill Test Certificate
Technical Specifications
| Parameter | Range |
|---|---|
| OD | 6 – 204 mm |
| WT | 1 – 18 mm |
| Standards | ASME SA179, SA192 |
| Configuration | U-bend to specification |
| Application | Heat exchangers, condensers |
Key Features & Benefits
Custom bending: U-bend geometry to customer specifications [Benefit: Optimized heat exchanger design]
Quality maintained: Bending without compromising tube integrity [Benefit: Reliable performance]
Full testing: 100% hydrostatic and eddy current tested [Benefit: Leak-proof reliability]
Traceable quality: EN 10204 3.1 with complete documentation [Benefit: Quality assurance]
USP Highlights
Partner mill with TÜV PED and IATF certifications
Custom bending capability
Full traceability with EN 10204 Type 3.1
Service Information
MOQ: Flexible
Delivery: 25–45 days based on complexity
Packaging: Individual supports to prevent damage
Drawing Requirements: Customer drawing required for bending specification
