10.1" RK3568 All in One HMI Android Panel PC, IPS, ABS Frame
Product Spotlights
GeniusCore Embedded Systems "ControlHUB Series" Plastic Frame Multiport Panel PC 10.1" inch IPS Screen, All in One HMI Android Panel PC, RK3568 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485, Optional CAN Port Model: GFCX-A101M3568-2G16 ControlHUB Plastic Frame RK3568 Standard Configuration: - CPU: RK3568 Quadcore
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10.1" RK3568 2x INT SPK All in One HMI Android Panel PC, IPS, ABS Larger FrameNegotiableMOQ: 1 Piece -
10.1" RK3288 All in One HMI Android Panel PC, IPS, ABS FrameNegotiableMOQ: 1 Piece
-
10.1" Inch A133P 2x INT SPK All in One HMI Android Panel PC, IPS, ABS FrameNegotiableMOQ: 1 Piece
-
10.1" Inch RK3288 2x INT SPK All in One HMI Android Panel PC, IPS, ABS FrameNegotiableMOQ: 1 Piece
-
10.1" A133P All in One HMI Android Panel PC, IPS, ABS FrameNegotiableMOQ: 1 Piece

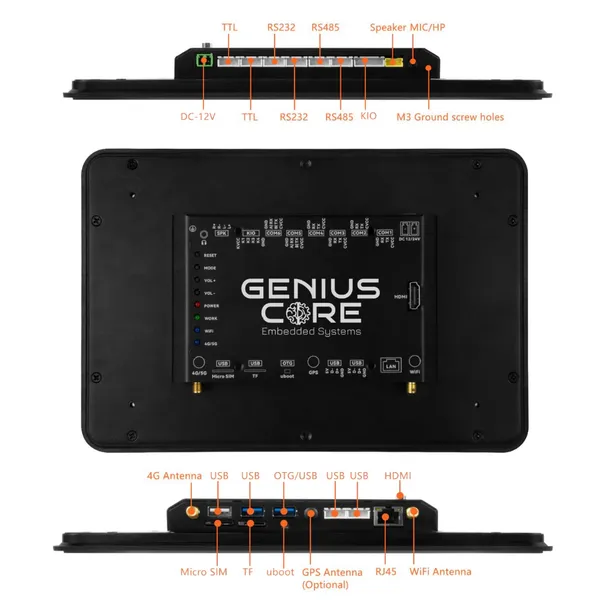

| GeniusCore Embedded Systems "ControlHUB Series" Plastic Frame Multiport Panel PC 10.1" inch IPS Screen, All in One HMI Android Panel PC, RK3568 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485, Optional CAN Port Model: GFCX-A101M3568-2G16 ControlHUB Plastic Frame RK3568 Standard Configuration: - CPU: RK3568 Quadcore A55, 2GB RAM 16GB ROM Quad Core A17, Up to 1.8GHz - GPU: Mali-G52 2EE - Operating System: Android 11/12 / Ubuntu 20.04 / Linux QT / Debian 10 - IP65 Waterproof Front Panel - Memory: Default 2GB RAM +16GB ROM (4G+32G, 8G+64G Optional) - Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB - External Storage: Self-ejecting TF Card Up to 256GB - Ethernet: 1000Mbps - Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional) - Bluetooth: Default WiFi6 BT 5.2 - 4G/5G Optional: EC800M/EC600/EC20，RG200U(5G) - 1-way Micro SIM card slot - Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485 - CAN (Optional): COM6 can be configured as CAN - USB: 1*USB3.0 , 3*USB2.0 , 1*USB3.0 OTG - GPIO: 4-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output - HDMI 2.0 Built in, up to 4K resolution, supports Dual screen display - GPS (Optional): EC800M，Supports dual positioning of Beidou and GPS - Screen: 10.1" inch, 800*1280 Pixel, IPS Capacitive LCD Panel, display scale 5:8 - Brightness: 500 cd/m2 (Optional 1000cd/m2) - Buttons: Reset button, back button, volume + and volume -, burn button - LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator - Amplifier: 8 ohm 6W Dual-channel Audio Amplifier Output - Earphone: 4-band headset integrated 3.5mm socket - Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM - Working Voltage: 9-24V, typical value 12V - Working Temperature:-10°C-60°C Storage Temperature: -20°C-70°C - Display Area: 136*217.2mm - Overall Dimension: 171.1*252.5mm - Outer packaging size 300 * 205 * 52mm - Weight: 1.50 kg, Package Weight: 1.80 kg Powerful Processing and Connectivity for Complex Industrial Applications The Genova Control Hub Plastic - 10.1-Inch Rockchip RK3568 Model is designed for advanced industrial setups that require reliable performance and extensive connectivity. Driven by the Rockchip RK3568 4-Core A55 processor clocked up to 2.0GHz and Mali-G52 2EE GPU, this model is available in 2GB+16GB, 4GB+32GB, and 8GB+64GB configurations to handle intensive data demands. The 10.1-inch 800x1280 IPS screen with 5-point capacitive touch delivers high-definition visuals and precise touch control. Constructed with an IP65-rated plastic frame, it withstands harsh industrial conditions, while 1000Mbps Ethernet and HDMI 2.0 offer high-speed networking and flexible display integration. Optional COM and Uart6 serial ports and CANBUS support (optional) further enhance connectivity options for complex setups. With support for Android 11 (and optional Ubuntu 20.04/Debian 11), the RK3568 model is adaptable across different software platforms. Additional features such as optional 4G/5G, WiFi 6, and GPS with dual positioning make it a robust choice for IoT and remote management applications. Powered by DC12V ± 5%/DC24V ± 5% and backed by a 3-year warranty, the 10.1-inch RK3568 model is well-suited for automation, data analysis, and infrastructure control in demanding industrial settings. |
