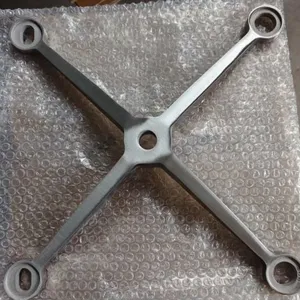

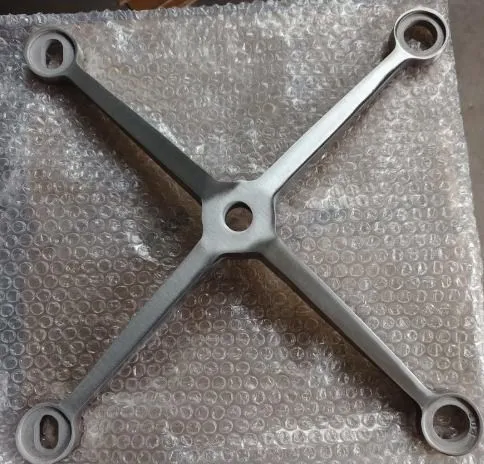

As a trusted supplier from Hefei SENOTECH New Materials Co., Ltd (established in 2020, with annual export value over US$1 million), we are proud to introduce our Factory Direct Curtain Wall Spider 4 Way Arm 304 Stainless Steel 150mm. This high-load-capacity glass curtain wall spider is engineered to provide secure, durable, and visually appealing support for modern architectural glass facades. Our product is manufactured with precision and rigorous quality control, ensuring reliable performance in demanding environments across North America, South America, Europe, Asia, and beyond.

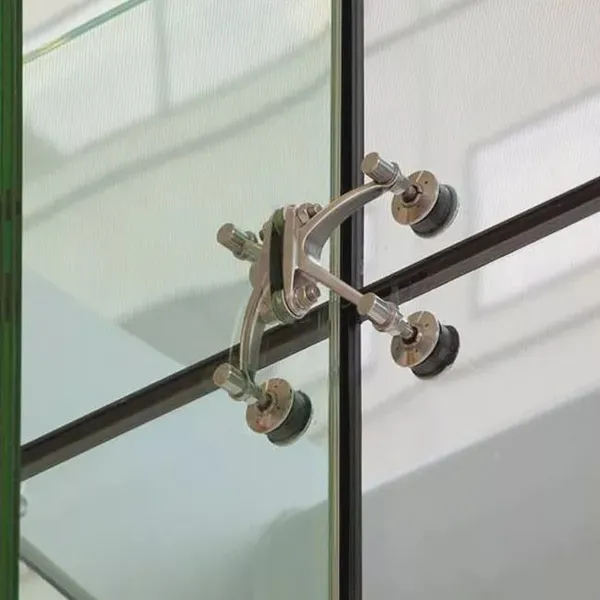

The 4-way arm design distributes weight evenly, making it ideal for point-fixed glass curtain walls where structural integrity and aesthetic minimalism are required. With 304 stainless steel construction, it offers excellent corrosion resistance, longevity, and strength — all at a competitive factory-direct price. Whether you are a contractor, architect, or distributor, this spider arm delivers the performance and reliability your project demands.
Key Features & Technical Specifications
- Material: Premium 304 stainless steel — excellent corrosion resistance for outdoor and marine environments.
- Arm Type: 4-way (four arms) for balanced load distribution on glass panels.
- Size: 150mm arm length (center-to-center), suitable for standard glass thicknesses.
- Load Capacity: High loading capacity — tested to withstand heavy wind loads and structural stress (exact figures available upon request).
- Finish: Available in satin (brushed) or mirror polished finish to match architectural aesthetics.
- Installation: Easy to install with threaded connection; compatible with standard curtain wall systems.
- Customization: Dimensions, drilling patterns, and surface treatment can be customized per order.
- Application: Ideal for glass curtain walls, skylights, atriums, and glass railings.
| Parameter | Details |
| Material Grade | AISI 304 (1.4301) |
| Arm Length | 150 mm |
| Number of Arms | 4 |
| Connection Thread | M10 / M12 (customizable) |
| Surface Finish | Satin or Mirror (optional) |
| Weight (approx.) | 0.8 kg per piece |
| Packing | Standard export carton or wooden pallet |
Advantages & Customer Benefits
- Factory Direct Pricing: Eliminate middlemen — get competitive pricing without compromising quality.
- High Durability: 304 stainless steel resists rust, pitting, and corrosion, ensuring long service life even in coastal areas.
- Enhanced Safety: The 4-way design provides stable support for glass panels, reducing stress concentration and risk of breakage.
- Versatile Application: Suitable for both indoor and outdoor glass curtain walls, including commercial buildings, malls, airports, and luxury residences.
- Quick Installation: Pre-threaded holes and standard dimensions allow fast assembly with compatible glass fittings.
- Customizable Options: We can adjust arm length, finish, and thread specifications to meet your project requirements.
- Reliable Supply Chain: With annual export value exceeding US$1 million, we have the capacity to fulfill large orders with consistent quality.
Trust & Assurance from Hefei SENOTECH
Since 2020, Hefei SENOTECH New Materials Co., Ltd has been dedicated to supplying high-quality architectural hardware to global markets. Our products are exported to over 10 regions including North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. We have maintained a strong reputation for on-time delivery, strict quality control, and responsive customer service. Each batch of curtain wall spiders undergoes thorough inspection for dimensional accuracy, material composition, and load capacity before shipment. Our team is committed to helping you find the right solution for your glass curtain wall project — whether it's a standard 150mm 4-way arm or a customized design.
We invite you to contact us for detailed load test reports, sample availability, and volume pricing. With our factory-direct model, you can expect competitive pricing without sacrificing quality. Let us be your reliable partner in creating stunning, safe, and durable glass facades.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum load capacity of this 4-way arm?
A: The exact load capacity depends on the installation angle and glass thickness. Typically, our 304 stainless steel 150mm arm can support static loads up to 1500 kg (tested). Please contact us for detailed technical data and project-specific calculations. -
Q: Is the arm compatible with curved glass?
A: Yes, the 4-way arm can be used with curved glass panels if the curvature angle is within the adjustable range of the spider. Customized arm lengths are also available for special geometries. -
Q: What is the difference between 304 and 316 stainless steel?
A: 304 stainless steel offers excellent corrosion resistance for most environments. For highly corrosive coastal or chemical environments, we recommend 316 stainless steel (available upon request). Our standard product is 304. -
Q: Do you offer samples before bulk order?
A: Yes, we provide samples for testing. Sample cost is negotiable, and shipping is usually covered by the customer. For large orders, sample fees can be refunded. -
Q: How long is the lead time for standard 150mm 4-way arms?
A: For orders of 100–500 pieces, the lead time is typically 15–20 working days after deposit. Larger quantities may require 25–30 days. Express delivery is available for urgent orders. -
Q: Can I get custom surface finish or logo engraving?
A: Absolutely. We offer satin, mirror, and powder-coated finishes. Laser engraving of your brand logo or project name is also possible with a minimum order quantity. -
Q: What packing method do you use to prevent damage?
A: Each spider arm is individually wrapped in bubble film, then packed in sturdy cartons with foam inserts. For sea freight, we use wooden pallets and shrink wrap to ensure safe transportation. -
Q: Is there any warranty for this product?
A: We provide a 12-month warranty against manufacturing defects under normal use conditions. Our after-sales team will assist with any quality issues promptly.
Contact us today to discuss your curtain wall project requirements. Let our factory-direct expertise and high-quality 304 stainless steel spider arms bring your architectural vision to life.
