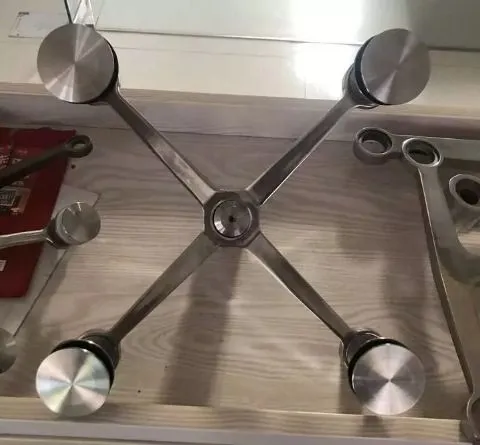

China Manufacturer Curtain Wall Spider SS316 4 Way Arm Heavy Duty for Glass Canopy
Product Spotlights
SS316 stainless steel 4-way arm spider for heavy-duty glass canopy applications. Features superior corrosion resistance, customizable dimensions, high load capacity, and versatile surface finishes. Direct factory pricing from a reliable Chinese manufacturer with global export experience.
US$ 10 - 30
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Material:
Other, Stainless Steel 316
Type:
4 Way Arm
Application:
Glass Canopy
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Curtain Wall Spider for Shopping Mall Entrance Building Facade 150mm 250mm SS304 Satin FinishUS$ 10 - 30MOQ: 50 Pieces -
Curtain Wall Spider for Building Facade SS304 Material 200mm 250mm 300mm Precision Casting Satin FinishUS$ 10 - 30MOQ: 50 Pieces
-
SS316 Point Fixed Glass Bracket 3 Way Arm 200mm Mirror Finish Loading Capacity 500kgUS$ 10 - 30MOQ: 50 Pieces
-
Point Fixed Glass Bracket Standard Compliant Factory Direct 2 Way Arm SS316 250mmUS$ 10 - 30MOQ: 50 Pieces
-
SS304 Point Fixed Glass Bracket 4 Way Arm 250mm Heavy Duty for Glass Curtain WallUS$ 10 - 30MOQ: 50 Pieces
Material
Other, Stainless Steel 316
Type
4 Way Arm
Application
Glass Canopy
Surface Finish
Satin / Polished (optional)
Load Capacity
Heavy Duty (customizable)
Dimensions
Available upon request
Installation
Bolted / Tension
Brand
SENOTECH
Hefei SENOTECH New Materials Co., Ltd, a dynamic trading company established in 2020 with an annual export value of US$1–US$1.5 million, proudly presents our China Manufacturer Curtain Wall Spider SS316 4 Way Arm Heavy Duty for Glass Canopy. This premium stainless steel spider connector is engineered to deliver exceptional strength and reliability for modern glass canopy systems. Whether you are constructing a commercial atrium, a covered walkway, or an architectural glass shell, our 4-way arm spider provides the robust structural support and aesthetic elegance your project demands. Backed by our extensive global supply network and commitment to quality, this product is a trusted choice for architects, contractors, and façade engineers worldwide.
Key Features & Technical Specifications
- Premium Material: Crafted from Grade 316 stainless steel (SS316), offering superior corrosion resistance in coastal, industrial, and high‑humidity environments.
- 4‑Way Arm Design: Each spider accommodates four glass panels or cables, allowing efficient load distribution and clean geometric intersections.
- Heavy‑Duty Capacity: Engineered for high‑load applications such as glass canopies, curtain walls, and skylights; custom load ratings available upon request.
- Surface Finish Options: Choose from satin (brushed) or mirror‑polished finish to match architectural aesthetics. Custom finishes are also negotiable.
- Precision Manufacturing: CNC machined to tight tolerances, ensuring consistent dimensions and easy on‑site assembly.
- Versatile Compatibility: Works with standard tempered glass panels (6–21.52 mm) and cable systems. Adaptable to various canopy angles and slopes.
- Corrosion‑Resistant Hardware: All bolts, washers, and covers are also SS316, eliminating galvanic corrosion risks.
Typical Parameter Table
| Parameter | Value | Remarks |
|---|---|---|
| Material | SS316 (1.4401) | >0.08% Carbon, 2-3% Mo |
| Arm Length | 100–300 mm (customizable) | Per arm from center |
| Base Plate Diameter | 80–150 mm | Depends on model |
| Load Capacity (per arm) | Up to 4 kN (tested) | Contact for specific values |
| Surface Finish | Satin #320 / Mirror #600 | Other finishes on request |
| Weight | 1.5–4.5 kg per unit | Varies by size |
Advantages & Customer Benefits
- Enhanced Durability: SS316 withstands harsh weather, salt spray, and UV exposure, reducing maintenance costs over the building’s lifespan.
- Time‑Saving Installation: Pre‑drilled holes and standard bolt patterns allow quick alignment and fastening, cutting labor time by up to 20%.
- Design Flexibility: The 4‑way arm supports both orthogonal and angled configurations, enabling creative canopy shapes without compromising structural integrity.
- Cost‑Effective Solution: Direct factory pricing from a Chinese manufacturer eliminates middle‑man markups, while large order discounts are available.
- Global Compatibility: Meets international dimensional standards; drawings and 3D models supplied for seamless integration into your structural design.
Trusted by clients across North America, South America, Europe, Asia, Africa, and Oceania, our curtain wall spiders have been used in shopping malls, airports, hotels, and office buildings. With annual exports exceeding US$1 million, we consistently deliver on time and respond to inquiries within 24 hours. Our dedicated team provides technical drawings, load calculations, and sample support to ensure your project’s success.
Ready to elevate your glass canopy project? Contact Hefei SENOTECH New Materials Co., Ltd today for a quotation, technical datasheet, or free sample evaluation. Let our experience work for you.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between SS304 and SS316 for this spider?
A: SS316 contains molybdenum, offering superior resistance to chlorides and acidic environments, making it ideal for coastal or chemical‑exposed areas. For standard indoor canopies, SS304 may also be used; we can supply both upon request. -
Q: Can I get custom arm lengths or angles?
A: Yes, we offer custom sizes and angles. Please provide your design requirements, and our engineering team will prepare a tailored solution with a quick turnaround. -
Q: How is the spider attached to the glass and the structure?
A: Typically, the spider is bolted to a steel or concrete substructure using anchor bolts. Glass panels are connected via patch fittings or point‑fixed bolts through pre‑drilled holes. Detailed installation instructions are provided. -
Q: What is the maximum glass thickness this spider can hold?
A: The standard design supports glass from 6 mm to 21.52 mm laminated. For thicker or asymmetric glass, please consult our technical team for a custom adaptation. -
Q: Do you provide samples? Are there any costs?
A: Yes, we provide samples for evaluation. Sample cost is refundable upon bulk order placement; shipping cost is borne by the buyer. Contact us for sample availability. -
Q: What is the lead time for a standard order?
A: For standard sizes (100–200 mm arm length), lead time is 15–20 days after deposit confirmation. Custom orders may require 25–30 days depending on complexity. -
Q: Is the product tested for load capacity?
A: Yes, our spiders undergo load testing in our facility. We can provide test reports for specific load ratings upon request. The product is designed to meet common industry standards. -
Q: Can you supply other curtain wall accessories like tension rods or turnbuckles?
A: Absolutely. We offer a complete range of stainless steel curtain wall hardware, including cable systems, rod systems, and glass fittings. Please inquire for a full catalog.
