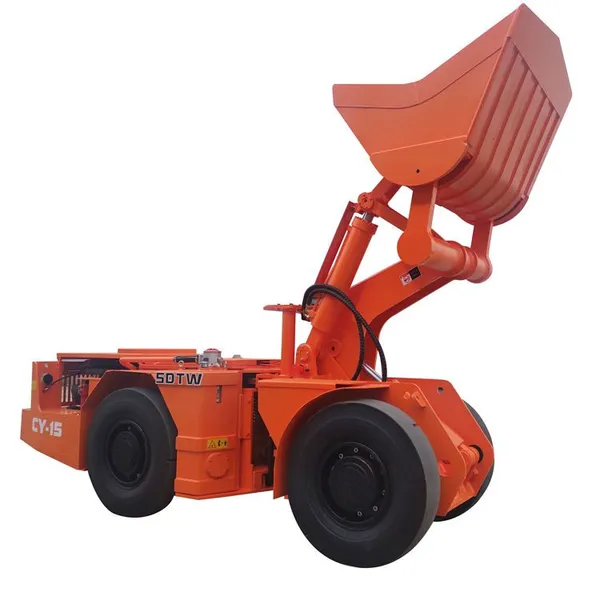

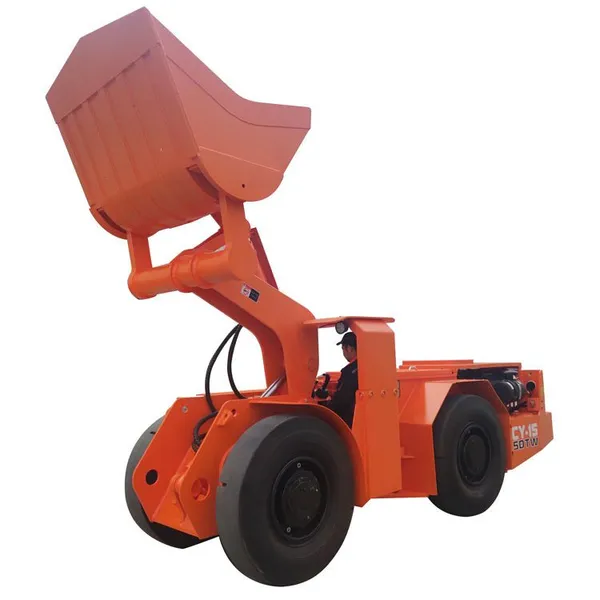

Help CenterUnderground Wheel Loader, Underground Mine Scooptram Good Price 2 Tons 1 Cbm
Product Spotlights
Humanized design, pilot control, full hydraulic steering, lightweight and flexible operation.
Exhaust gas purification system,powerful motivation,ultra-low emissions, meeting demanding working conditions.
Reinforced front and rear drive axles, increased carrying capacity, and significantly reduced failure rate. Modular frame design, meeting minimum wellhead installation requirements.
Related Products
-
DS3 Full Hydraulic Tunnel Self-drilling Bolting Anchor Rock Drilling Rig Machine Self Drilling RigNegotiableMOQ: 1 Set -
DL2-HS Underground Mining Deep Hole Drilling Rig for Development High-Performance Drill Rig for Mining OperationsNegotiableMOQ: 1 Combo
-
HP4 Shotcrete Sprayer for Mining Industry Chuangda Designed Concrete Spraying Machine for Underground EnvironmentsNegotiableMOQ: 1 Combo
-
Jumbo Drill Rig for Ore Extraction and Rock Reinforcement in Confined Mining AreasNegotiableMOQ: 1 Set
-
Face Drilling Jumbo Machine for Underground Mining Project Drilling RigNegotiableMOQ: 1 Combo
The JS-1 mining loader instruction:
Humanized design, pilot control, full hydraulic steering, lightweight and flexible operation.
Exhaust gas purification system,powerful motivation,ultra-low emissions, meeting demanding working conditions.
Reinforced front and rear drive axles, increased carrying capacity, and significantly reduced failure rate. Modular frame design, meeting minimum wellhead installation requirements.
Strengthened frame design, greatly enhanced impact resistance. Advanced technology, eliminating the belt-driven gear pump system,
adopting axial series connection, improving efficiency and reducing failure rate.
High-strength tire
Deep and wide patterns provide excellent grip and wear resistance, suitable for complex working conditions with long service life.
Reinforced bucket
Constructed with high-strength materials and thickened craftsmanship, it is durable and wear-resistant, greatly extending its service life.
Spacious and Comfortable cabin
Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable.
Hydraulic System
Optimizing structure and sealing technology, hydraulic pumps can reduce energy consumption and improve overall machine efficiency
and performance.
Engine
The intake manifold is designed with reasonable structure, which can provide sufficient and clean air to the engine, ensuring complete combustion, improved power performance, and enhanced fuel efficiency.
Fuel Filter
High-precision filtration, removing fuel contaminants, preventing injector failure, ensuring engine combustion and performance.
Model |
JS-1E |
||
Dipper capacity(m³) |
1m³(Customizable) |
Discharge Angle |
40° |
Nominal Load(kg) |
2000 |
Minimum ground clearance(mm) |
200 |
Maximum Digging Force (KN) |
48 |
Rear Axle Swing Angle |
±8° |
Maximum Drawbar Pull(KN) |
54 |
Wheelbase |
2200 |
Minimum Unloading Height(mm) |
860 |
Working voltage(v) |
380 |
Maximum Dump Height(mm) |
1180 |
Tire Size |
10.00-20 |
Gradeability (fully loaded) |
≧16° |
Cable Type |
3*16+1*10 |
Minimum Turning Radius |
Outer side: 4260mm Inner side: 2150mm |
Motor Type/Power |
HM2-2-225S-4/45 |
Maximum Steering Angle(Left and right) |
38° |
Dimensions (Length × Width × Height) |
6060×1380×2000 |
Exit angle |
16° |
Drive Axle |
Spring brake, hydraulic release wet drive axle |
Ground speed(Two-way) |
0-8km/h |
Braking System |
Combining working brake and parking brake functions, spring applied and hydraulic released. |
Machine weight(kg) |
7150 |
