When selecting sawing equipment, metalworking enterprises must comprehensively consider processing range, efficiency, stability, and operating costs.

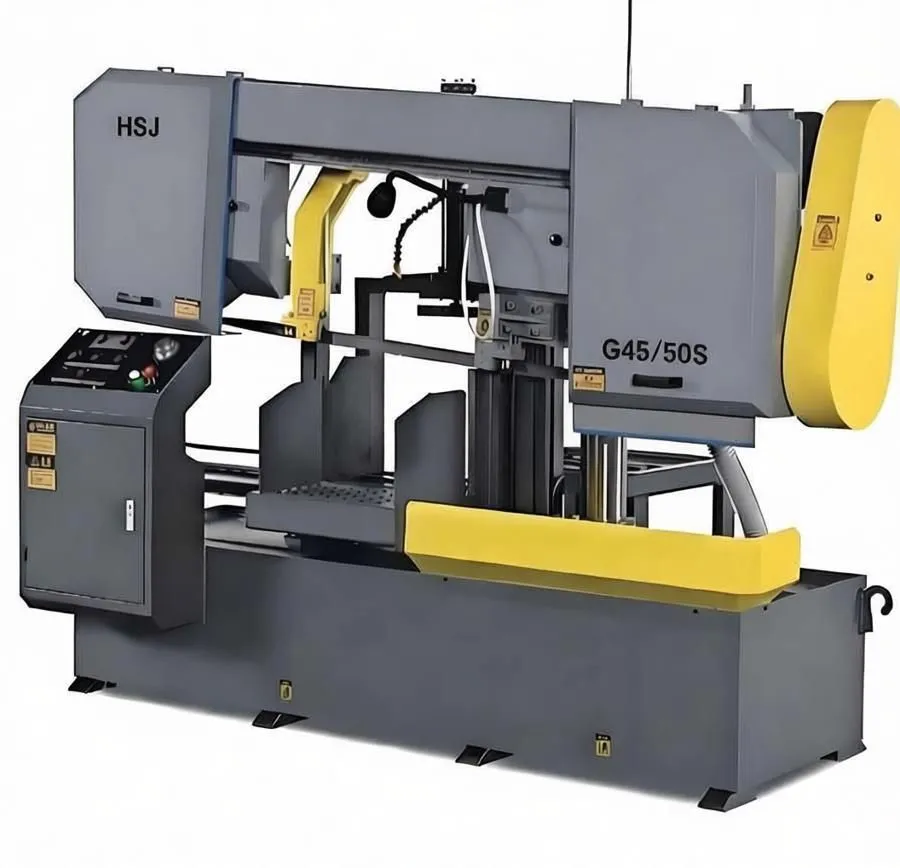

The Hongsheng Jieche Specialized Horizontal Metal Strip Saw Machine G45/50S, operating within a processing range of 450×500 mm, offers a cost-effective solution for manufacturing special-shaped components such as profiles, pipes, and angle steels, thanks to its optimized configuration and dual-wheel design.

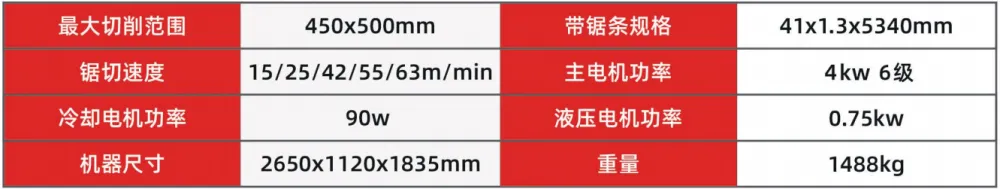

Device Parameter Overview:
Maximum processing capacity: 450 mm in height × 500 mm in width
Standard saw blade specifications: 5340 × 41 × 1.3 mm
-Spindle speed: 15/25/42/55/63 m/min (five-speed range)
-Motor configuration: 4 kW main motor (6-pole), 0.75 kW hydraulic motor, 90 W cooling motor
-Equipment weight: 1488 kg
-Dimensions: 2650 × 1120 × 1835 mm (length × width × height)
design feature ：
The combination of large and small wheels represents a structural highlight of this model.
The large-diameter drive wheel is located on one side of the machine body, providing ample power reserve; the small-diameter tension wheel is positioned on the opposite side, working with the tensioning mechanism to maintain proper tension in the saw blade.
This design ensures smooth saw blade operation, minimizing vibration and deviation when cutting large workpieces.
The five-speed mechanical transmission is switched via a lever and can be adjusted without stopping the machine (some gears require shutdown).
It offers a wide speed range, from 15 m/min at low speeds to 63 m/min at high speeds, making it suitable for various materials including high-hardness steels and aluminum alloys.
The 4 kW six-pole motor exhibits excellent torque characteristics, providing sufficient cutting force even at low speeds.
The hydraulic system uses a gear pump for oil supply, providing stable and reliable pressure.

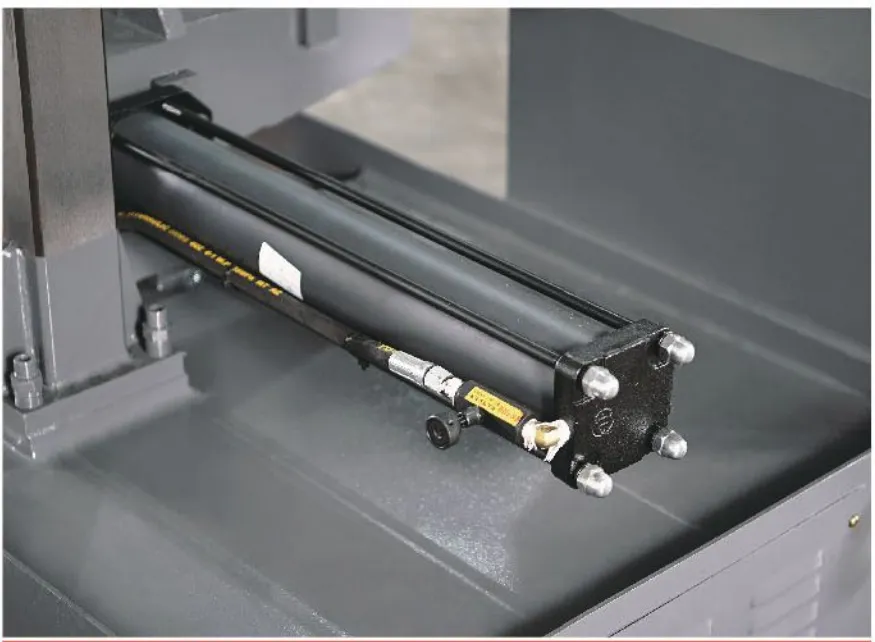

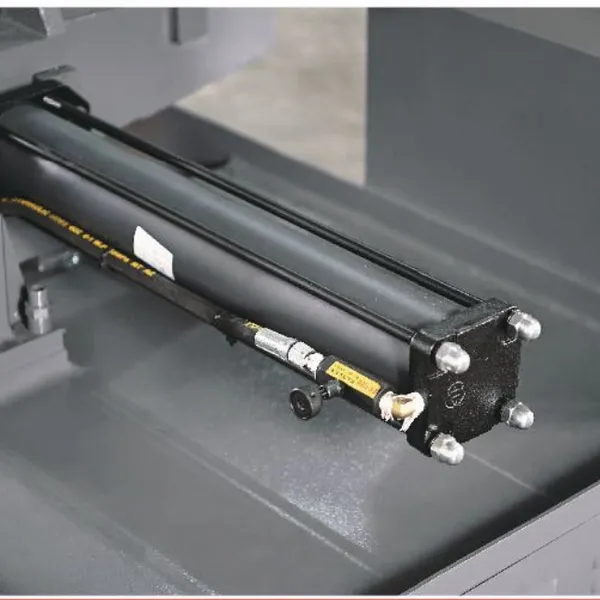

The clamping cylinder and feed cylinder share the same hydraulic station, resulting in a simplified structure with fewer maintenance points.
The cooling system operates independently, with a moderately sized cutting fluid tank equipped with a filter screen to remove cuttings.
Hongshengjie's product line covers a variety of saw machines: the scissor-type metal band saw is ideal for small workpieces and maintenance tasks; the semi-automatic model features automatic feed; the angle-turning type can perform bevel cuts at 45–60 degrees; the intelligent model offers automatic speed adjustment; the specialized profile-cutting series comes in multiple specifications; and the steel bar band saw is designed for precise cutting of construction steel sections.
A wide range of product types enables customers to make one-stop purchases.
