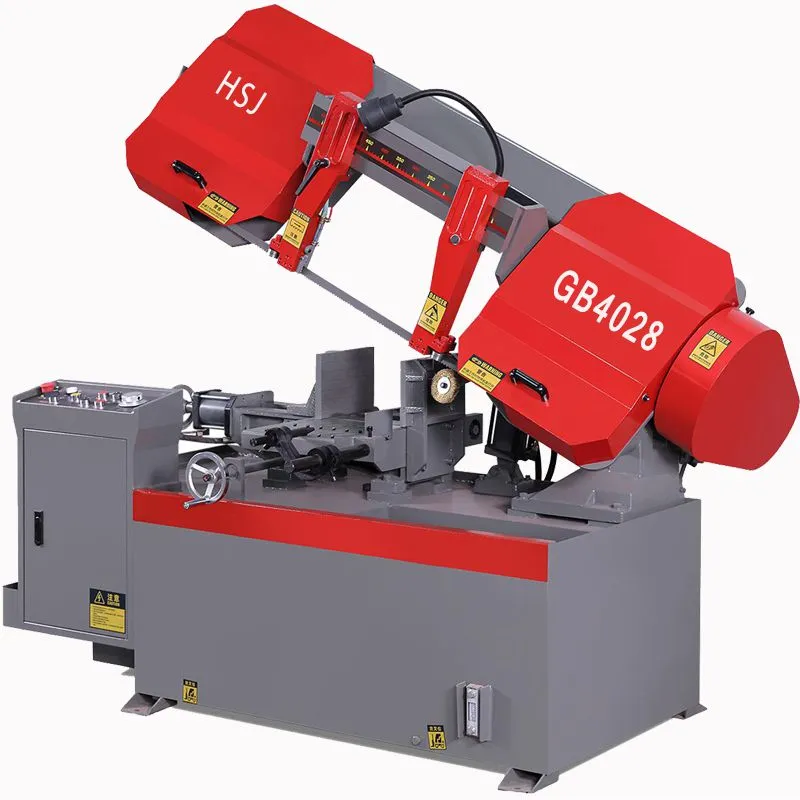

The Hongshengjie 4028 horizontal semi-automatic band saw machine is the main cutting equipment for cutting round steel and square materials in small and medium-sized processing plants. The scissor type horizontal structure is solid and durable, suitable for various profiles such as carbon steel, stainless steel, alloy round bars, solid square steel, etc., balancing cost-effectiveness and cutting stability. It is a commonly used model in five metal, machinery, and forging workshops.

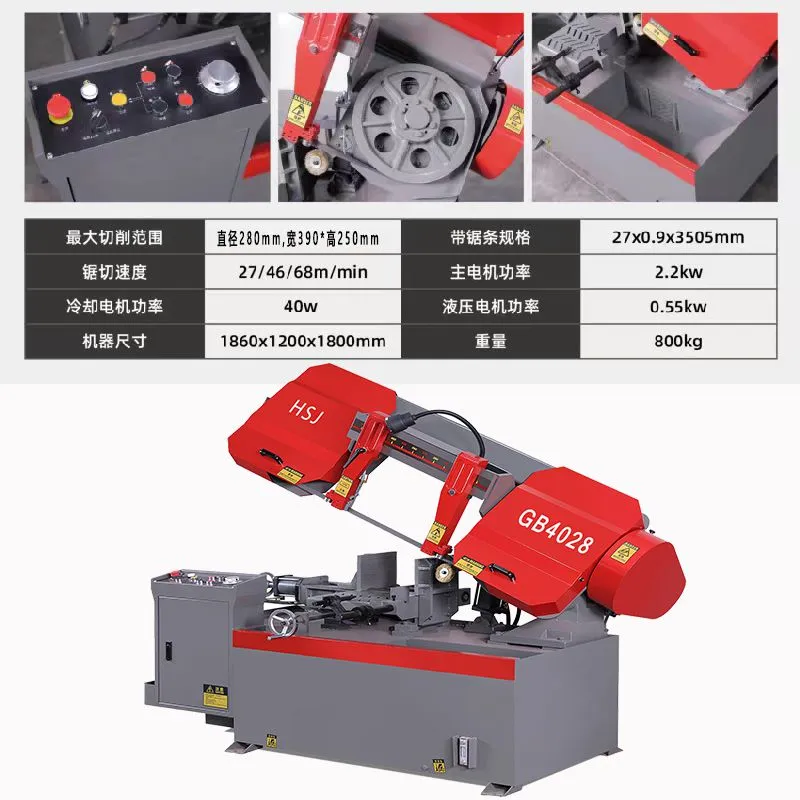

This device has a sufficient standard cutting range, with a maximum cutting capacity of Φ 280mm round steel and a processing size of up to 250 × 390mm for square materials. Conventional solid bar materials, square materials, etc. can be clamped and formed in one go. The whole machine adopts a hydraulic clamping design, with uniform clamping force. When cutting thick round steel and heavy square materials, it will not slip or deviate, and the cutting surface will be smooth without any broken edges; The feed system supports hydraulic stepless speed regulation, which can flexibly adjust the cutting speed according to the hardness of the steel. Cutting carbon steel accelerates the feed to improve efficiency, and cutting stainless steel slows down to protect the saw blade, adapting to different material processing needs.

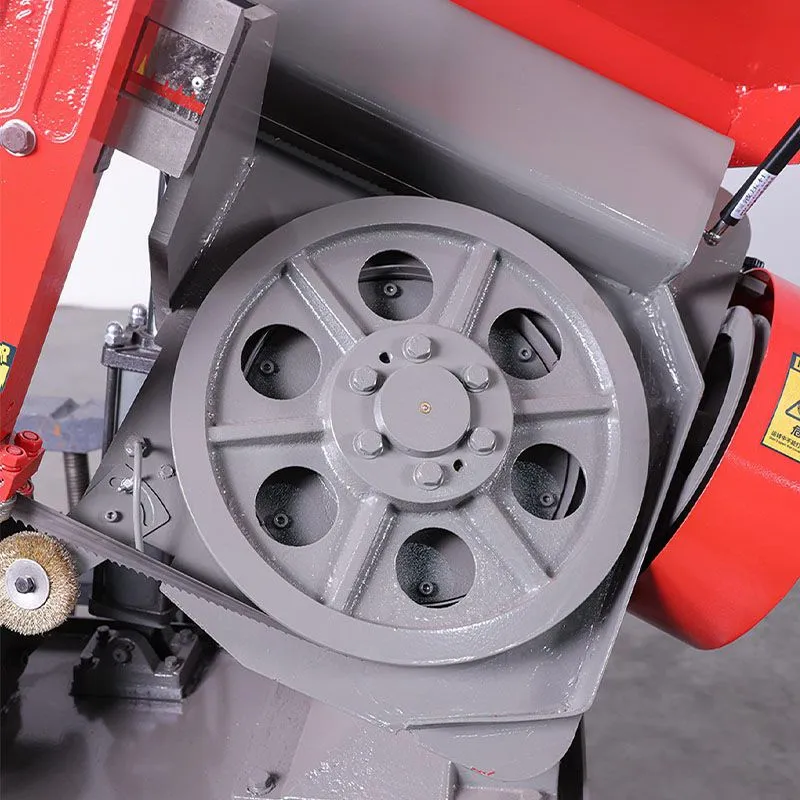

The device is equipped with multi speed saw belt speed regulation, paired with Hongshengjie's 27mm wide M42 bimetallic band saw blade. The tooth profile can be selected in various specifications including coarse, medium, and fine. The coarse toothed saw blade cuts large-diameter round steel and thick square steel smoothly, without easily sticking chips and blocking teeth; Medium and fine teeth are suitable for thin-walled square materials and stainless steel profiles, greatly reducing the problems of slag hanging and burrs. The combination of hard alloy guide blocks and rolling bearings limits the vibration of the saw blade during operation, effectively reducing the probability of deviation and breakage, extending the service life of the saw blade, and reducing consumable costs.

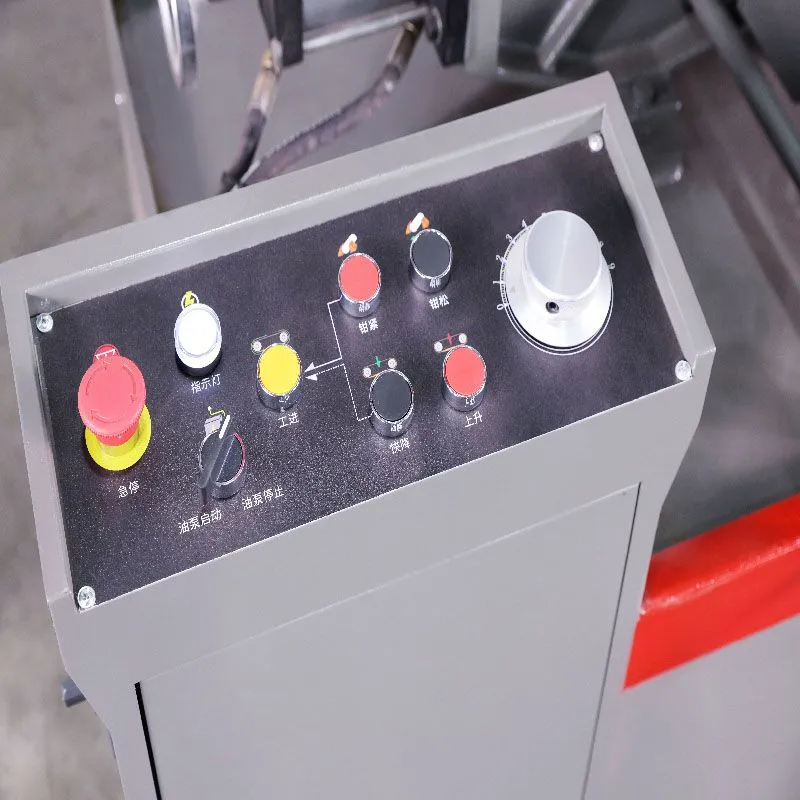

The operation adopts a simple button semi-automatic cycle. After manual feeding and positioning, it can be started with one click. The saw frame automatically descends and cuts, and after completion, it automatically lifts and resets. The threshold for getting started is low, and beginners can operate proficiently in a short time. The whole machine is equipped with a circulating cooling system, which continuously sprays cutting fluid for cooling and lubrication. High temperature cutting is not easy to burn teeth, ensuring continuous feeding stability.
Compared to fully automatic sawing machines, the 4028 semi-automatic model has lower investment costs, smaller footprint, and simpler maintenance, making it suitable for daily cutting of small and medium-sized round steel and square materials. The equipment is matched with Hongshengjie's own saw blade set before leaving the factory, without the need for repeated debugging and adaptation. It solves the problem of equipment and consumables procurement in one stop, and the comprehensive cost of long-term use is more cost-effective.
