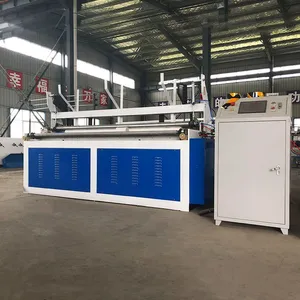

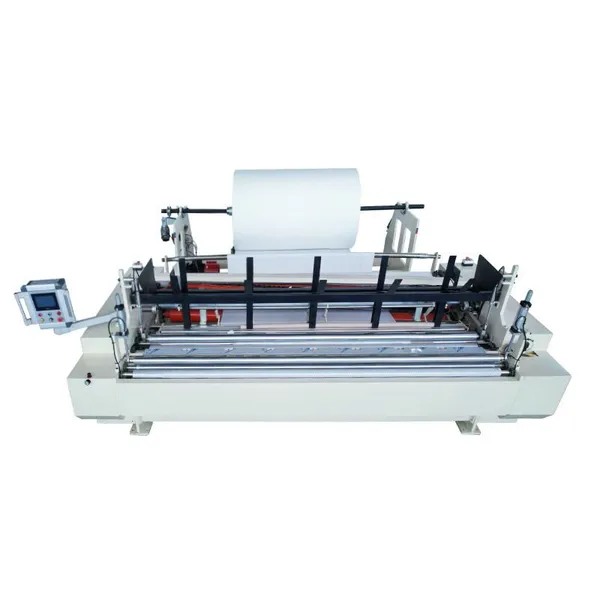

Help CenterFully Automatic Toilet Paper Roll Rewinding Machine With Perforating and Embossing
Product Spotlights
PLC Control System: The PLC control system ensures precise and efficient operation, providing better automation and reducing manual intervention.
Variable Frequency Speed Control: Variable frequency speed control enables flexible adjustment of production speed, optimizing efficiency and energy consumption.
Related Products
-
Small Business Machines Toilet Tissue Making Machine Paper Low Price Tissue Paper Machine PriceNegotiableMOQ: 1 Piece -
Low Cost Toilet Tissue Paper Machine Automatic Paper Loading Mini Toilet Paper Making MachineNegotiableMOQ: 1 Piece
-
Cheap Price Toilet Paper Making Plant Small Toilet Tissue Paper Making Machine for Small BusinessNegotiableMOQ: 1 Piece
-
Industrial Toilet Paper Making Machine Tissue Production Line EquipmentNegotiableMOQ: 1 Piece
-
Automatic Toilet Paper Machinery Toilet Tissue Roll Manufacturing Cutting Rewinding Production Line Toilet Paper Making MachineNegotiableMOQ: 1 Piece
Automatic Core Coreless Toilet Paper Machine Production Line Embossed toilet paper Toilet Paper Making Machine
Toilet Tissue Paper Making Machine Production Line is used for rewinding jumbo paper to smaller roll, ready for cutting in next cutting step. It can automatically gluing, cutting when roll finished, has synchronous transmission system. Our machine can load three roll (three layers) the the same time. Pneumatic paper loading system is equipped to save human labor.
Toilet Tissue Paper Roll Making Machine Working Principle:

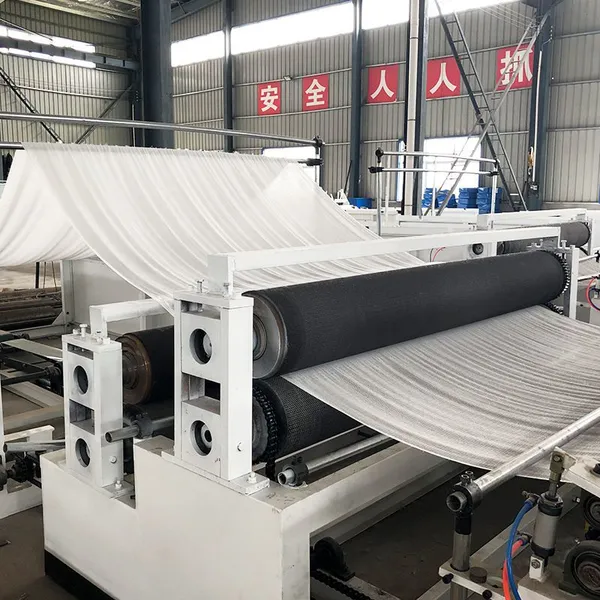

Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing
1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length required by the customer.
3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
Specification
Machine Model |
VL-1800/2200/2400/2600/3000 |
Raw Paper Weight |
12-40 g/m2 toilet tissue paper jumbo roll |
Finished Diameter |
50mm-200mm |
Finished Paper Core |
Diameter 30-55 mm (Please Specify) |
Total Power |
5.5kw-10 kw |
Production Speed |
150-300m/min |
Voltage |
220/380V, 50HZ |
Back Stand |
Three layers synchronous transmission |
Perforation Pitch |
80-220mm,150-300mm |
Punch |
2-4 Knife, Spiral Cutter Line |
Hole Pitch |
Positioning of Belt and Chain Wheel |
Control System |
PLC Control, Variable Frequency Speed Control, Touch Screen Operation |
Embossing |
Single Embossing, Double Embossing |
Drop Tube |
Manual, Automatic (Optional) |
