#45 clamps for SMT reflow accessory (L=25.3mm)
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#45(L=25.3mm)
Usage: Postion and Fixed
Material: plastic and Stainless steel
Structure: SMT reflow clamp
Standard or Nonstandard: Standard
Product Parts: A set of 7 parts

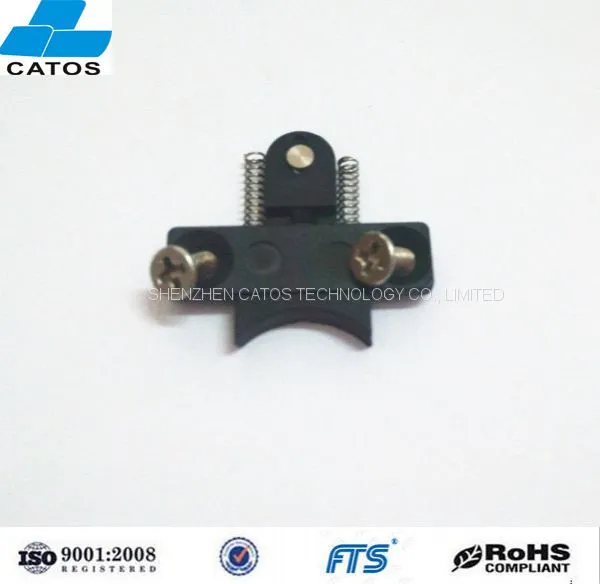

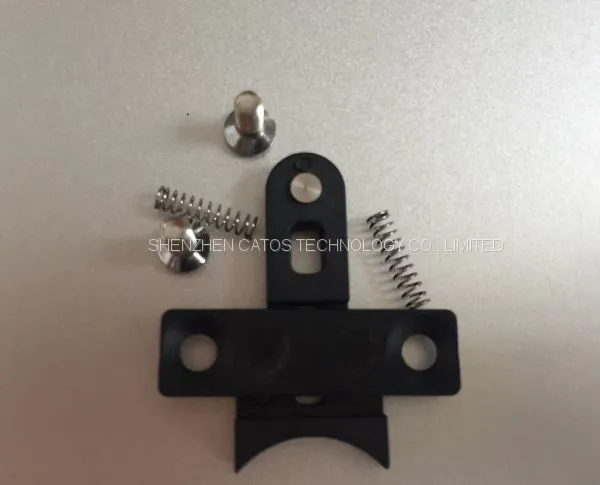

A set include: 2 pcs plastic parts+2 pcs spring+2 pcs screw+1pc dowel pin
(Remarks:dowel pin is customized specially according to your data;Hope you can kindly advise us below two data:
Data 1 :What is the thickness of your PCB?
Data 2:What is the diameter of dowel pin?)
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
Specifications 1.Free samples
2.Hight temperature resistent.
3.Clamps for SMT fixture to hold PCBA
I.Features
1) .Designed specifically for use in SMT reflow solder operations
2) .Mostly made from plastic and Stainless steel

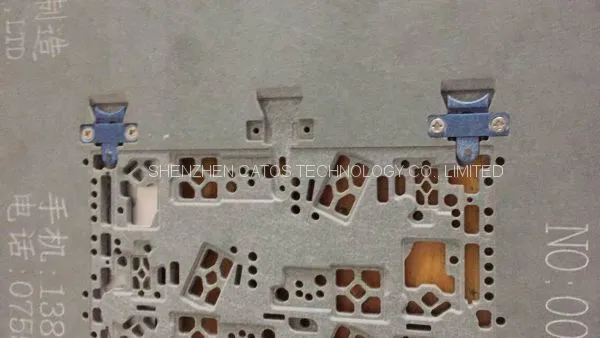

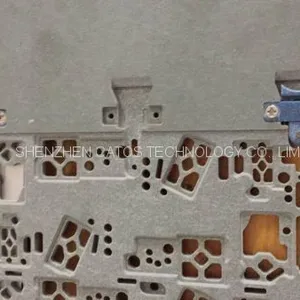

3).It is clamped on SMT fixture to hold PCBA.
II.Function and Application
III.Structure
MATERIAL : |
Product Parts: A set of 7 parts |
TEMPERATURE RATING : |
(>200° C) |
DRAWING : |
Available for you
|
IV.Service:
1).Technical Drawing of #45 holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
