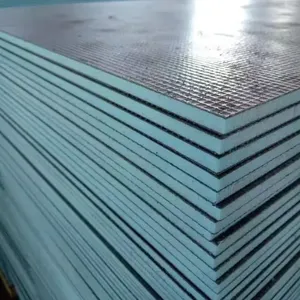

As a leading manufacturer since 1984, DaCheng BangMei specializes in premium building solutions from our 100,000+ sqm facility in Langfang, China. Our ISO9001-certified XPS Underfloor Heating Panel revolutionizes floor heating installations with its rapid, moisture-resistant technology. Engineered for global climates from Northern Europe to Oceania, this panel ensures energy-efficient warmth beneath any flooring type.
Core Advantages:
Time-Saving Installation: Pre-cut channels and interlocking edges reduce labor time by 40% compared to traditional methods
Superior Moisture Resistance: Closed-cell XPS structure prevents water absorption (≤0.7% by volume)
Enhanced Thermal Performance: Minimizes heat loss with thermal conductivity ≤0.035W/mK
Universal Compatibility: Works with tile, wood, laminate, and vinyl flooring systems
Weight-Bearing Capacity: Supports up to 25 tons/m² without deformation
Technical Specifications:
| Parameter | Value | Testing Standard |
| Density | 35-40 kg/m³ | ISO 845 |
| Fire Rating | Class E (EN 13501-1) | EN 11925-2 |
| Pipe Channel Depth | 16mm / 20mm | Customizable |
| Operating Temp Range | -50°C to +75°C | EN 12667 |
The aluminum heat diffusion layer (optional) increases thermal conductivity by 30%, while the pre-installation moisture content remains below 1.5%. Panels feature color-coded edge markings for effortless pipe spacing configuration.
Project Benefits:
Reduces heating energy consumption by 15-25% versus conventional systems
Eliminates 48-hour curing wait time for floor adhesives
10% faster heat-up response compared to EPS alternatives
Zero formaldehyde emission (tested per JIS A 1460)
Trusted by contractors across 50+ countries including North America and Western Europe, our panels are precision-manufactured in climate-controlled facilities. With ISO9001 quality assurance and 30-day lead times for bulk orders, DaCheng BangMei delivers reliable thermal solutions for commercial and residential projects. Contact our technical team for custom dimension configurations and project-specific thermal calculations.
Frequently Asked Questions:
Q: How soon can flooring be installed after panel placement?
A: Immediate installation is possible due to near-zero moisture absorption.Q: Are these compatible with electric underfloor heating?
A: Designed specifically for hydronic systems; consult us for electric alternatives.Q: What's the R-value per inch?
A: Approximately R-5 per inch (25mm) at 35kg/m³ density.Q: Do you provide installation guides?
A: Comprehensive multilingual manuals with CAD drawings are included.Q: Can panels be cut onsite for irregular rooms?
A: Yes - standard woodworking tools can trim panels without special equipment.Q: What's the warranty period?
A: 15-year material integrity guarantee against manufacturing defects.Q: Are edge insulators included?
A: Perimeter insulation strips are available as optional accessories.Q: Minimum order quantity for customization?
A: 500m² for non-standard sizes and groove patterns.
