As a leading manufacturer with decades of experience in building materials, DaCheng BangMei is proud to introduce our high-performance XPS Underfloor Heating Panel. Designed specifically for dry floor heating applications, this panel provides an efficient, reliable, and easy-to-install foundation for modern radiant heating systems. Our commitment to quality, backed by our extensive manufacturing capabilities and international certifications, ensures you receive a product that delivers consistent thermal performance, structural integrity, and long-term value for your construction or renovation projects.
Our XPS Underfloor Heating Panels are engineered to optimize the performance of dry floor heating systems. The key to an efficient radiant floor is effective insulation that directs heat upward into the living space. Our panels serve as both a thermal break and a structural base, offering significant advantages over traditional installation methods.
Superior Thermal Insulation: The closed-cell structure of Extruded Polystyrene (XPS) provides excellent thermal resistance, minimizing downward heat loss and ensuring maximum energy efficiency for the heating system.
High Compressive Strength: These panels are designed to withstand the static loads of floor finishes (tile, wood, laminate) and dynamic loads from furniture and foot traffic without compromising their insulating properties.

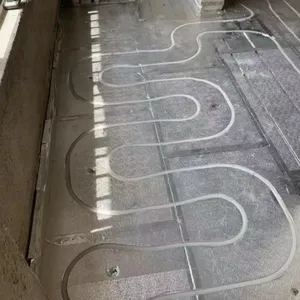

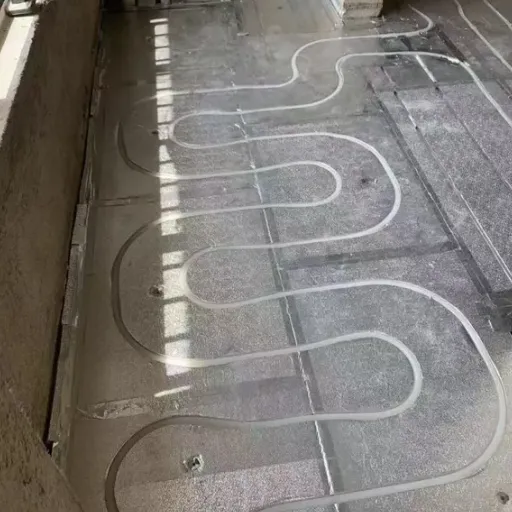

Pre-Grooved Design: The surface features precisely machined grooves or channels that securely hold the PEX heating pipes or electric heating cables, simplifying and speeding up the installation process.
Moisture and Mold Resistance: XPS is highly resistant to water absorption, preventing moisture-related issues like mold growth, rot, and degradation of insulating performance, making it suitable for ground floors and bathrooms.
Lightweight and Easy to Handle: Despite its strength, the panel is lightweight, making it easy for installers to transport, cut, and fit on-site, reducing labor time and costs.
Dimensional Stability: The panels maintain their shape and size over time and under varying temperature conditions, preventing gaps or movement that could affect heating efficiency.
The following table outlines common specifications available. Custom sizes, thicknesses, and groove patterns are available upon request to suit specific project requirements.
| Parameter | Specification / Option | Notes |
|---|---|---|
| Standard Panel Dimensions | 1200 mm (L) x 600 mm (W) | Other sizes customizable |
| Available Thickness | 20mm, 30mm, 40mm, 50mm | Affects R-value/insulation level |
| Core Material | Extruded Polystyrene (XPS) | Closed-cell foam |
| Standard Density | 30-40 kg/m³ | Provides optimal strength/weight ratio |
| Surface Feature | Pre-cut grooves/channels | For pipe/cable routing |
| Edge Design | Tongue and Groove | Ensures tight, continuous insulation layer |
| Color | Typically light gray/blue | Standard industry color |
Choosing our XPS panels translates into direct benefits for builders, contractors, and end-users. For installers, the system reduces installation time significantly compared to wet systems (concrete pours). The lightweight panels are easy to cut and fit around obstacles. For project managers and builders, it allows for faster project turnaround times and creates a clean, dry worksite. For the building owner, the system provides a highly responsive heating solution with lower energy consumption due to minimized heat loss. The even heat distribution eliminates cold spots and increases comfort. Furthermore, the dry system allows for easier access to subfloor utilities if needed in the future.
With a legacy dating back to 1984 and operating from a facility spanning over 100,000 square meters, DaCheng BangMei combines traditional manufacturing expertise with modern quality control. Our products, including these XPS Underfloor Heating Panels, are produced under a management system compliant with international standards. Our panels are trusted in diverse markets worldwide, from North America and Western Europe to Southeast Asia and Oceania, proving their adaptability to different climates and building standards. This global acceptance is a testament to their reliability and performance. When you source from us, you are not just buying a panel; you are investing in a component backed by nearly four decades of manufacturing excellence, rigorous production controls, and a commitment to supporting your project's success with a product that performs as promised.
Frequently Asked Questions (FAQ)
Q: What is the main advantage of a dry system using XPS panels over a traditional wet (concrete) underfloor heating system?
A: Dry systems offer much faster installation as there is no waiting for concrete to cure. They are lighter, create less mess, and allow for easier future access to the subfloor. XPS panels provide excellent insulation right at the point of installation.
Q: Can these panels be used with both hydronic (water-based) and electric underfloor heating?
A: Yes, absolutely. The pre-grooved design is compatible with standard PEX piping for hydronic systems and also provides a secure channel for electric heating cables or mats.
Q: What floor finishes are compatible with this system?
A: The system is designed for use with a variety of floor finishes including engineered wood, laminate, vinyl planks, and carpet tiles. For ceramic or stone tile, a suitable decoupling membrane or thin-set mortar is applied directly over the panels and pipes.
Q: Is a vapor barrier required underneath the XPS panels?
A: For ground-floor applications or areas with potential moisture vapor drive from below, installing a separate polyethylene vapor barrier on the subfloor before laying the panels is a recommended best practice, even though XPS itself has low permeability.
Q: How do I handle cutting and fitting around room obstacles like columns or pipes?
A: The panels are easily cut using a standard utility knife or a fine-toothed handsaw. The lightweight nature makes them simple to maneuver and trim for a perfect fit around any obstruction.
Q: What is the typical thermal resistance (R-value) of these panels?
A: The R-value depends on the panel thickness and the specific density of the XPS. For example, a 30mm panel might have an R-value of approximately 1.0 m²·K/W. Exact values for our specific product grades are available upon request.
Q: Are these panels environmentally friendly?
A: XPS is a highly durable material with a long service life, contributing to the energy efficiency of a building for decades. Many XPS formulations use non-CFC blowing agents. Specific environmental data sheets for our product can be provided.
Q: Do you offer custom panel sizes or groove spacing?
A: Yes, as a manufacturer with significant production capacity, we can customize panel dimensions, thicknesses, and groove patterns to meet the specific requirements of large or unique projects. Please inquire with your project details.
