This series of residential elevators is suitable for single-family villas, rural self-built houses, duplex lofts and retrofitting of old buildings. It features multiple drive types including steel belt traction elevators, shaftless screw elevators and hydraulic elevators. Customized one-on-one solutions are available based on building space, floor height and civil engineering conditions, balancing practicality, safety and interior aesthetics. Designed for passenger travel between 2 to 5 floors, the elevators have a load capacity ranging from 260kg to 400kg, comfortably accommodating 3 to 5 passengers. Wheelchairs and strollers can pass through smoothly, effectively solving mobility difficulties for elderly and children at home.

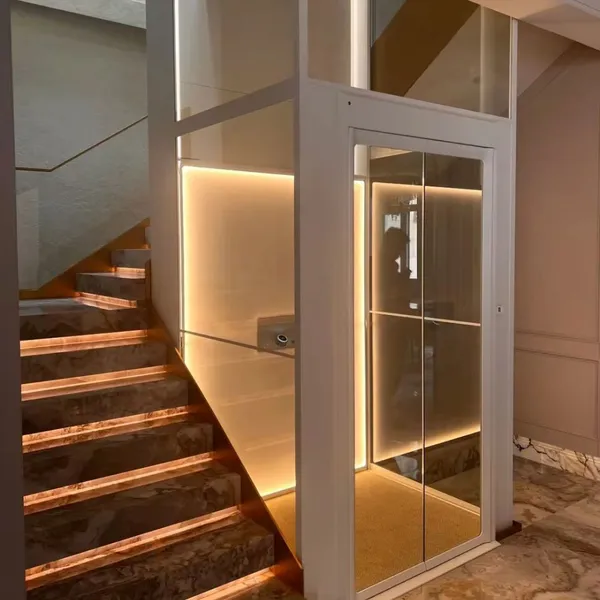

Boasting outstanding space adaptability, the screw-type model requires no deep pit or independent machine room, with a minimum floor footprint of less than 1 square meter. It can be installed in the middle of staircases, indoor patios or wall corners. The machine-room-less traction variant only needs a shallow pit and fits standard residential top floor heights. Hydraulic models are ideal for units with low top floors or restricted civil renovation conditions. Equipped with an integrated aluminum alloy panoramic hoistway as standard, customers may opt for single-sided, three-sided or full four-sided tempered glass car enclosures that maximize natural light. The light-luxury appearance complements a wide range of interior styles, including modern, new Chinese and minimalist designs.
All units are equipped with a permanent magnet synchronous silent drive system for smooth, jolt-free operation with in-car noise below 50 decibels. Soft start and stop prevent items from shifting inside the cabin. Powered by standard 220V household electricity, the elevators deliver low energy consumption and eco-friendly performance with reduced long-term maintenance costs. Complete safety protection systems come as standard: infrared light curtain door protection, emergency stop button, automatic leveling device for power outages, overload alarm, anti-fall protection, emergency lighting and intercom system. Multi-layer safety safeguards eliminate hidden risks for worry-free household use.
Customizable car interior materials are offered, such as stainless steel, wood veneer, light-luxury metal and stone panel cabin walls. Additional intelligent functions include touchscreen landing calls, voice elevator calling and remote fault monitoring for user-friendly operation. The manufacturer provides one-stop full services including on-site measurement, solution design, whole-unit production, on-site installation and regular maintenance, with nationwide construction coverage. Comprehensive whole-machine warranty and full-cycle after-sales support are guaranteed, fulfilling the one-stop vertical transportation demands of villa and self-built home owners.
