Welcome to Deqing Leixin Coating Equipment Co., Ltd. — Your Trusted Partner in Industrial Coating Solutions.
Since 2011, we have been manufacturing high-performance powder coating booths designed for the most demanding industrial applications. Our Manual Powder Spray Booth for Large Metal Fabrication Parts in Automotive Manufacturing is engineered to handle oversized components with precision, efficiency, and operator safety. With a factory spanning 1,000–3,000 square meters and an annual export value of US$1–1.5 million, we serve markets across North America, South America, Europe, Asia, and more. This booth combines robust construction, intelligent airflow design, and modular flexibility — all backed by our ISO9001-certified quality management system.
Whether you are coating heavy truck chassis, automotive body panels, or structural steel parts, our manual spray booth delivers consistent finish quality while optimizing powder usage. Designed for easy operation and maintenance, it is the ideal solution for workshops that require reliable performance without the complexity of automated lines. Below, we break down the key features and specifications that make this booth a valuable asset for your production line.
Key Features & Technical Specifications
- Heavy-Duty Construction — Built from high-strength mild steel or optional stainless steel, with reinforced panels to withstand the rigors of large part handling. The modular design allows easy assembly and relocation.
- Optimized Airflow System — The booth incorporates a down-draft or cross-draft airflow pattern (as per customer layout) to ensure uniform powder distribution and minimal overspray. Air velocity can be adjusted between 0.3–0.5 m/s for optimal coating quality.
- High-Efficiency Filtration — Equipped with advanced cartridge filters achieving up to 99.9% collection efficiency. A pulse-jet cleaning system automatically purges filters, extending service life and maintaining consistent suction.
- Large Working Envelope — Customizable internal dimensions to accommodate parts up to 6 meters long, 3 meters wide, and 2.5 meters high. Special sizes available upon request.
- Explosion-Proof LED Lighting — The booth is fitted with high-lumen, low-heat LED luminaires that provide shadow-free illumination across the entire work area. All electrical components comply with international safety standards.
- Manual Powder Spray Guns — Comes with two professional electrostatic spray guns (optional upgrade to corona or tribo type) featuring adjustable voltage and powder output for precise control.

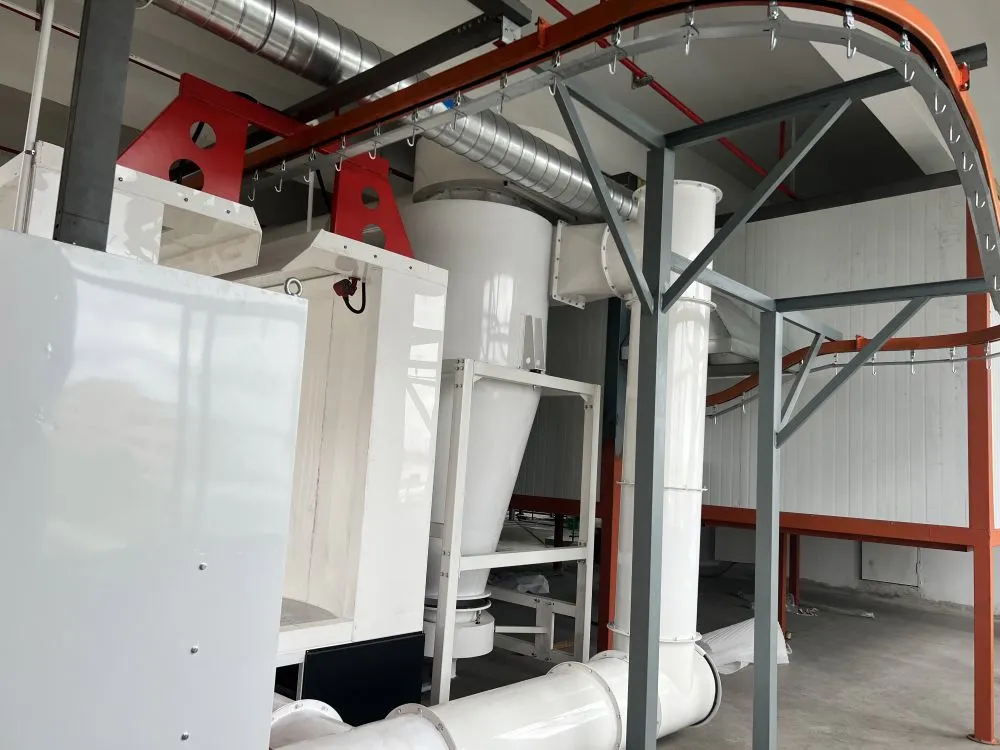

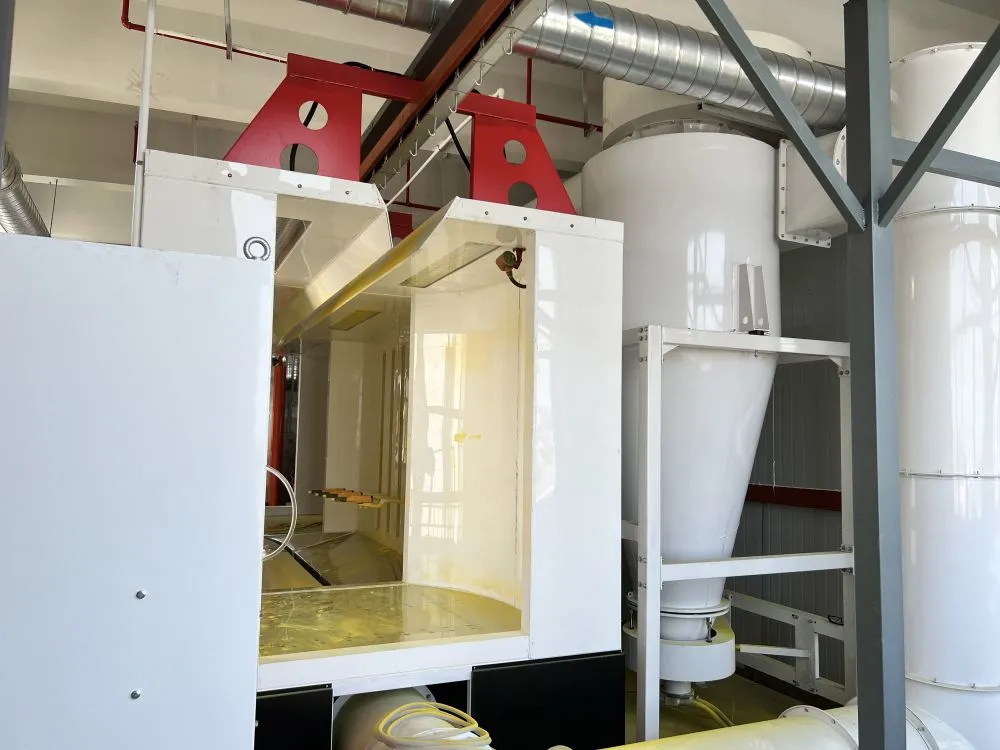

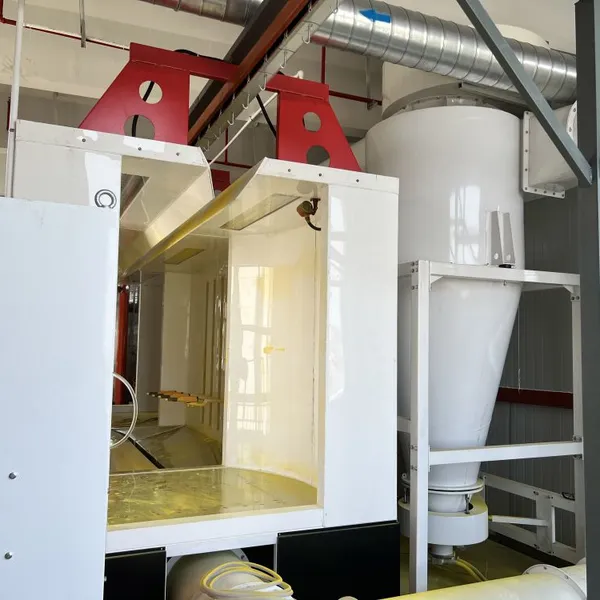

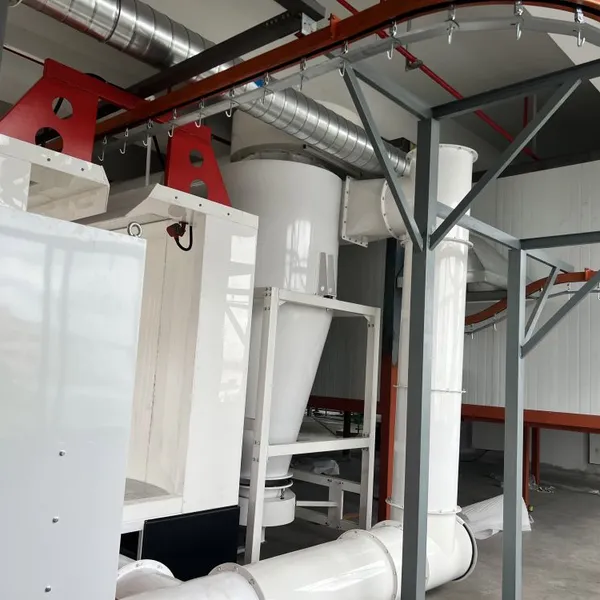

- Powder Recovery & Recycling — Integrated cyclone separator (optional) separates reclaimable powder from fine dust, reducing material waste by up to 30%. The recovered powder can be directly reused, saving costs.
- Safety & Compliance — Includes fire suppression system (optional), pressure relief panels, and grounding interlocks. Meets OSHA and CE requirements (CE certification available upon request).
- Easy Maintenance — Quick-release filter cartridges, large access doors for cleaning, and a sloped floor design that prevents powder accumulation. All surfaces are coated with anti-static paint to minimize dirt attraction.
Technical Data Table (Standard Configuration)
| Parameter | Specification |
|---|---|
| Internal Dimensions (L×W×H) | 6000 × 3000 × 2500 mm (custom) |
| Airflow Rate | 15,000–25,000 m³/h |
| Filter Cartridges | 8–12 pcs, polyester media |
| Lighting | 6–8 × 40W LED, ≥500 lux |
| Electrical Supply | 380V/50Hz, 3-phase (other voltages optional) |
| Maximum Powder Recovery | Up to 95% with cyclone (optional) |
| Noise Level | < 85 dB(A) |
| Operating Temperature | 10°C – 40°C |
Benefits for Your Automotive Manufacturing Process
- Boost Productivity — The spacious interior allows operators to easily access large parts from multiple angles, reducing repositioning time. Two guns can work simultaneously, increasing throughput.
- Superior Finish Quality — Consistent airflow and powder delivery ensure uniform coating thickness (50–120 μm achievable). Minimal defects such as orange peel or runs.
- Cost Savings — Powder recovery system cuts material costs up to 30%. Manual operation reduces initial investment compared to fully automated booths, making it ideal for mid-volume production.
- Operator Comfort and Safety — Ergonomic design with anti-fatigue flooring, adjustable gun holders, and low noise levels. Safety features protect personnel from fire and electrostatic hazards.
- Flexibility & Scalability — Modular panels allow easy expansion or reconfiguration. Can be integrated with conveyor systems or cure ovens as your production grows.
Why Choose Deqing Leixin?
Our company has been a dedicated manufacturer of coating equipment since 2011, employing a skilled team of 51–100 people. We operate from a 1,000–3,000 m² facility in Huzhou, Zhejiang (close to Ningbo and Shanghai ports), ensuring efficient logistics to global customers. With an annual export value exceeding US$1 million, we have supplied machinery to clients in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and many other regions. Our ISO9001 certification guarantees rigorous quality control from raw material procurement to final assembly. Every booth undergoes hydraulic and electrical testing before shipping. We also offer on-site installation guidance and after-sales technical support.
We understand that each automotive part has unique requirements. That is why our manual powder spray booth is highly customizable — from dimensions and filtration grade to gun configurations and automation options (e.g., reciprocator integration). We work closely with you to design a solution that fits your floor plan and production volume. Partner with us to elevate your coating capabilities and achieve consistent, high-quality results.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum part size this booth can handle?
A: The standard booth accommodates parts up to 6 m × 3 m × 2.5 m. Larger sizes can be manufactured upon request. We will design the booth according to your largest workpiece dimensions. -
Q: Can I retrofit my existing powder booth with this system?
A: Yes, our modular design allows integration with existing extraction or curing systems. Please provide details of your current setup for a feasibility assessment. -
Q: What type of powder can be used in this booth?
A: The booth is compatible with all common thermoset and thermoplastic powders (polyester, epoxy, polyurethane, hybrid, etc.). The electrostatic guns are adjustable for different powder resistivity. -
Q: How long does the filter last before replacement?
A: With proper pulse-jet cleaning, cartridge filters typically last 6–12 months depending on usage and powder type. We recommend spare filters to minimize downtime. -
Q: Is the booth explosion-proof?
A: The electrical components (lights, controls) are rated for hazardous locations. Additional fire suppression and pressure relief options are available for compliance with local regulations. -
Q: Do you provide installation and training?
A: Yes, we can provide on-site installation supervision and operator training. Remote video guidance is also available at no extra cost for first-time buyers. -
Q: What is the warranty period?
A: Our standard warranty is 12 months from the date of shipment, covering manufacturing defects. Extended warranty plans are negotiable. -
Q: Can I add a conveyor system later?
A: Absolutely. The booth can be designed with removable side panels and base flanges to accommodate a conveyor track when you upgrade to automated line.
Contact us today to discuss your specific requirements and receive a tailored quotation. Our team is ready to support your automotive coating needs with reliable equipment and professional service.
