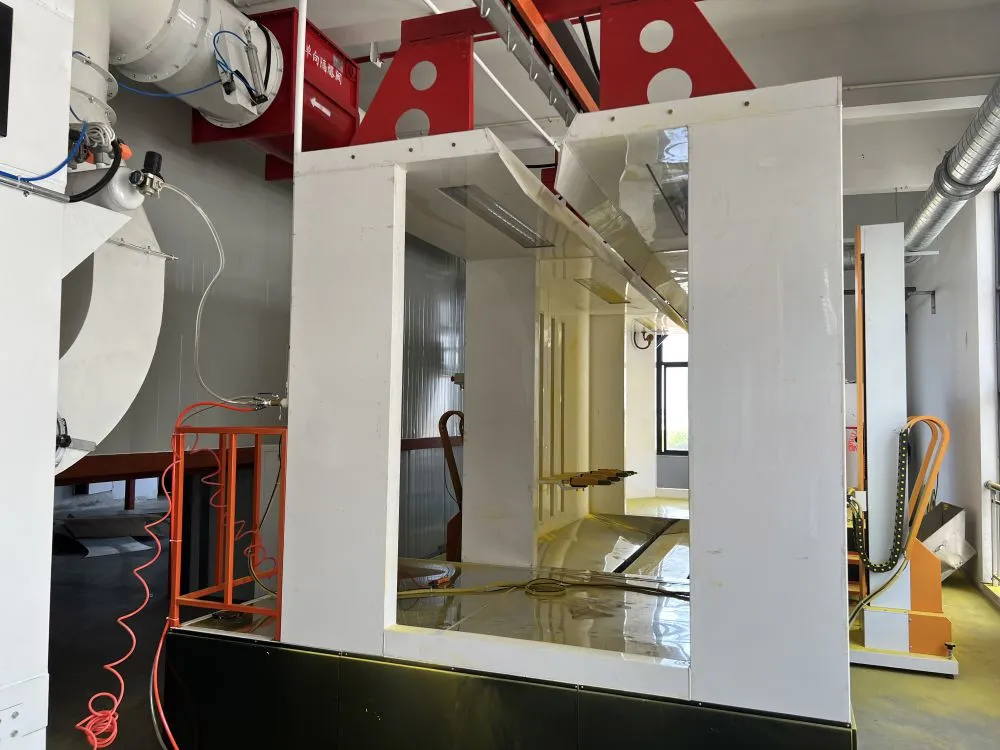

At Deqing Leixin Coating Equipment Co., Ltd., we understand the challenges of coating large industrial parts efficiently and cost-effectively. Since 2011, our dedicated team has been engineering high-performance powder coating solutions. This heavy duty manual powder coating booth with overspray recycling for large industrial part electrostatic spraying is the result of years of innovation and real-world feedback. It combines robust construction, advanced filtration technology, and user-friendly operation to help you reduce waste, lower operating costs, and achieve a consistent, high-quality finish in every batch.
Key Features & Technical Benefits
Built for Large Parts: Ample interior space (customizable dimensions up to 6m width) allows comfortable manual spraying of oversized components such as automotive frames, pipes, agricultural machinery parts, and industrial enclosures.
Efficient Overspray Recycling System: Integrated cyclone separator followed by high-efficiency cartridge filters recovers up to 95% of overspray powder. The reclaimed powder can be reused immediately, significantly reducing material waste and saving you money.
Optimized Airflow: Down-draft ventilation design ensures uniform air movement across the booth, preventing powder contamination and providing a clean working environment. Adjustable airflow rates accommodate different powder types and part geometries.
Durable Construction: Fabricated from heavy-gauge cold-rolled steel with a multi-layer anti-corrosion coating. The booth withstands harsh daily use and resists chemical damage from cleaning agents.
Safety Compliance: Equipped with explosion-proof LED lighting (IP65 rated) and pressure relief panels to meet international safety standards. Emergency stop buttons are conveniently located.
User-Friendly Controls: Intuitive control panel with digital airflow monitoring, filter pressure indicator, and automatic cycling for the recycling system. Operators can easily adjust parameters without advanced training.
| Parameter | Value |
|---|---|
| Booth Material | Cold-rolled steel, 2mm thickness, powder coated |
| Maximum Part Size (adjustable) | Up to 5m length x 2m width x 2.5m height |
| Airflow Rate | 0.3–0.5 m/s across booth cross-section |
| Recycling Efficiency | ≥ 95% for typical powder |
| Lighting Standard | Explosion-proof LED, 500 lux average |
| Filter Type | Cartridge (pleated) + HEPA after-filter optional |
| Power Supply | 380V/3ph/50Hz or customized |
| Noise Level | ≤ 75 dB(A) at 1m |
Advantages for Your Business
Cost Savings: By recovering and reusing overspray powder, you can reduce raw material costs by up to 20% or more, depending on your production volume. The durable design also minimizes maintenance downtime.
Environmental Responsibility: Less powder waste means lower disposal costs and a smaller environmental footprint. The efficient filtration system ensures that air exhausted from the booth meets local emissions requirements.
Increased Productivity: Operators work comfortably inside the booth with ample lighting and clean air. The smooth airflow prevents powder from drifting, allowing faster spraying cycles with fewer defects.
Versatility: The booth is compatible with most electrostatic powder guns on the market. It handles thermoset and thermoplastic powders effectively, giving you flexibility to serve various customer requests.
Deqing Leixin Coating Equipment Co., Ltd. is a ISO9001 certified manufacturer founded in 2011, with a dedicated factory spanning 1,000–3,000 square meters. Our experienced team of 51–100 employees focuses on delivering tailored solutions for customers across North America, South America, Europe, Asia, Africa, and Oceania. With an annual export value exceeding US$1 million, we have built a reputation for reliable equipment and responsive after-sales support. We ship from Ningbo or Shanghai ports with careful packing to ensure safe delivery.
Take the next step toward optimizing your powder coating operations. This heavy duty manual booth is designed to grow with your business, offering modular expansion options and customizable accessories. Contact us today to discuss your specific part dimensions, required throughput, and budget. Our engineering team will prepare a detailed proposal that maximizes your return on investment.
Frequently Asked Questions
Q: What is the typical lead time for this powder coating booth?
A: Standard models can be delivered within 30–45 working days after order confirmation. Custom sizes may require an additional 1–2 weeks for engineering. We will provide an exact timeline in your quotation.Q: Can the booth be used for small parts as well?
A: Yes. While the booth is optimized for large parts, the spacious interior and adjustable airflow allow you to spray small components efficiently. We recommend using specialized racks or fixtures to maximize productivity.Q: How often does the filter need to be replaced?
A: Cartridge filter life depends on usage intensity and powder type. On average, replacement is needed every 6–12 months. The control panel includes a differential pressure gauge that alerts you when it's time to clean or replace the filters.Q: Do you provide installation and training?
A: We provide detailed installation manuals and remote video guidance. For international clients, on-site commissioning and training are available upon request at an additional cost. Our team is always ready to answer questions via email or video call.Q: Is the booth compatible with all electrostatic powder guns?
A: Yes, the booth is designed with a universal interface plate. Most standard guns (such as those from Gema, Wagner, Nordson, etc.) can be easily mounted. We can also custom-fit your existing gun system.Q: What safety features are included?
A: The booth comes with explosion-proof lighting, pressure relief panels, emergency stops, and a grounding system. It also complies with general industrial safety standards. Additional safety options (e.g., spark detection) are available as upgrades.Q: Can I recycle different colors of powder without cross-contamination?
A: The recycling system is designed for same-color recovery. If you need to change colors, we recommend using a separate collection bin or a dedicated booth. Quick-color-change options (such as easy-clean ducting) can be included on request.Q: What is the warranty period?
A: Our standard warranty is 12 months from the date of shipment, covering manufacturing defects. Extended warranty plans are available. We also offer a spare parts package to minimize downtime.
