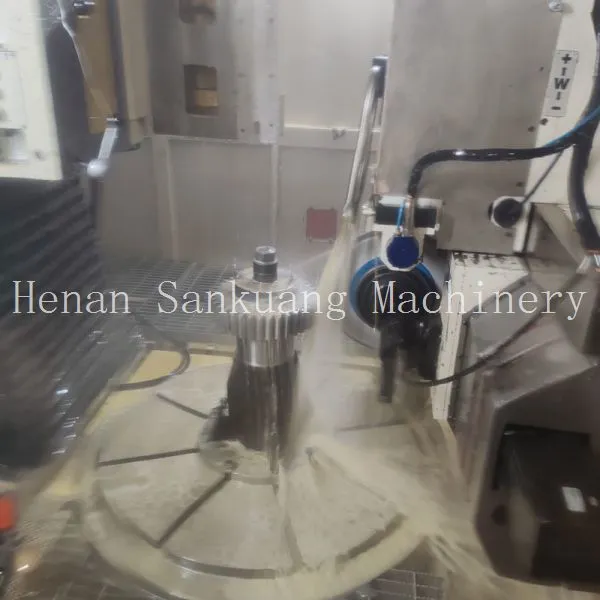

Henan San Kuang Machinery Technology Co., Ltd., established in 2014, is a specialized manufacturer of precision transmission components. Our factory spans 10,000–30,000 square meters and is equipped with advanced machining and heat-treatment facilities. The Precision Planetary Gear Reduction Ratio 5:1 to 100:1 with 20CrMnTi is one of our flagship products, designed to deliver high torque density, long service life, and exceptional positioning accuracy. With over 10 years of industry experience and a global export network covering North America, Europe, and Asia, our gearboxes are trusted by OEMs and integrators worldwide.
Product Overview
This planetary gear reducer uses 20CrMnTi alloy steel for the gears, which undergoes a carburizing and quenching process to achieve a surface hardness of HRC 58–62. The core remains tough, offering an excellent balance of wear resistance and impact strength. The reduction ratio range from 5:1 to 100:1 is achieved through 1 to 3 planetary stages, allowing precise speed and torque adaptation for various applications.
Key Features & Technical Specifications
- High Precision: Backlash as low as ≤1 arcmin (optional) ensures repeatable positioning in servo-driven systems.
- Compact Design: Coaxial input and output shafts minimize installation space, ideal for tight robot joints.
- High Efficiency: Single-stage efficiency ≥95%; multi-stage ≥90%, reducing heat generation and energy loss.
- Long Service Life: 20CrMnTi gears are paired with tapered roller bearings and sealed housing for reliable operation under heavy loads.
- Flexible Mounting: Flange or foot mounting options, with IP54 protection rating (optional IP65).
- Wide Ratio Range: 5:1, 10:1, 20:1, 30:1, 50:1, 100:1 and custom intermediate ratios available.
- Smooth & Quiet: Helical planetary gears (optional) for lower noise and vibration.
| Reduction Ratio | Stages | Max Output Torque (Nm) | Efficiency | Backlash (arcmin) |
|---|---|---|---|---|
| 5:1 | 1 | 200 | 95% | ≤3 |
| 10:1 | 1 | 400 | 94% | ≤3 |
| 20:1 | 2 | 600 | 90% | ≤5 |
| 50:1 | 2 | 1000 | 88% | ≤5 |
| 100:1 | 3 | 2000 | 85% | ≤7 |
Note: Torque values are indicative for standard size 090 housing. Custom designs available.
Customer Benefits
- Reduce downtime with reliable, long-lasting gears that withstand continuous operation.
- Improve machine accuracy with low backlash – ideal for pick-and-place, indexing, and laser cutting.
- Simplify system integration with multiple mounting orientations and shaft configurations.
- Lower total cost of ownership thanks to high efficiency and minimal maintenance requirements.
Quality Assurance & Support
Henan San Kuang Machinery operates under a strict quality management system. Our factory holds ISO9001, ISO14001, and TS16949 certifications (as per company credentials). Every gearbox undergoes run-in testing and backlash measurement before shipment. With an annual export value of US$2.5–5 million and a team of 51–100 experienced professionals, we ensure consistent product quality and responsive after-sales support. We ship from Shanghai, Lianyungang, Qingdao, or Tianjin ports to destinations worldwide.
Ready to optimize your motion control system? Contact us today for a quote or technical consultation. Custom ratios, special backlash requirements, and alternative materials are available upon request. Our engineers will assist you in selecting the right gearbox for your application.
Frequently Asked Questions
-
Q: Can other reduction ratios outside 5:1–100:1 be supplied?
A: Yes, we can provide custom ratios such as 4:1, 7:1, etc., through customized gear sets. Please contact us with your requirements. -
Q: What is the advantage of using 20CrMnTi material?
A: 20CrMnTi offers high surface hardness after carburizing, excellent wear resistance, and good core toughness, making it ideal for high-load, precision gear applications. -
Q: Are these gearboxes suitable for servo motors?
A: Absolutely. They are designed for servo motor integration with low inertia and high positioning accuracy. -
Q: What is the typical delivery time?
A: Standard ratios are usually shipped within 15–25 working days. Custom orders may take 30–45 days, depending on complexity. -
Q: Do you offer mounting kits or adapters for specific motor brands?
A: Yes, we can provide custom input flanges and keyways for most common servo motors (Panasonic, Yaskawa, Siemens, etc.). -
Q: What kind of lubrication do you recommend?
A: We pre-fill with synthetic grease suitable for a wide temperature range (-20°C to +80°C). For heavy-duty use, oil lubrication is available. -
Q: Is there an IP rating for dust and water resistance?
A: Standard units have IP54 protection. IP65 (washdown) is available as an option. -
Q: Do you provide testing certificates?
A: Yes, each gearbox comes with a test report including backlash, torque, and noise data. Additional certifications can be arranged.
