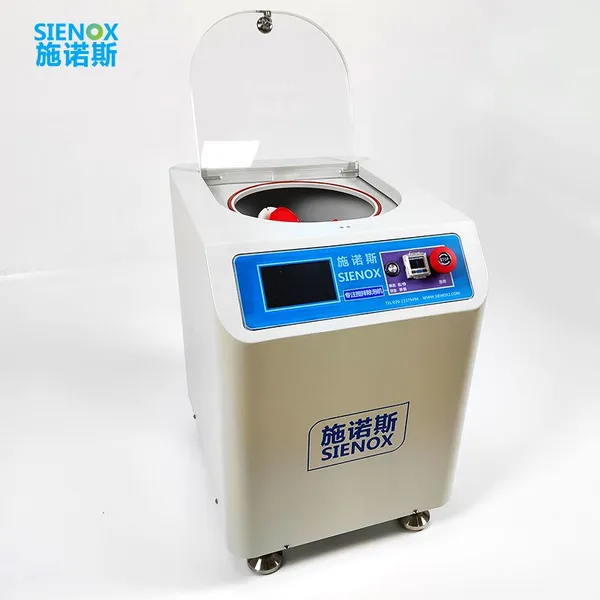

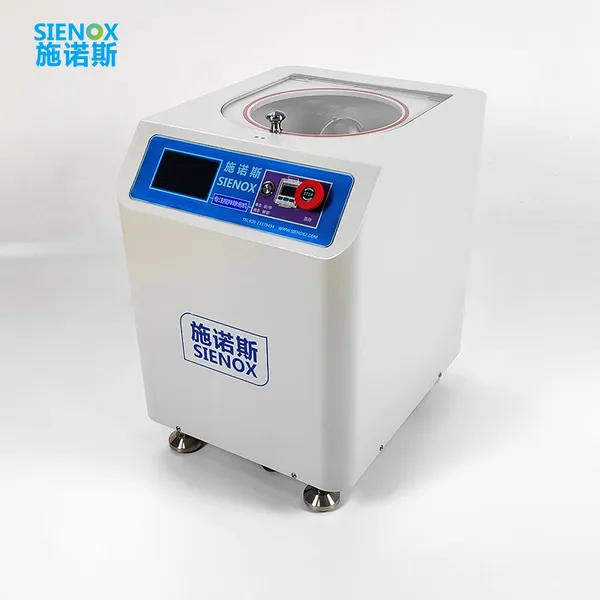

Help CenterVacuum Defoaming Mixer Revolution Rotation Defoamer SIE-MIX90
Product Spotlights
◆ Fixed planetary to rotation speed ratio
◆ 0-2000RPM, adjustable for experimentation based on material characteristics
◆ Vacuum/Cooling/Heating/MES system connectivity options available
Related Products
-
SIE-C012 Mini Low-Noise Centrifugal Degassing Equipment for Laboratories & Research InstitutionsNegotiableMOQ: 1 Set -
Lab 300ML Vacuum Planetary Gravity Mixer Defoaming Machine SIE-MIX60US$ 8500MOQ: 1 Combo
-
Planetary Stirring Defoamer Solder Paste Mixer SIE-MIX1000PLUSUS$ 8500MOQ: 1 Combo
-
Vacuum Defoaming Mixer Revolution Rotation Defoamer SIE-MIX90US$ 8500MOQ: 1 Combo
-
Vacuum Defoaming Mixer Revolution Rotation Defoamer SIE-MIX90US$ 8500MOQ: 1 Combo
◆ Single cup/Dual cup options available
◆ Vacuum level up to -99kPa
◆ Can store up to 100 sets of operating parameters
◆ Multiple container options: tubes, tanks, and cups
◆ Non-contact design, does not alter the chemical properties of materials
◆ Planetary to rotation speed ratio options (fixed/adjustable)
◆ 0-3000RPM, adjustable for experimentation based on material characteristics
◆ High-speed mixing and defoaming in 1 minute, uniform mixing, eliminates nano-sized bubbles
◆ Customizable capacity, standard configurations include 300mL, 500mL, 1L, 2L, 5L, and 12L
◆ Uses imported components, body made of 304 stainless steel, durable and long-lasting
◆ Vacuum/Temperature control/MES system connectivity options available
◆ Aesthetically pleasing design, durable and robust
The vacuum defoaming mixer meets the mixing and defoaming needs for volumes ranging from 0 to 1000 mL. Its adjustable planetary to rotational motion ensures clean and efficient mixing and defoaming. Customized services are offered to meet the diverse requirements of different customers. With a wide range of applications, the machine is aesthetically pleasing, durable, and robust.
Product parameters table
Model |
SIE-MIX60 |
SIE-MIXF301 |
SIE-MIX90 |
SIE-MIXF1000 |
Speed(rpm) |
0-3000 |
0-2000 |
0-2000 |
0-2000 |
Time(min) |
1-30 |
1-30 |
1-30 |
1-30 |
Container |
Tube/Can/Cup |
Tube/Can/Cup |
Tube/Can/Cup |
Tube/Can/Cup |
Capacity (mL) |
0-300 |
0-300 |
0-1000 |
0-1100 |
Quantity |
1*2 |
1*2 |
1*2 |
1*2 |
Rotation speed ratio during revolution |
fixed |
Adjustable |
fixed |
Adjustable |
vacuum(kpa) |
-98 |
-98 |
-98 |
-98 |
Safety lock |
Yes |
Yes |
Yes |
Yes |
Refrigeration/Heating |
Optional |
Optional |
Optional |
Optional |
SEM function |
Optional |
Optional |
Optional |
Optional |
Size(cm) |
42*51*58 |
42*50*57 |
61*56*78 |
62*61*78 |
Weight(kg) |
95 |
105 |
153 |
170 |
***The above are just typical models, and we can provide personalized solutions according to customer needs.
6 core advantages
-High speed
0-3000RPM adjustable
-High vacuum degree
The vacuum degree can reach -100KPA
-High altitude physical quantity
0-30L can be customized
-Low noise
The noise can be as low as 50DB
-Revolution rotation ratio
Optional fixed speed ratio/freely adjustable
-Suitable for various containers
Compatible with various tubes/cans/cups/own containers
