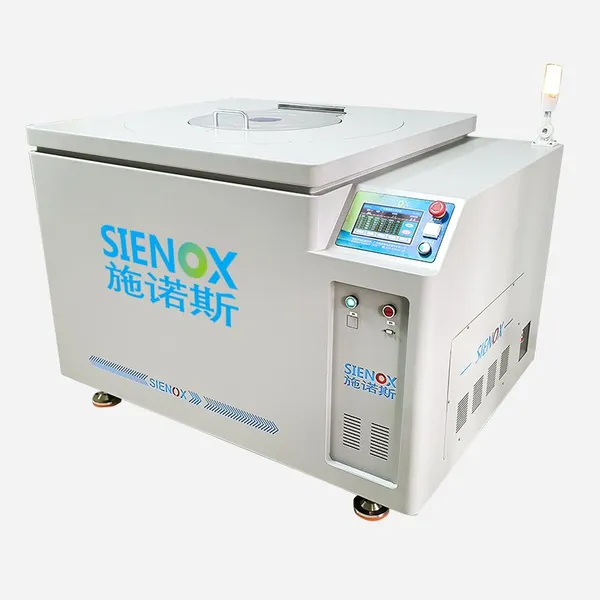

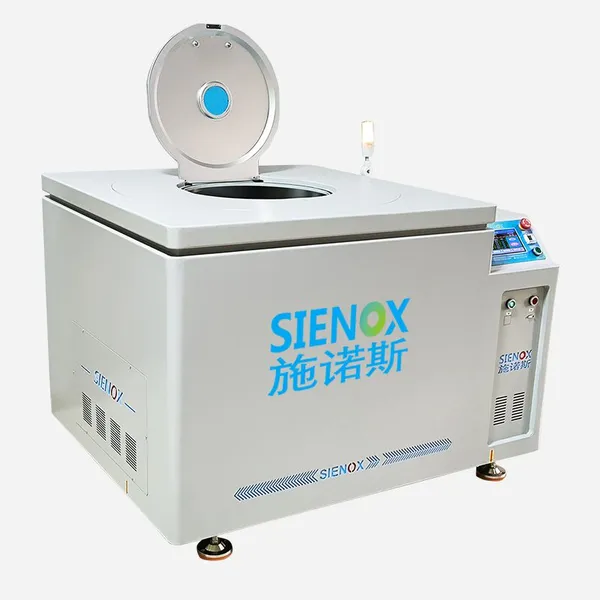

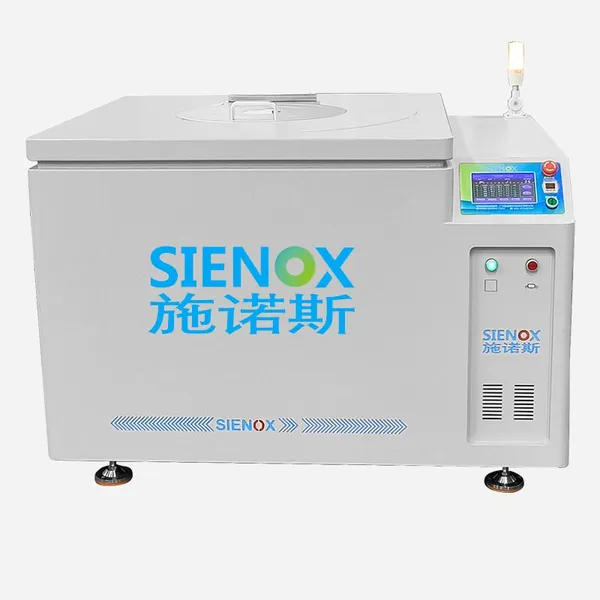

Help CenterSIE-SV200 Vacuum Planetary Defoaming Mixer With Heating & Cooling Function, 200mL Lab Centrifugal Revolution Rotation Homogenizer
Related Products
-
SIE-MIX200 200mL Dual-Cup Laboratory Planetary Vacuum Centrifugal Defoaming MixerNegotiableMOQ: 1 Combo -
Vacuum Defoaming Mixer Revolution Rotation Defoamer SIE-MIX90US$ 8500MOQ: 1 Combo
-
SIE-C006 Desktop Mini Laboratory Planetary Vacuum Defoaming MixerNegotiableMOQ: 1 Combo
-
SIE-C012 Mini Low-Noise Centrifugal Degassing Equipment for Laboratories & Research InstitutionsNegotiableMOQ: 1 Set
-
SIE-MIX20L Large Capacity Planetary Vacuum Mixing Defoamer, 0–50L Industrial Centrifugal Degassing MixerNegotiableMOQ: 1 Set
Working principle
Relying on centrifugal force generated by planetary revolution and shear force from autorotation to complete material mixing, the built-in vacuum pump extracts internal gas simultaneously. This efficiently eliminates microbubbles trapped inside liquids and slurries to elevate finished product quality.
Comparison of Material Effects
Our machines are compatible with a wide range of materials, including but not limited to fluorescent powder, adhesives, silicone gel, silver paste, aluminum paste, ink, silver nanoparticles, silver nanowires, conductive silver paste, insulating glue, and battery slurry. It handles mixing scenarios of liquid-liquid, liquid-solid and solid-solid composite materials.
Only partial test samples are shown here. Customers are welcome to send raw materials to SIENOX for free mixing & defoaming trials.
Product parameters table
| Model | SIE-SV200 | SIE-MIX80 | SIE-MIXF301 | SIE-MIXF1000 |
|---|---|---|---|---|
| Rotation Speed (rpm) | 0–3000 | 0–3000 | 0–2000 | 0–2000 |
| Timing Range (min) | 1–30 | 1–30 | 1–30 | 1–30 |
| Compatible Vessel | Tubes / Cans / Cups | Tubes / Cans / Cups | Tubes / Cans / Cups | Tubes / Cans / Cups |
| Max Total Capacity (mL) | 0–200 | 0–300 | 0–300 | 0–1100 |
| Vessel Quantity | 1×1 | 1×2 | 1×2 | 1×2 |
| Revolution-to-Autorotation Ratio | Fixed | Fixed | Adjustable | Adjustable |
| Ultimate Vacuum (kPa) | -98 | -98 | -98 | -98 |
| Safety Interlock Lock | Yes | Yes | Yes | Yes |
| Heating & Cooling Module | Optional | Optional | Optional | Optional |
| MES Data Interconnection Function | Optional | Optional | Optional | Optional |
| Overall Dimension (cm) | 34×24×37 | 42×52×58 | 42×50×57 | 62×61×78 |
| Net Weight (kg) | 30 | 97 | 105 | 170 |
***The above are just typical models, and we can provide personalized solutions according to customer needs.
6 core advantages
Wide Adjustable Speed Range
0–3000 rpm stepless speed regulation to fit materials of different viscosities.
Ultra-High Vacuum Performance
Maximum vacuum degree reaches -98 kPa (customizable up to -100 kPa).
Customizable Large-Volume Design
Single vessel capacity up to 30 L available on custom request.
Low Running NoiseOperating noise
controlled below 50 dB for quiet lab environments.
Flexible Rotation Ratio Selection
Choose fixed revolution-autorotation ratio or freely adjustable ratio as required.
b
Supports mixing with various standard tubes, cans, cups and customers’ own custom containers.
