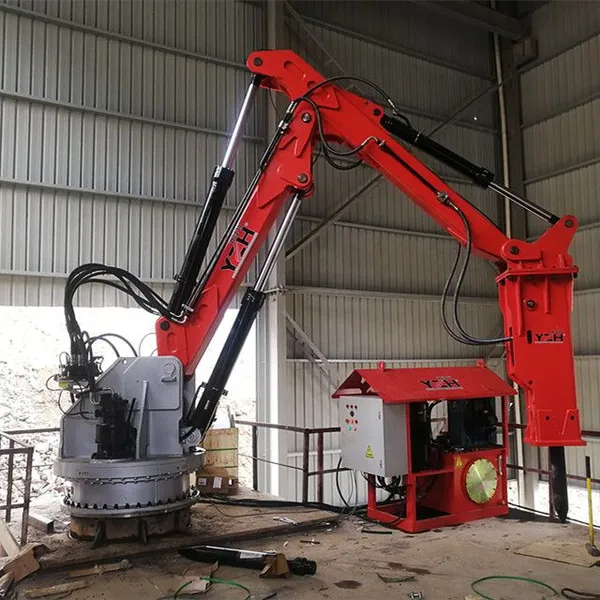

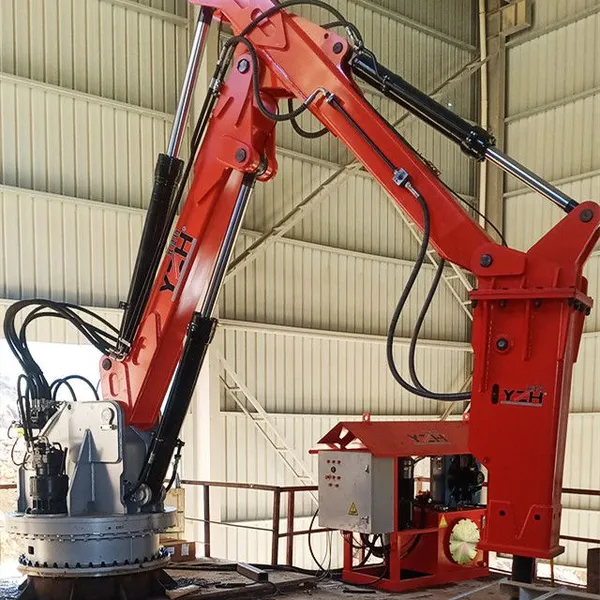

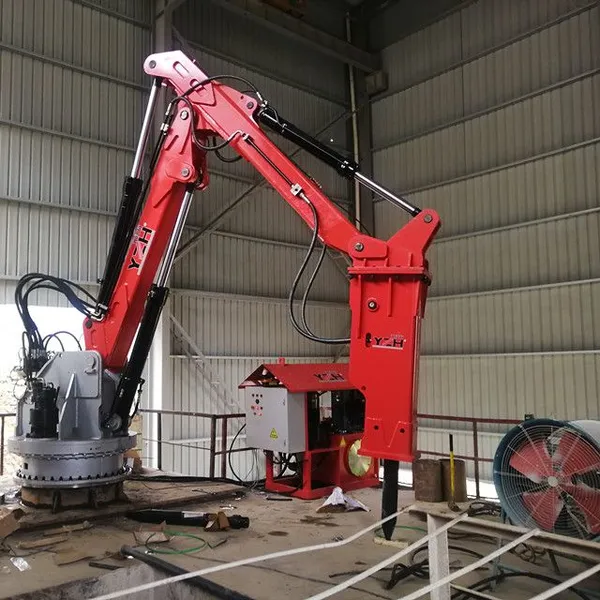

Stationary Type Rock Breaker Boom System
Stationary type rock breaker boom system is a machine designed to manipulate large rocks, including reducing large rocks into smaller rocks. It is typically used in the mining, quarrying and aggregate industries to remove oversize rocks that are too large or too hard to be reduced in size by a crusher or grizzly. Stationary type rock breaker boom system consists of four major components: pedestal booms, hydraulic hammer, hydraulic power unit and operating control.
All elements are manufactured to stringent quality and safety standards. Our experienced engineering team ensures that customers receive the best solution for their needs, while also positioning the right equipment for optimal safety, reliability, durability, and productivity.
Main parameters of BHB350 Hydraulic Pedestal Boom System：
Model No. |
BHB350 |
|
Boom weight(without hammer) |
KG |
2994 |
Max.horizontal working radius |
MM |
5890 |
Max.vertical working radius |
MM |
3880 |
Min.vertical working radius |
MM |
1790 |
Max.Height |
MM |
3580 |
| ing depth | MM | 3750 |
| Rotation | ° | 360 |
| Hydraulic hammer model | / | YZH1000-YZH1250 |
| Power of hydraulic power unit | KW | 37/45/55 |
CONTROL SYSTEM: 2IN1 Radio Remote Control、Cabin Control System、5G Optical Fiber Teleoperation System
Use Case:

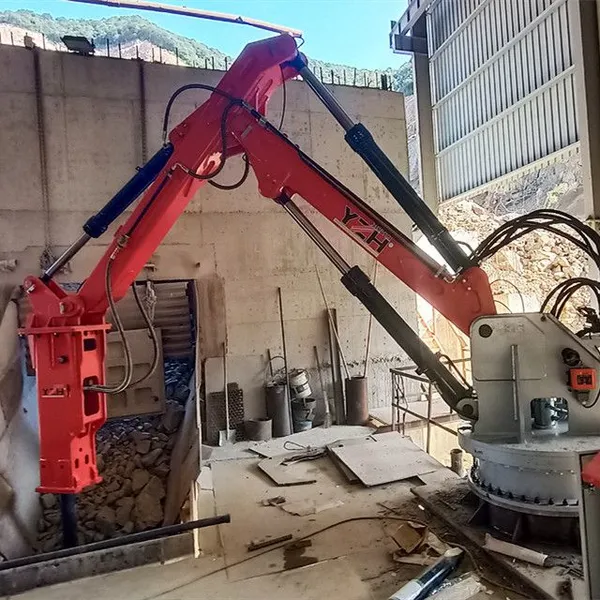

This robot arm is mainly used in the inlet or grizzly screen of all kinds of mines and quarry crushers for secondary crushing of large materials. It can be installed next to the hopper of primary crusher to crush the oversized stones at the grizzly screen mouth, or next to the hopper mouth of truck hopper and tipper, etc. It can effectively solve the problem of jamming and clogging in crushing production line, and improve the output of the crusher in the initial stage by up to 20%.
Purchase Notice:
Warranty period: 1 year
After sales service: During the warranty period, if there are quality issues, we will be available on call
Transportation methods: Various transportation methods are accepted
Packaging method: Suitable for various types of transportation
