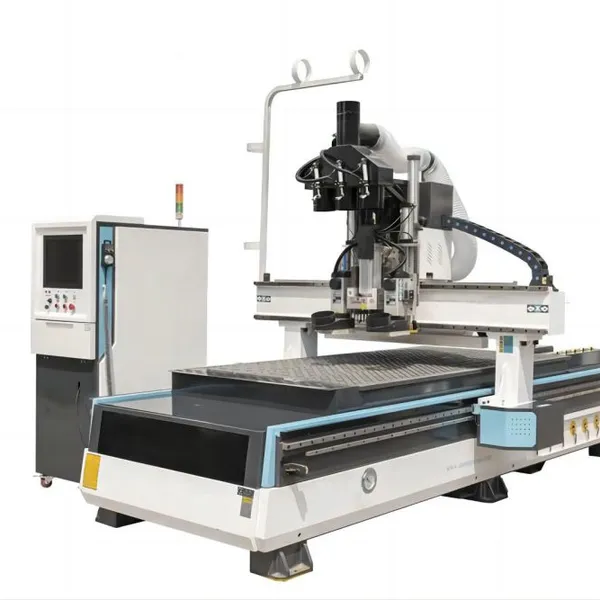

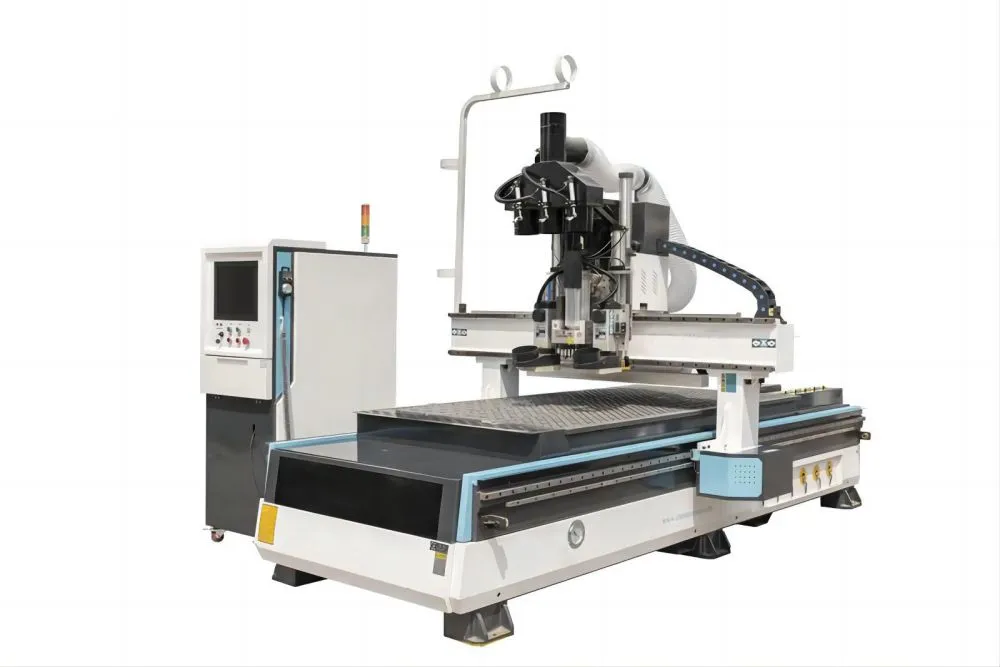

1325 1530 2030 ATC Wood CNC Router with Loading and Unloading Table | Auto Nesting CNC Machine
1. Product Overview

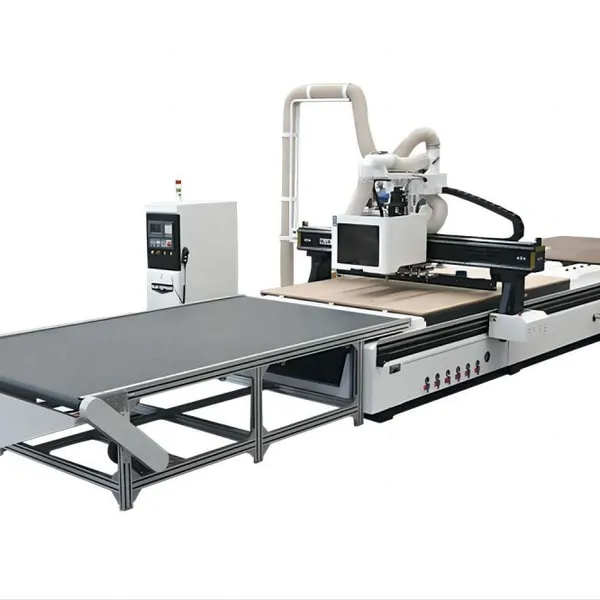

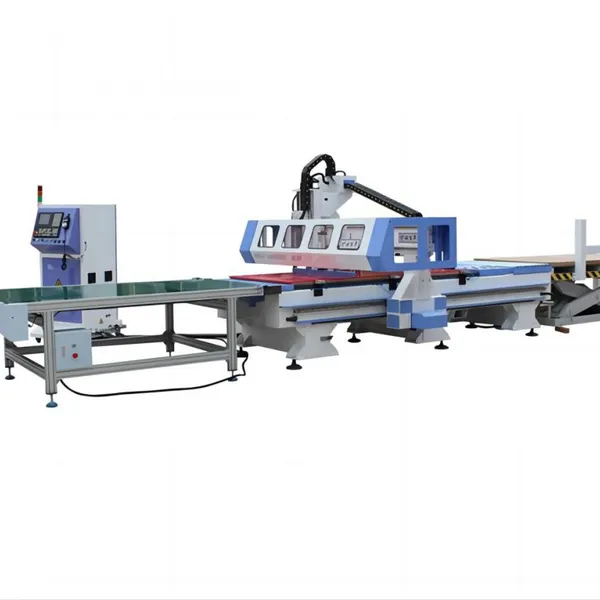

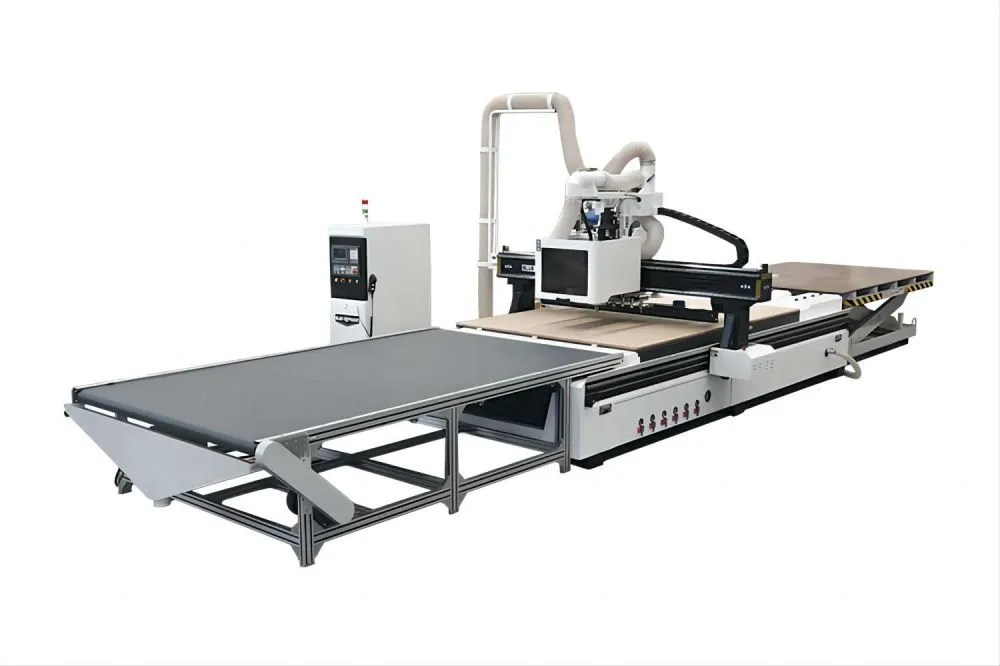

1325 1530 2030 ATC Wood CNC Router with loading and unloading table
This automatic loading and unloading ATC CNC nesting router is tailor-made for modern panel furniture factories, cabinet workshops, wardrobe & wooden door production lines. Available in three standard working sizes: 1325 (13002500mm) / 1530 (15003000mm) / 2030 (2000*3000mm), fully integrated with automatic feeding, positioning, ATC cutting, drilling, grooving and auto discharging function.
Different from ordinary manual feeding CNC wood routers, our auto loading unloading CNC nesting machine realizes unattended continuous batch processing. One operator can manage 2–3 sets machines at the same time, greatly cutting labor cost and boosting production efficiency by over 35%. Equipped with optional Taiwan SYNTEC 610MA-E5 control system or Huazhong HNC-848Di CNC controller, matched with HITECO 11kw air-cooled ATC spindle / 15kw water-cooled ATC spindle, it meets lightweight wood nesting and heavy-duty aluminum composite panel cutting demands simultaneously.
Core Application Scenarios
Custom cabinet, wardrobe, closet, kitchen cabinet nesting cutting
Wooden door, solid wood door, composite door milling & carving
MDF, plywood, particle board, melamine board, aluminum plastic panel processing
Furniture factory full-automatic production line supporting equipment
1325 1530 2030 ATC Wood CNC Router with Loading and Unloading Table | Auto Nesting CNC Machine
2. Core Advantages of Automatic Loading & Unloading Structure

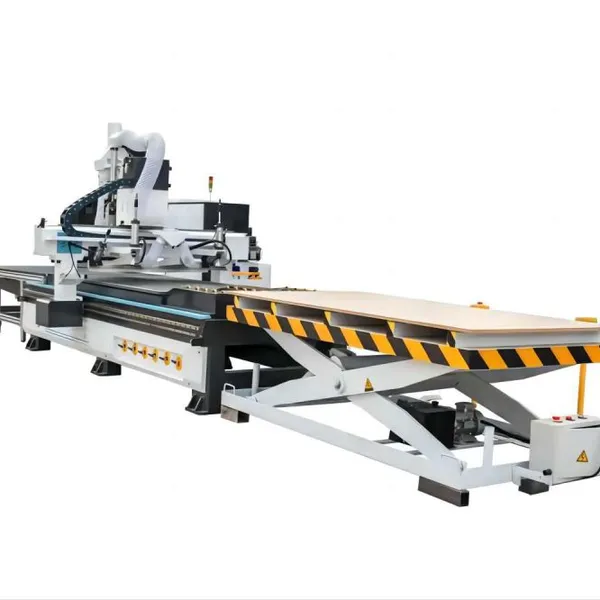

Full-cycle unmanned feeding & dischargingHydraulic lifting loading platform supports stacking 50–80 raw wood sheets; vacuum suction cups automatically grab single board, side positioning cylinders calibrate panel position precisely without manual adjustment. After cutting, gantry pushing cylinder sends finished boards to conveyor unloading table, loading and machining run synchronously without stop gap.
Reduce labor & improve outputNo workers needed for frequent board carrying; continuous 24h batch nesting available, perfect for mass furniture order production.
Protect panel surface, zero scratch rateSoft roller conveying + large area vacuum adsorption avoid friction damage to melamine and veneer boards, reduce product reject rate.
Seamless match with labeling machine (optional)Add auto barcode labeling device to mark cabinet part size, hole position, assembly code, convenient for post edge banding and sorting.

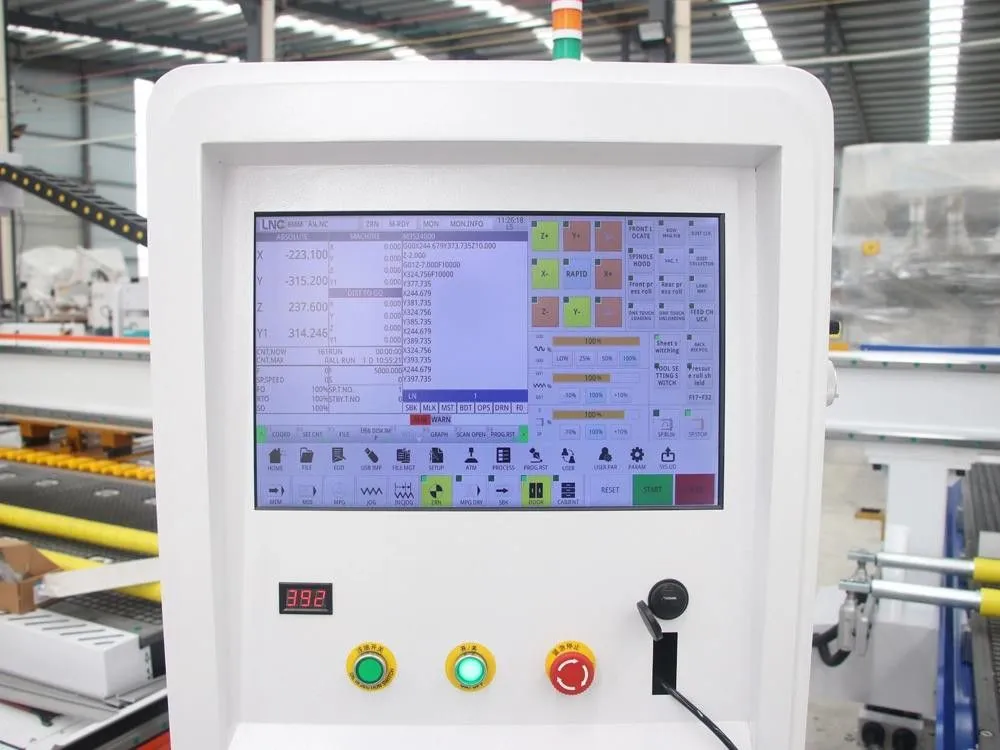

3. Two Optional CNC Control Systems (Your Key Configuration)
Option 1: SYNTEC 610MA-E5 CNC System (Most popular for wood nesting)
Professional woodworking dedicated bus CNC controller, built-in complete nesting macro program for auto loading unloading workflow
Simple operation interface, fast five-axis calibration, domestic cabinet factory mainstream matching solution
Sufficient IO ports to drive lifting platform, suction cups, side push, positioning cylinder, dust collector and auto labeling linkage
Perfect compatible with nesting software: AlphaCAM, Artcam, Ucancam, easy post-processing setting
Suitable for 11kw HITECO air-cooled spindle, light & medium load continuous wood cutting, cost-effective whole machine scheme
Pros: Low debugging difficulty, abundant after-sales global service, lower whole set electric control cost; Cons: Limited heavy metal high-precision compensation function, not ideal for long-time aluminum heavy cutting
Option 2: HNC-848Di Huazhong CNC System (Heavy-duty export high-end model)
Industrial grade high-precision CNC controller, support EtherCAT & NCUC dual bus, full closed-loop grating scale thermal error compensation
Stable driving for 15kw HITECO water-cooled spindle, long-hour heavy cutting aluminum plate, solid wood thick board without precision drift
Powerful automatic production linkage function, support docking MES factory intelligent production line, multi-machine connection automatic feeding
Complete RTCP five-axis function, can upgrade to five-axis auto loading unloading machining center for wood mold & aluminum mold processing
Suitable for factories mixing wood panel cutting and aluminum alloy fixture processing, high-end export furniture equipment
Pros: Strong overload stability, high long-term machining accuracy, deep PLC customization; Cons: Higher whole machine cost, higher engineer debugging technical threshold
4. Spindle Configuration Choice (HITECO Original Italy Spindle)
A. HITECO 11KW Air-cooled ATC Spindle
No water chiller needed, easy installation, low daily maintenance cost
Fast heat dissipation for medium-speed wood cutting, perfect matching SYNTEC 610MA-E5 auto nesting machine
Light load continuous processing: MDF, particle board, thin plywood cutting, carving, grooving
B. HITECO 15KW Water-cooled ATC Spindle
Higher torque, deeper cutting depth, stable temperature under long-time heavy load
Match HNC-848Di CNC system, support solid wood thick plate, aluminum plastic panel, aluminum veneer heavy nesting
Equipped with industrial water chiller, constant temperature control, extend spindle service life over 2 years
ATC Tool Magazine
Standard linear auto tool changer with 8/12 tools, auto switch cutting, drilling, grooving, chamfer tools without manual tool change, save tool changing time, realize one-time forming of all cabinet processing procedures.
5. Machine Hardware Highlight
Heavy thickened welded machine frameWhole bed annealing stress relief treatment, no deformation after long-term high-speed operation, stable cutting precision within ±0.02mm positioning accuracy.
Vacuum adsorption worktable by zones9 partition vacuum suction table, open independent suction area according to panel size, save vacuum pump power, fix small size workpiece firmly without displacement.
Dual Y-axis servo drive + helical rack & pinionFull servo X/Y/Z three-axis drive, high speed moving speed up to 30m/min, low noise, smooth running, long service life.
Full set protection & safety designEmergency stop button, three-color warning light, whole machine dust cover, centralized dust removal interface, avoid wood dust damage servo and control system.
Customizable function expansionOptional auto labeling unit, vertical drill bank, double vacuum pump, automatic lubrication system, centralized oil supply.
6. Standard Technical Parameter Table
| Item | Specification |
|---|---|
| Model | 1325 / 1530 / 2030 ATC Wood CNC Router with loading and unloading table |
| Effective Working Area | 13002500200mm / 15003000200mm / 20003000200mm |
| Control System | SYNTEC 610MA-E5 / HNC-848Di CNC Controller |
| Spindle Option | HITECO 11kw Air-cooled ATC / HITECO 15kw Water-cooled ATC |
| Tool Magazine | Linear ATC 8/12 tools |
| Max Moving Speed | 30 m/min |
| Positioning Accuracy | ±0.02mm |
| Working Table | Zoned vacuum adsorption table |
| Drive System | Full servo motor, dual Y-axis drive |
| Auto Feeding System | Hydraulic lifting loading platform + vacuum suction cup feeding |
| Auto Discharging System | Gantry pushing cylinder + conveyor unloading table |
| Working Voltage | AC380V 50/60Hz |
| Certification | CE, ISO |
7. Why Choose Our Auto Loading Unloading CNC Nesting Router?
Multiple size options to meet different panel sizes (48ft / 510ft large wood sheet)
Two mature control system schemes for different production demands, match your budget and processing materials
Original Italy HITECO spindle optional, stable quality, long service life
Complete automatic feeding & discharging linkage program, plug-and-play without complex secondary PLC development
Heavy-duty machine structure, suitable for long-time uninterrupted furniture factory mass production
Global after-sales support: online remote debugging + overseas engineer door-to-door installation training
Support private customization: drill bank, labeling machine, five-axis upgrade, whole production line matching
8. Application Finished Product Display
Custom wardrobe, walk-in closet, storage cabinet nesting parts
Kitchen cabinet door, cabinet frame, drawer panel cutting
Solid wood carving door, composite door milling & grooving
Furniture auxiliary aluminum alloy backboard, aluminum plastic plate cutting
9. FAQ Section
Q1: Which CNC control system should I choose, SYNTEC 610MA-E5 or HNC-848Di?
A1: If you only process wood, MDF, particle board and pursue cost saving, choose SYNTEC 610MA-E5. If you need to cut aluminum plate, thick solid wood with heavy load, or build intelligent factory production line, select HNC-848Di industrial high-precision CNC system.
Q2: Difference between 11kw air-cooled and 15kw water-cooled HITECO spindle?
A2: 11kw air-cooled no water chiller, low maintenance, fit light wood cutting with SYNTEC system. 15kw water-cooled bigger torque, stable under heavy cutting, match HNC-848Di for aluminum & thick solid wood processing.
Q3: Can this auto loading unloading CNC router connect edge banding machine to form a production line?
A3: Yes, the unloading conveyor table can directly dock automatic edge banding machine, realize full automatic nesting → edge banding → drilling whole line production.
Q4: Does the machine support automatic labeling function?
A4: Auto barcode labeling unit is optional extra accessory, can print part information on raw boards before cutting, convenient for finished part sorting.
Q5: What wood materials can this ATC CNC router process?
A5: Plywood, MDF, melamine board, particle board, solid wood, density board, aluminum plastic panel, PVC foam board, wood composite panel.
