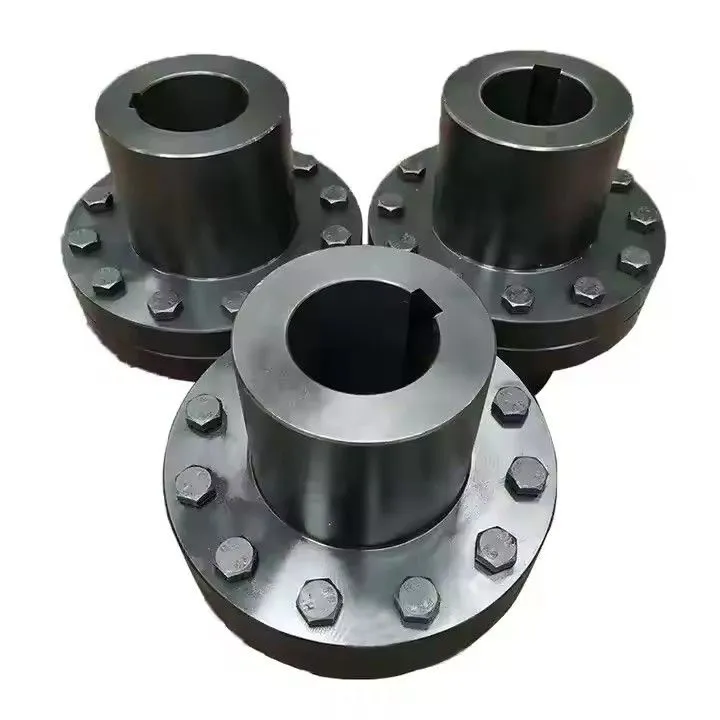

Help CenterYl Series Rigid Flange Coupling Power Transmission Parts
Product Spotlights
Related Products
-
Flange Coupling for Water Pump and Compressor Applications With Rubber Gasket SealNegotiableMOQ: 2 Pieces -
Flange Coupling Type G6 Elastic Cushion Ring Torque Capacity 200Nm for Industrial DriveNegotiableMOQ: 2 Pieces
-
Heavy Duty Mechanic Rigid Flange Shaft Coupling for Centrifugal PumpsNegotiableMOQ: 2 Pieces
-
High Quality Yl Type Rigid Flange Coupling Mechanical Transmission CouplingNegotiableMOQ: 2 Pieces
-
Flexible Shaft Coupling Membrane Steel Laminae Single Disc Diaphragm High Temperature Resistant for PumpNegotiableMOQ: 10 Pieces
Hebei Speed Torque Transmission Technology Co., Ltd., founded in 2017, is a professional manufacturer of power transmission components with a 3,000-5,000 m² factory and over 100 skilled employees. Our YL Series Rigid Flange Coupling is designed for precise torque transmission and shaft alignment in demanding industrial environments. With ISO9001 certification and annual export value exceeding US$5 million, we deliver couplings that meet rigorous quality standards for customers worldwide. Whether you need standard or custom sizes, our couplings offer reliable performance and long service life.
Key Features & Technical Specifications
Rigid Connection: Provides zero-backlash torque transmission between two shafts, ensuring accurate synchronization.
Flange Design: The flanged structure allows easy installation and disassembly via bolts, ideal for high-torque applications.
High Strength Material: Manufactured from premium carbon steel or alloy steel, heat-treated for enhanced hardness and wear resistance.
Precision Machining: Keyways and bores are machined to strict tolerances (H7) to ensure proper fit with shafts.
Corrosion Protection: Available with black oxide, zinc-plated, or other surface treatments to resist rust.
Customizable Dimensions: Bore sizes, outer diameters, and overall lengths can be tailored to your specific equipment.
Balanced Design: Static and dynamic balancing options help reduce vibration in high-speed applications.
| Parameter | Specification |
|---|---|
| Material | Carbon Steel (45#), Alloy Steel (40Cr) or equivalent |
| Bore Size Range | 10 mm – 100 mm (custom available) |
| Torque Capacity | Up to 5000 N·m (depending on model) |
| Allowable Speed | Up to 3000 rpm (with balancing) |
| Surface Treatment | Black oxide, zinc plate, or as required |
| Application | General machinery, pumps, compressors, elevators, conveyors |
| Standard | ISO9001 |
Product Advantages & Customer Benefits
High Torque Transmission: Rigid flange design handles heavy loads without slip or wear, reducing maintenance downtime.
Easy Installation: Flanged halves with pre-drilled bolt holes simplify alignment and assembly, saving labor time.
Long Service Life: Premium materials and heat treatment resist fatigue and deformation, ensuring reliable operation under cyclic loads.
Versatile Compatibility: Can be used with keyed shafts or splined shafts; custom keyway dimensions are available.
Cost-Effective: Direct factory supply eliminates middlemen, offering competitive pricing without compromising quality.
Global Logistics: Shipped via Port of Shanghai, Tianjin, or Qingdao with fast delivery to North America, Europe, Asia, and more.
Our Company Strength & Trustworthiness
Established in 2017, Hebei Speed Torque Transmission Technology Co., Ltd. has grown into a reliable partner for power transmission components. Our factory spans 3,000-5,000 m², staffed by 101-200 experienced employees. We hold ISO9001 certification, ensuring that every YL Series Coupling meets strict quality control procedures. With annual export value between US$5 million and US$10 million, we serve diverse markets including North America, South America, Europe, Southeast Asia, Africa, and Oceania.
Our professional engineering team supports custom designs and rapid prototyping. We maintain inventory of common sizes for quick shipment. Whether you need a single prototype or bulk orders, we offer competitive wholesale pricing and flexible packaging. Contact us today for your YL Series Rigid Flange Coupling requirements – we are committed to delivering excellence in transmission technology.
Frequently Asked Questions (FAQ)
What is the difference between a rigid flange coupling and a flexible coupling?
A rigid flange coupling provides a solid connection with no angular or axial misalignment compensation, ideal for precisely aligned shafts. In contrast, flexible couplings allow some misalignment but may have lower torque capacity.Can I order custom bore sizes and keyways?
Yes, we offer custom machining for bore diameters, keyway dimensions, and keyway positions based on your drawings or specifications. Contact our sales team for details.What materials are used in the YL Series couplings?
We typically use high-quality carbon steel (e.g., C45) or alloy steel (e.g., 40Cr). Stainless steel is also available on request for corrosive environments.How do I install the coupling correctly?
Ensure both shafts are aligned within 0.02 mm radial misalignment. Clean the shaft ends and bore, then slide the coupling halves onto each shaft. Secure with bolts and torque to specified values. Refer to our installation manual for detailed steps.What is the maximum operating temperature?
Standard couplings can work in temperatures from -20°C to +120°C. For higher temperatures, special material or heat treatment can be applied – please inquire.Do you provide balancing services?
Yes, we offer static and dynamic balancing for high-speed applications (e.g., >1500 rpm). Balancing grade is optional and can be specified per ISO grade.How long is the lead time for standard and custom orders?
Standard sizes typically ship within 7-15 days after order confirmation. Custom orders usually require 15-25 days depending on complexity.What certifications do your couplings have?
Our production process is ISO9001 certified. We can also provide material certificates and inspection reports upon request.
Choose Hebei Speed Torque for your power transmission needs. Our YL Series Rigid Flange Coupling delivers reliability, precision, and durability – backed by a professional team and global service network. Request a quote today!
