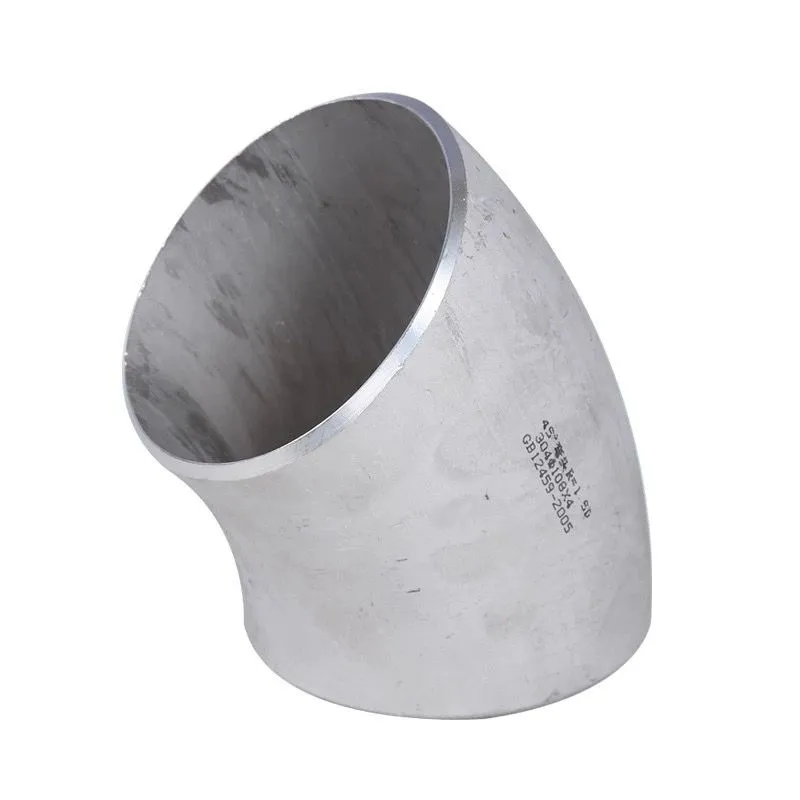

As a leading manufacturer with over seven years of expertise, Wuxi Yansheng Technology Co., Ltd. is dedicated to producing high-quality industrial components. Our Premium Stainless Steel Welding Elbow is engineered to meet the rigorous demands of modern industrial piping systems. We combine advanced manufacturing techniques with stringent quality control, backed by certifications like ISO9001 and ISO14000, to deliver fittings that ensure reliability, longevity, and optimal flow in your critical applications. This product represents our commitment to providing durable solutions that support the efficiency and safety of operations across various global markets.
Our welding elbows are designed for seamless integration into complex piping networks. The core value lies in their exceptional durability and corrosion resistance, which minimizes maintenance needs and extends the overall system lifecycle. Key features include:
- Superior Material Integrity: Fabricated from premium-grade stainless steel, offering excellent resistance to oxidation, pitting, and stress corrosion cracking.
- Precision Engineering: Manufactured to exacting dimensional tolerances, ensuring a perfect fit and alignment during welding, which reduces installation time and potential leak points.
- Versatile Configuration: Available in standard angles (45°, 90°, 180°) and long/short radius options to accommodate diverse layout requirements.
- Optimized Flow Characteristics: The smooth internal surface finish reduces turbulence and pressure drop, enhancing the efficiency of fluid or gas transfer.
- High-Temperature and Pressure Performance: Capable of withstanding extreme operating conditions commonly found in chemical, petrochemical, and power generation plants.
To provide a clear overview, here are some typical technical specifications for our standard range of welding elbows. Custom dimensions and specifications are available upon request to meet your specific project needs.
| Parameter | Typical Specification / Range |
| Material Grades | AISI 304, 304L, 316, 316L, 321, 310S |
| Standard Angles | 45°, 90°, 180° |
| Nominal Pipe Size (NPS) | 1/2" to 24" (Larger sizes customizable) |
| Wall Thickness (Schedule) | 5S, 10S, 40S, 80S, 160S, XXS |
| Manufacturing Standard | ASME B16.9, ASTM A403 |
| End Preparation | Beveled ends for butt welding |
The advantages of choosing our welding elbows translate directly into tangible benefits for your business. They contribute to reduced system downtime due to their reliability, lower total cost of ownership through long service life, and enhanced safety by maintaining system integrity under pressure. Their compatibility with a wide range of media—from water and steam to aggressive chemicals—makes them a versatile choice for industries such as oil & gas, food & beverage, pharmaceuticals, and shipbuilding.
With an annual export value ranging from US$50 Million to US$100 Million and a presence in major markets worldwide including North America, Europe, and Southeast Asia, Wuxi Yansheng Technology has established a strong reputation for reliability. Our 1,000-3,000 square meter factory, staffed by 101-200 skilled professionals, ensures scalable production capacity and consistent quality. Supported by a portfolio of management system certifications and efficient logistics through major ports like Shanghai and Qingdao, we are positioned to be your trusted partner. Choose our Premium Stainless Steel Welding Elbows for a combination of performance, durability, and manufacturer credibility that supports your project's success from start to finish. Contact us today for a quotation or to discuss your specific requirements.
Frequently Asked Questions (FAQ)
-
Q: What are the main differences between 304 and 316 stainless steel for these elbows?
A: Both are austenitic grades offering good corrosion resistance. Type 316 contains molybdenum, providing superior resistance to chlorides and acids, making it suitable for more aggressive environments like marine or chemical processing. Type 304 is a versatile, cost-effective choice for many general industrial applications. -
Q: Can you manufacture elbows to dimensions not listed in the standard table?
A: Yes. As a manufacturer, we offer extensive customization. Non-standard angles, special radii, unique diameters, and specific wall thicknesses can be produced based on your technical drawings and specifications. -
Q: What surface treatments are available to prevent corrosion?
A: Standard finishes include pickled (chemically cleaned) and polished (to various grit levels). For enhanced performance in specific environments, electropolishing or passivation treatments are available upon request. -
Q: How do you ensure the quality and consistency of your welding elbows?
A: Our production follows strict quality management systems (ISO9001, etc.). We conduct in-process inspections, dimensional checks, and material certification. Final products can be supplied with Mill Test Certificates (MTC) or other required documentation. -
Q: What is the typical lead time for standard and custom orders?
A: Lead times vary by order size and complexity. Standard items from inventory may ship quickly. For custom or large-volume production runs, we provide a clear timeline upon order confirmation, ensuring reliable scheduling for your project. -
Q: Are your products suitable for high-purity applications like pharmaceuticals or food processing?
A: Absolutely. We can supply elbows made from appropriate stainless steel grades (e.g., 316L) with specific internal finishes (e.g., high-level electropolish) that meet the sanitary and cleanability standards required in such industries. -
Q: What packaging is used to protect the elbows during international shipping?
A: We use robust packaging tailored to the product. Standard methods include wooden crates, pallets, or steel frames, with protective wrapping to prevent surface damage and corrosion during transit. -
Q: Do you provide technical support for system design or material selection?
A: Yes, our technical team can assist with material selection based on your service conditions (media, temperature, pressure) and offer guidance on fitting specifications to ensure optimal system performance.
