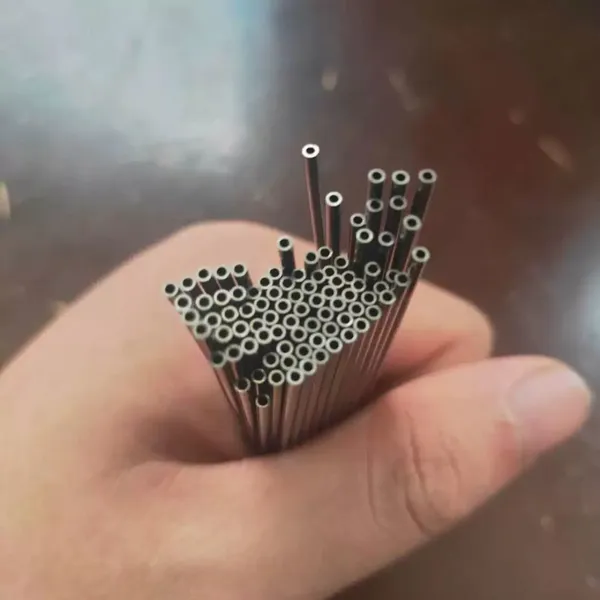

Help CenterASTM A213 TP316L SS Heat Exchanger Tube Anti-Corrosion Heat Transfer Tube
Product Spotlights
Related Products
-
High Temperature and Corrosion Resistant Seamless and Welded Stainless Steel Pipe for Heat ExchangersUS$ 2.75 - 4.55MOQ: 100 Kilograms -
Bright Annealed ASTM A312 TP304 Seamless Stainless Steel Pipe For Food & Chemical TransportationUS$ 2.75 - 4.55MOQ: 100 Kilograms
-
ASTM A213 TP316L Acid Pickling Stainless Steel Seamless Tube for Chemical ProcessingUS$ 2.75 - 4.55MOQ: 100 Kilograms
-
ASTM A312 TP304 Stainless Steel Seamless Pipe Corrosion Resistant TubingUS$ 2.75 - 4.55MOQ: 100 Kilograms
-
Factory Price ASTM A312 Seamless and Welded Stainless Steel Pipe 201 304 316 309S 310S 430 Brushed/Mirror PolishedUS$ 2.75 - 4.55MOQ: 100 Kilograms
As a leading manufacturer specializing in high-performance stainless steel tubing, Wuxi Yansheng Technology Co., Ltd. proudly presents our premium ASTM A213 TP316L Stainless Steel Heat Exchanger Tubes. Engineered for demanding thermal applications, these seamless tubes offer exceptional resistance to corrosion and high temperatures, ensuring long-term reliability and efficiency in your heat transfer systems. With our commitment to quality and extensive manufacturing expertise since 2017, we provide solutions that enhance operational performance and reduce lifecycle costs for industries worldwide.
Our TP316L heat exchanger tubes are crafted from austenitic stainless steel, renowned for its superior performance in corrosive environments. The inclusion of molybdenum significantly boosts resistance to pitting and crevice corrosion, particularly from chlorides, making these tubes an ideal choice for chemical processing, power generation, and marine applications. The seamless construction ensures a uniform microstructure, excellent pressure integrity, and a smooth internal surface that minimizes fouling and pressure drop, leading to optimized heat transfer coefficients.
Key Technical Specifications & Advantages:
- Superior Material Composition: The TP316L grade offers low carbon content, preventing carbide precipitation during welding and high-temperature service, which maintains corrosion resistance in the heat-affected zones.
- Enhanced Mechanical Properties: These tubes exhibit high tensile and yield strength, allowing them to withstand significant internal pressures and mechanical stress.
- Wide Operational Temperature Range: Suitable for continuous operation from cryogenic temperatures up to approximately 800°C (1472°F), depending on the specific corrosive environment.
- Customizable Dimensions: Available in a wide range of outer diameters, wall thicknesses, and lengths to fit your specific heat exchanger design requirements.
To provide a clear overview, here are some typical parameters for our standard offerings:
| Parameter | Typical Range / Specification |
|---|---|
| Standard | ASTM A213 / ASME SA213 |
| Grade | TP316L |
| Outer Diameter (OD) | 6.0 mm to 50.8 mm (Customizable) |
| Wall Thickness | 0.5 mm to 4.0 mm (Customizable) |
| Length | Up to 24 meters (Customizable) |
| Tolerance | Per ASTM A213 requirements |
Benefits for Your Operations:
- Extended Equipment Lifespan: Exceptional corrosion resistance reduces tube failure and the need for frequent replacements.
- Improved Thermal Efficiency: The smooth seamless surface and consistent material properties ensure efficient heat transfer.
- Reduced Maintenance Costs: High resistance to scaling and fouling lowers cleaning frequency and associated downtime.
- Design Flexibility: Our ability to customize dimensions allows for optimal integration into new or existing exchanger designs.
- Compliance & Reliability: Manufactured to international ASTM/ASME standards, ensuring material consistency and performance predictability.
Trust in a partner with a proven track record. Operating from a modern facility spanning 1,000-3,000 square meters and backed by a dedicated team of 101-200 professionals, Wuxi Yansheng Technology has established itself as a reliable global supplier, with an annual export value reaching up to US$100 Million. Our products reach critical markets across North America, Europe, Asia, and beyond. Supported by a robust quality management system evidenced by certifications including ISO9001, we ensure every length of TP316L tube meets stringent specifications. Choose our heat exchanger tubes for a combination of material excellence, manufacturing precision, and supply chain reliability that safeguards your process integrity. Contact us today to discuss your project requirements and receive a detailed quotation.
Frequently Asked Questions (FAQ)
-
Q: What is the main advantage of TP316L over TP304/304L for heat exchanger tubes?
A: TP316L contains molybdenum (typically 2-3%), which provides significantly better resistance to pitting and crevice corrosion in chloride-containing environments, such as seawater or chemical process streams, making it more durable in aggressive conditions. -
Q: Are these tubes suitable for high-pressure applications?
A: Yes. The seamless manufacturing process and the mechanical properties of ASTM A213 TP316L allow these tubes to be used in high-pressure heat exchangers, boilers, and superheaters. The specific pressure rating depends on the tube dimensions and design temperature. -
Q: Can you supply tubes with special surface finishes?
A: Absolutely. We can provide tubes with various finishes including pickled (matte), bright annealed (smooth, shiny), or polished surfaces to meet specific cleanliness or aesthetic requirements for your application. -
Q: What end preparations are available?
A: We offer plain cut ends as standard. Beveled ends for welding or threaded ends are also available as optional features upon request to facilitate easier installation. -
Q: How do you ensure the quality and traceability of your tubes?
A: Our production follows strict quality control protocols aligned with our ISO9001 certification. We perform chemical analysis, mechanical testing, hydrostatic/pneumatic tests, and non-destructive examinations. Full material traceability via mill test certificates (MTC) is provided. -
Q: What is your typical lead time for customized orders?
A: Lead times vary based on order quantity, dimensions, and required testing. Generally, for standard sizes, we can ship within 3-4 weeks. We provide accurate timelines upon order confirmation. -
Q: Which ports do you ship from?
A: We primarily ship from major Chinese ports including Shanghai Port, Tianjin Port, Qingdao Port, and Ningbo Port, ensuring flexible and efficient logistics options for our global customers. -
Q: Can these tubes be used in food & beverage or pharmaceutical applications?
A: While TP316L is often used in sanitary applications due to its corrosion resistance, suitability depends on specific process media and standards. The material itself is cleanable and can be supplied with appropriate finishes. Please consult with our technical team for your specific use case.
