As a leading manufacturer with a strong foundation since 2017, Wuxi Yansheng Technology Co., Ltd. specializes in producing premium-grade stainless steel structural components. Our Duplex 2205 Stainless Steel Channel Beam represents the pinnacle of material engineering, designed for applications where exceptional strength and superior corrosion resistance are non-negotiable. This high-strength structural profile is engineered to deliver long-term performance and reliability in the most demanding environments, from offshore platforms to chemical processing plants. We combine advanced manufacturing processes with stringent quality control, backed by a comprehensive management system, to ensure every beam meets the highest standards of precision and durability. Trust in our expertise and extensive export experience to provide the structural solutions your project requires.
Core Features & Technical Advantages:
Superior Material Composition: Fabricated from Duplex 2205 (UNS S32205/S31803), this alloy offers an optimal austenitic-ferritic microstructure, delivering a unique combination of high strength and excellent corrosion resistance, particularly against chloride-induced stress corrosion cracking.
Exceptional Mechanical Properties: The duplex structure provides approximately twice the yield strength of standard austenitic stainless steels like 304 or 316, allowing for lighter, more cost-effective structural designs without compromising safety or integrity.
Enhanced Durability: Exhibits outstanding resistance to pitting, crevice corrosion, and erosion, making it an ideal choice for marine, coastal, pulp & paper, and chemical processing applications with aggressive media.
Versatile Structural Profile: The channel beam (U-channel) design offers excellent load-bearing capacity and torsional stability, perfect for framing, supports, braces, and custom fabrications.
Ready for Fabrication: Supplied with a clean, pickled and passivated surface finish, the beams are weldable and machinable using standard techniques for duplex grades, facilitating easy integration into your structures.
Detailed Specifications & Benefits:
The following table outlines key specifications that define the performance envelope of our Duplex 2205 Channel Beams. These parameters ensure predictable and reliable behavior in service.
| Property | Typical Value / Description | Client Benefit |
| Yield Strength (Rp0.2) | ≥ 450 MPa | Enables design with higher allowable stresses, reducing material weight and cost. |
| Tensile Strength (Rm) | 620 - 880 MPa | Provides a high safety margin and excellent toughness. |
| Elongation (A5) | ≥ 25% | Ensures good formability and ductility for fabrication. |
| Pitting Resistance Equivalent (PREN) | ≥ 35 | Quantifies superior resistance to pitting corrosion in chloride environments. |
| Common Standards | ASTM A276, A484, A479 | Guarantees material conformity for international projects and specifications. |
| Typical Dimensions (Flange x Web x Thickness) | Customizable per request (e.g., 100x50x6mm) | Flexibility to match specific project blueprints and load requirements. |
Choosing our Duplex 2205 Channel Beams translates into tangible project advantages. You achieve longer service life with reduced maintenance, leading to lower total cost of ownership. The high strength-to-weight ratio allows for optimized structural designs, potentially saving on foundation costs and installation time. Furthermore, its performance in corrosive settings can eliminate the need for protective coatings, simplifying logistics and ensuring environmental compliance.
Frequently Asked Questions (FAQ):
Q: What is the main advantage of Duplex 2205 over 316L stainless steel for structural use?
A: Duplex 2205 offers approximately double the yield strength of 316L and significantly higher resistance to stress corrosion cracking, making it suitable for heavier loads and more aggressive environments like offshore or chemical exposure.Q: Can these channel beams be welded on-site?
A: Yes, they are weldable. However, it is crucial to follow welding procedures specific to duplex stainless steels (using matching filler metals and controlling heat input) to preserve the corrosion resistance and mechanical properties of the weld zone.Q: What surface finishes are available?
A: The standard finish is hot-rolled, pickled, and passivated, which removes scale and restores the passive corrosion-resistant layer. Other finishes, such as brushed or polished, may be available upon request for specific aesthetic or functional needs.Q: Do you provide material certification?
A: Yes. We can supply a Mill Test Certificate (MTC) or Certificate of Conformance (CoC) with each shipment, detailing the chemical composition and mechanical properties as per the ordered standards.Q: What are the typical lead times for custom sizes?
A: Lead times vary based on the order quantity and specific customization requirements. We maintain efficient production scheduling to meet project timelines, and a precise delivery estimate can be provided upon receipt of your detailed inquiry.Q: How does the cost compare to carbon steel beams?
A: While the initial material cost is higher, Duplex 2205 often provides a better life-cycle cost. It eliminates painting/coating expenses, reduces maintenance downtime, and offers a much longer lifespan in corrosive conditions, leading to significant savings over time.Q: What industries most commonly use this product?
A: Key industries include offshore oil & gas, shipbuilding, chemical and petrochemical processing, pulp & paper, desalination plants, and architectural applications in coastal or high-pollution areas requiring high strength and corrosion resistance.Q: What packaging is used for export?

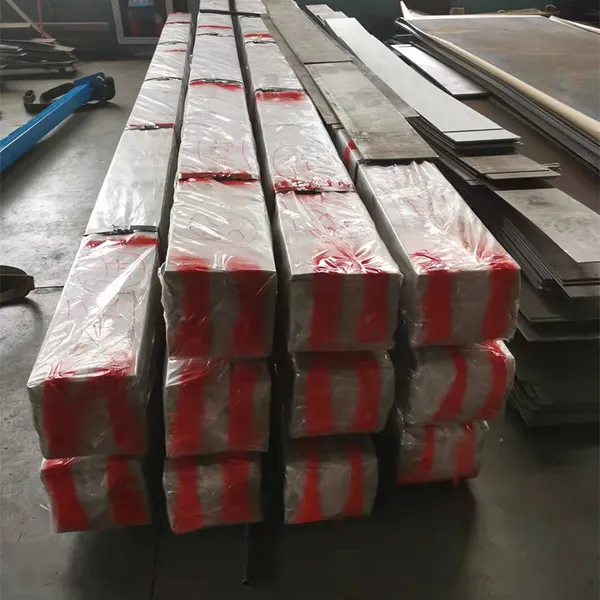

A: Beams are typically bundled securely with steel straps on wooden skids or in wooden crates to prevent damage during transit. Packaging is designed to withstand handling at major ports like Shanghai, Tianjin, or Qingdao, from which we regularly ship globally.
Wuxi Yansheng Technology is committed to delivering not just a product, but a reliable structural partnership. Our operational scale, with a factory spanning 1,000-3,000 square meters and a dedicated team of 101-200 professionals, ensures consistent quality and production capacity. Supported by a robust quality management framework and an annual export value reflecting our global reach across continents from North America to Oceania, we have the expertise and infrastructure to be your trusted supplier. Let our Duplex 2205 Stainless Steel Channel Beams provide the robust, corrosion-defying backbone your next critical project demands. Contact us today to discuss your specifications and receive a competitive quotation.
