In coal washing, mineral processing, sand aggregate production, metallurgy, construction waste recycling and solid waste treatment, manufacturers are constantly troubled by sticky wet fine ores, high-mud raw coal and viscous industrial residues. Conventional rigid vibrating screens suffer severe mesh blinding, frequent shutdown cleaning, low throughput, rapid screen panel abrasion and loud running noise, which cut continuous production capacity and push up maintenance costs sharply.

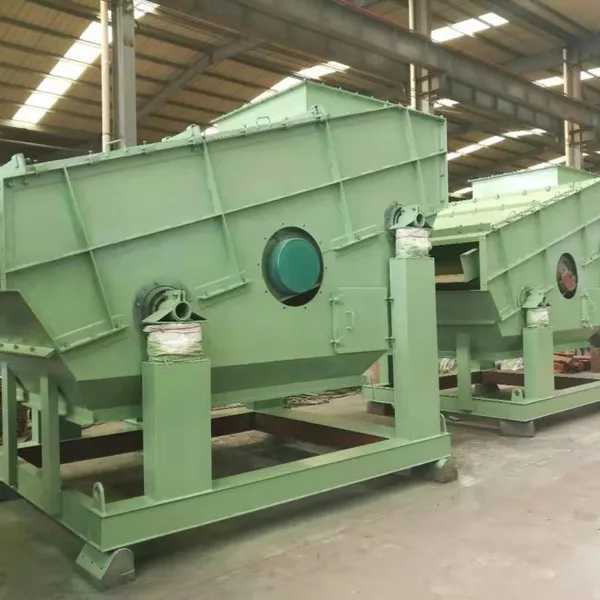

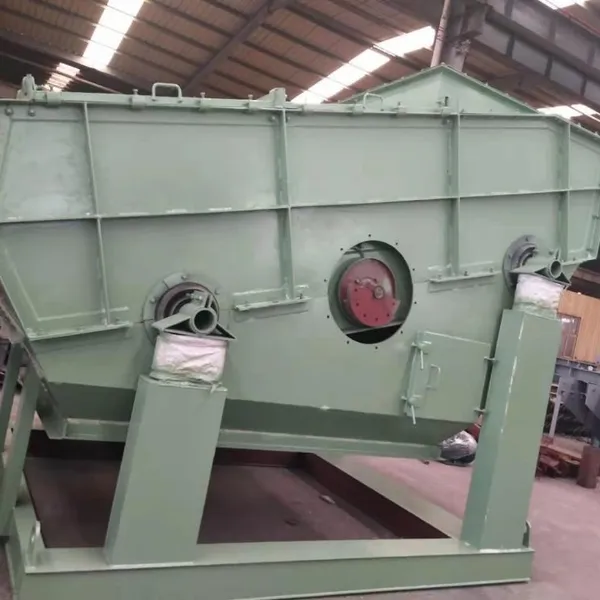

The Flip-Flow Screen, also named elastic environmental screen, is professionally developed to solve screening bottlenecks of hard-to-sort wet sticky materials. Adopting dual-frame relative motion and flexible polyurethane elastic screen decks, this eco-friendly screening machine delivers unique periodic stretch-relax flip-flow movement, realizing automatic self-cleaning, low-noise green operation and ultra-high grading efficiency. It has become the optimal upgrade equipment for modern mining and environmental recycling production lines.
Unique Flip-Flow Elastic Working Principle, Zero Mesh Blocking
The core competitiveness of the flip-flow screen lies in its two-mass resonance structure consisting of fixed outer frame and floating inner frame driven by crank-link exciter. The elastic polyurethane screen panels stretch and relax at high frequency (800–1200 cycles per minute), generating strong 50G acceleration on materials.
Constant elastic deformation of screen holes produces secondary micro-vibration, which bounces off adhered fine powder, clay and damp particles automatically. The low-friction polyurethane surface further prevents material adhesion, achieving thorough self-cleaning without manual screen washing or shutdown clearance. Even materials with moisture content above 30% can maintain unobstructed screen apertures and stable long-term throughput, completely eliminating the industry-wide pain point of mesh blinding and efficiency attenuation.
Eco-Friendly Flexible Structure, Low Noise & Energy Saving
Different from all-metal rigid screens with harsh metal collision noise, the elastic environmental flip-flow screen uses full polyurethane flexible screen media and multi-layer rubber shock absorbers to absorb vibration impact efficiently. Its running noise is 15–20dB lower than traditional screening machines, fully complying with international workshop environmental protection standards.
Lightweight elastic panels reduce overall equipment load by nearly 50%, cutting power consumption by 18%–25% compared with same-size ordinary vibrating screens. No dust leakage or material overflow occurs during screening thanks to fully sealed frame design, supporting green low-pollution production transformation for mining and waste recycling enterprises.
Wear-Resistant Polyurethane Screen Deck, Long Service Life & Low Maintenance
All screen panels are molded from high-toughness wear-resistant polyurethane with excellent anti-fatigue, anti-corrosion and anti-impact performance. Its service life reaches 3–5 times that of manganese steel or woven metal screens, greatly reducing screen replacement frequency and spare parts expenditure.
Modular segmented screen panel design allows local single-piece replacement instead of whole deck disassembly, cutting maintenance time by over 70%. Imported double-sealed heavy-duty bearings and box-type exciter with forced heat dissipation ensure stable long-hour operation, minimizing unexpected downtime losses caused by equipment failure.
High Throughput & Precise Multi-Stage Grading
Optimized banana-type screen deck gradient realizes fast material spreading at feeding end and thorough fine particle penetration at discharging end. Processing capacity rises by 40%–60% vs traditional screens under identical working conditions. Single, double or triple deck configurations are customizable for coarse, medium and fine multi-stage separation, with screen aperture ranging from 0.5mm to 50mm to meet precise grading demands of raw coal, iron ore, sand, slag and construction rubbish.
Uniform material stratification on elastic surface avoids particle mixing, stabilizing finished product particle size qualification rate and improving resource recovery efficiency for mineral and waste recycling projects.
Wide Application Scenarios
This elastic environmental flip-flow screen targets all difficult wet-sticky screening conditions, widely applied in:
Coal preparation: deep dry screening of damp fine raw coal
Mineral processing: classification of weathered sticky ore, iron ore and manganese ore
Aggregate plant: separation of muddy sand and gravel
Metallurgy: screening of wet furnace slag and coke fines
Solid waste & C&D recycling: sorting damp construction rubbish and organic waste
Chemical & building materials: grading viscous powder raw materials
Core Product Advantages
100% Anti-Blinding Self-Cleaning: High-frequency flip-flow elastic movement eliminates material adhesion, no frequent shutdown cleaning required
Green Low-Noise Operation: Flexible shock absorption structure reduces workshop noise, dust-sealed design meets environmental standards
Super Wear Resistance & Long Lifespan: Polyurethane elastic panels extend service cycle, lower spare parts cost
Energy-Saving High Throughput: Lightweight structure cuts power consumption, processing capacity greatly upgraded
Modular Easy Maintenance: Segmented screen decks for fast partial replacement, simple daily overhaul
Universal Multi-Condition Adaptation: Customizable single/multi-deck, aperture and amplitude for all wet sticky hard-to-screen materials
Conclusion
Against the global trend of green, high-efficiency and low-consumption industrial production, the flip-flow elastic environmental screen breaks through the performance limits of rigid vibrating screens. Integrating self-cleaning anti-blocking, environmental protection, energy saving and stable high-yield advantages, it thoroughly solves screening difficulties of wet viscous materials, effectively reducing overall operational costs for mines, coal washing plants and waste recycling factories. It is the preferred high-performance elastic screening equipment for industrial production line upgrading.
