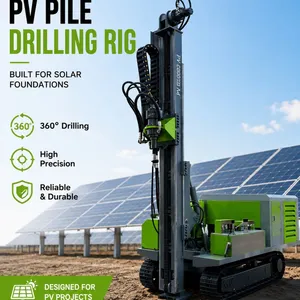

Help CenterPD-4000 Hydraulic PV Pile Drilling Rig for Solar Foundation
Product Spotlights
2. 360 Multi-Angle Drilling with High Precision & Stable Operation
3. Multi-Functional Design: Ideal for Spiral & Pneumatic Solar Foundation Piling
Related Products
-
Zgyx-412b-1 DTH Drilling Rig For Mining And QuarryUS$ 5000 - 10000MOQ: 1 Set -
Integrated Dth Surface Quarry Drilling Rig ZGYX 453US$ 10000 - 150000MOQ: 1 Set
-
Spare Parts for Blades and Dies of Press Brakes and Shearing Machines in Various ModelsUS$ 20MOQ: 1 Piece
-
TPM8 Series 100-Ton 3.1-Meter Electro-Hydraulic Servo CNC Press BrakeUS$ 6880MOQ: 1 Combo
-
One Set of 1160 CNC Milling Machine With Syntec 22 Control SystemUS$ 5600MOQ: 1 Piece
Production Overview

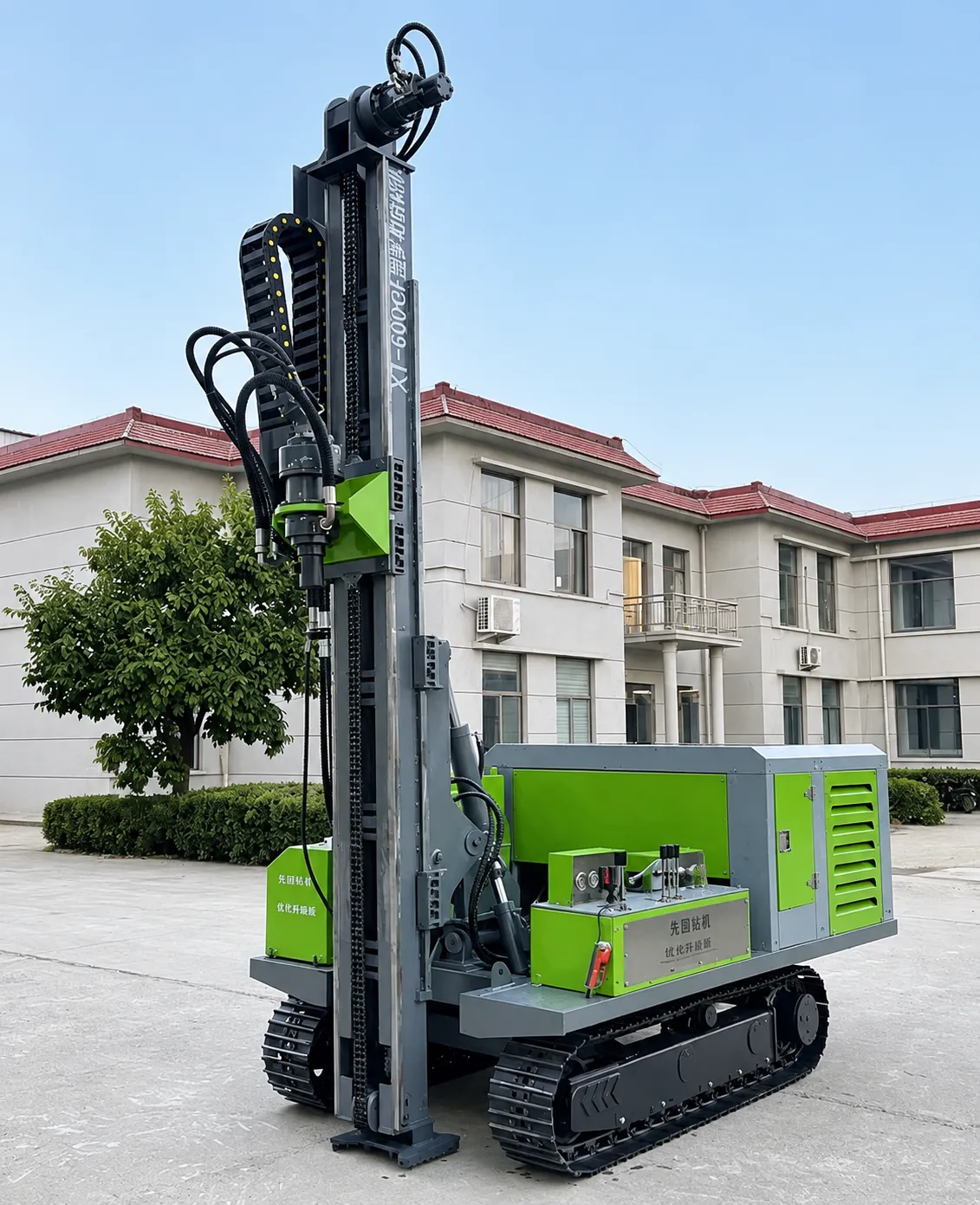

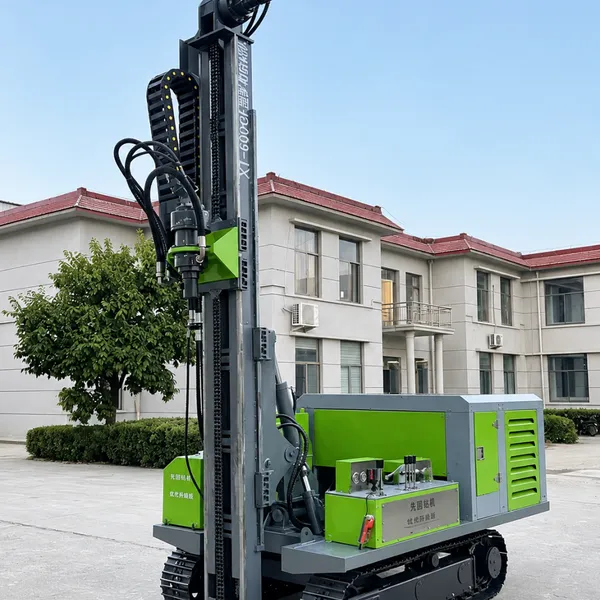

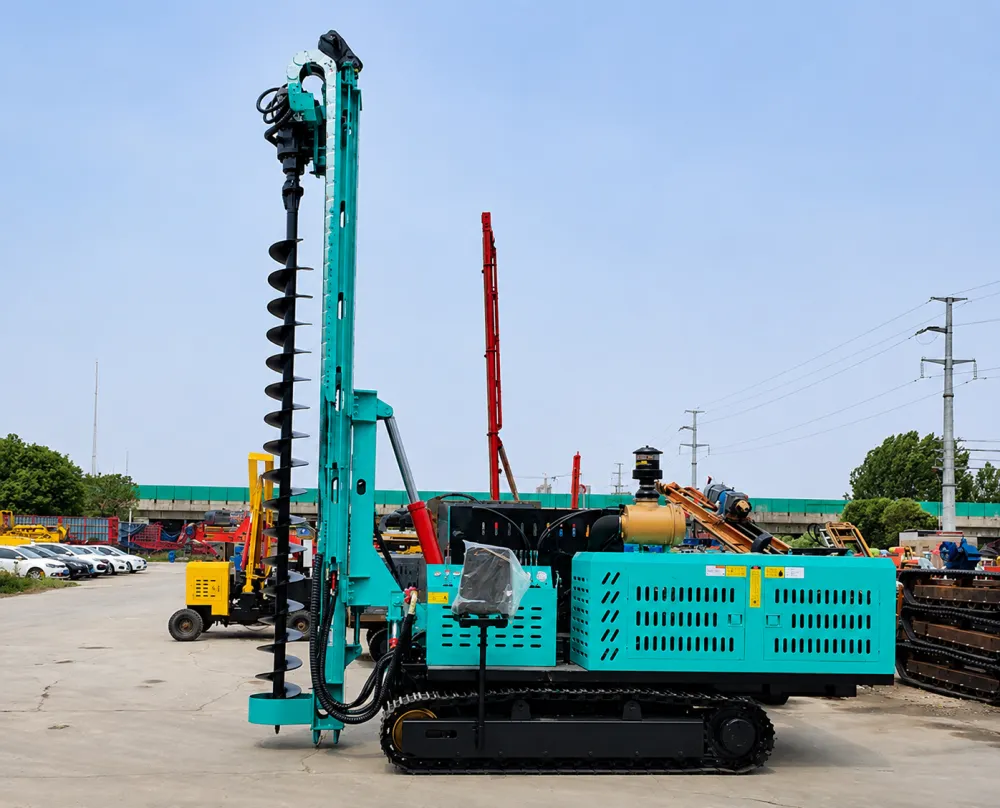

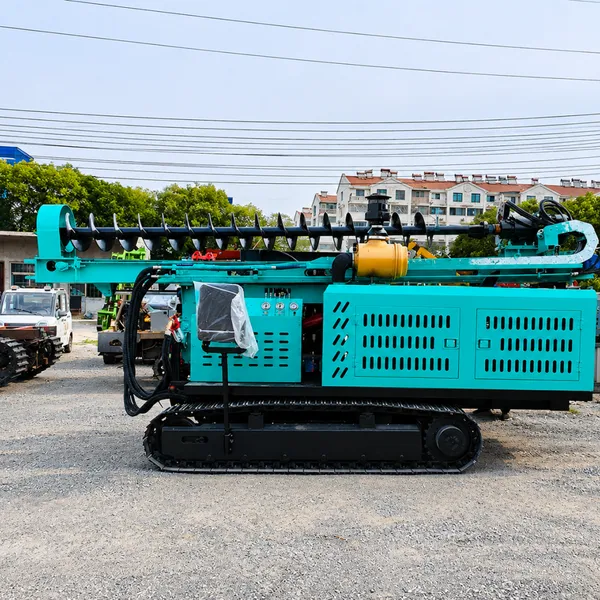

PD-4000 crawler type hydraulic PV pile driver is a high-performance piling rig independently developed for solar farm construction and ground foundation engineering. Integrating advanced loading, piling, and drilling technologies, this model adopts innovative design concepts to optimize overall efficiency, positioning accuracy, and energy saving.
With its heavy-duty crawler chassis and 92kW 6-cylinder diesel engine, it delivers exceptional stability and high efficiency in rugged terrain, making it widely applied in solar PV projects, highway guardrail installation, and foundation construction.

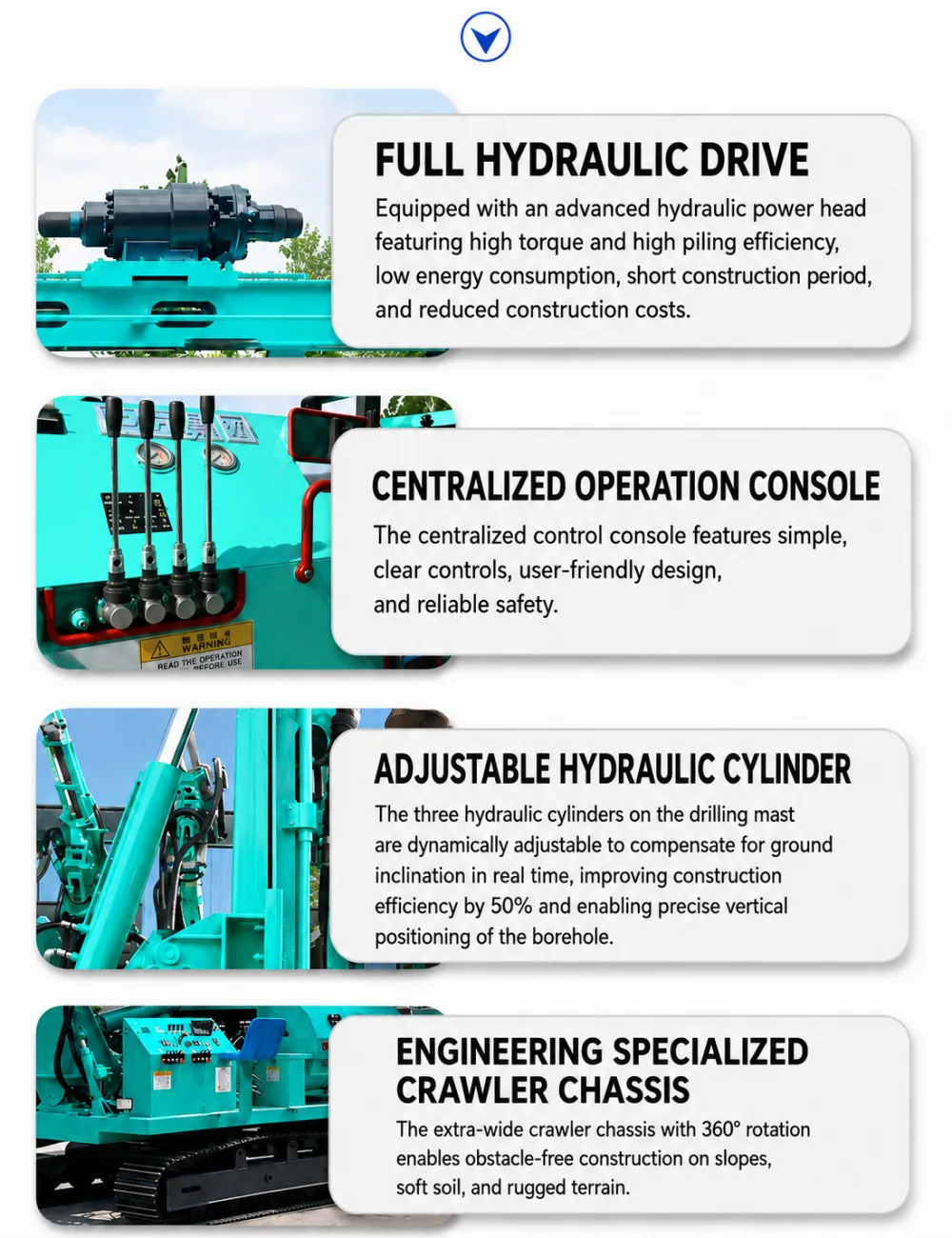

Hydraulic system: advanced hydraulic system, high-quality hydraulic components and strict assembly process to ensure the efficiency and durability of the hydraulic system, the power head of the oil pump is 2000nm, which can ensure the working stability and mechanical durability of the pile driver to the maximum extent.
Shape design: adopt wheeled or domestic high-quality crawler chassis. High strength, good stability, in line with the design idea of industrial aesthetics, the operator's working space is more spacious

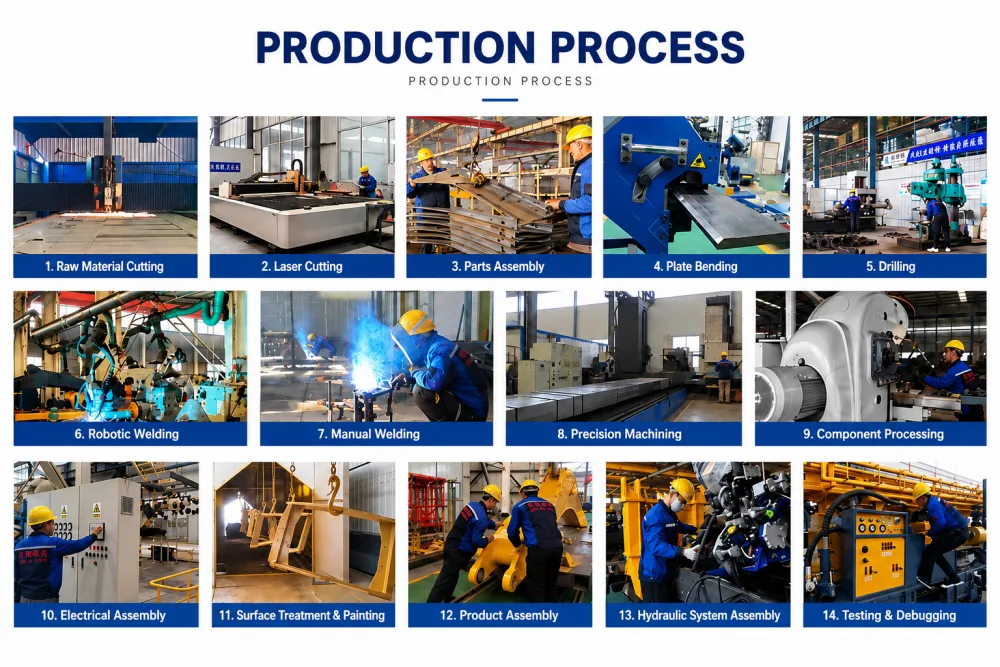

Production process: The production process tends to be more reasonable, the wear-resistant parts are all heat-treated, the welding process is rigorous, the deformation is reduced, and the testing equipment is perfect.

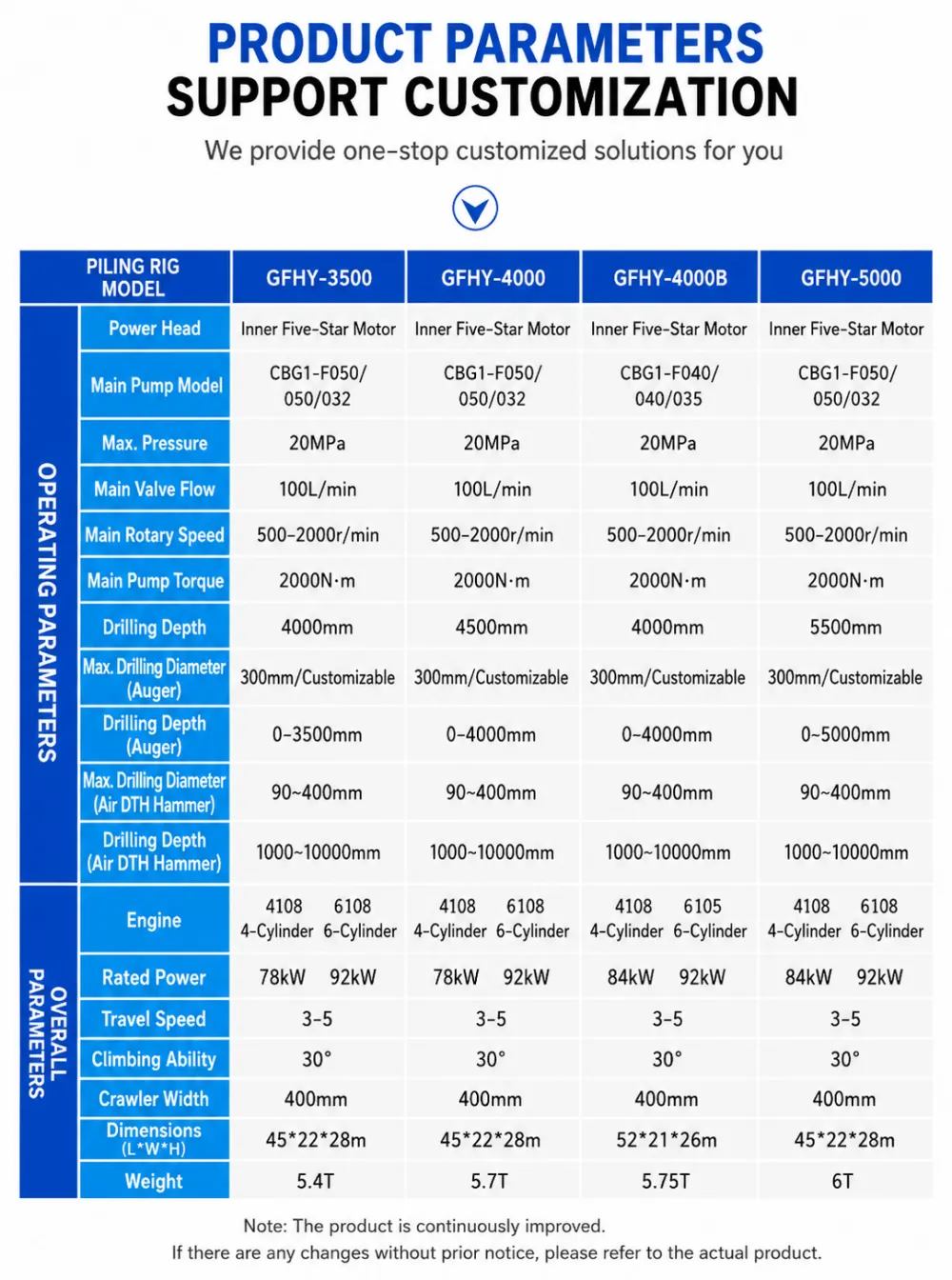

Technical Specification
Key Advantages
• Superb Power: Driven by the 6108 six-cylinder engine with 92kW rated power, ensuring stable torque and sufficient capacity for continuous heavy-duty piling.
• 360° Drilling & Piling: Achieves omnidirectional drilling with exceptional precision, significantly improving working speed and project flexibility.

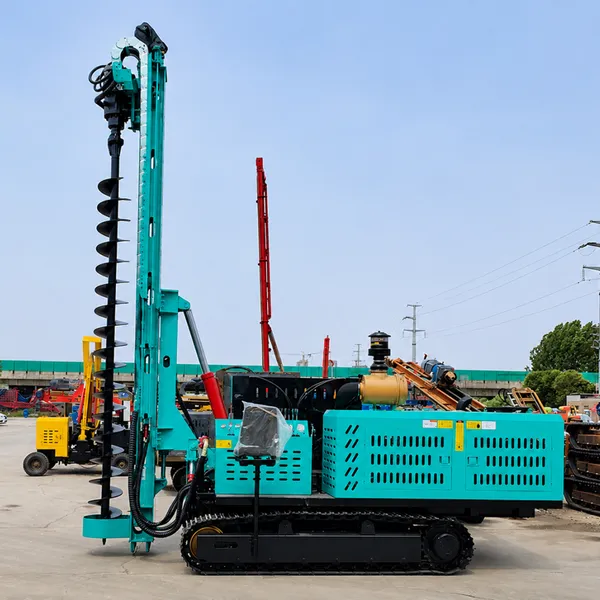

• Dual-Method Drilling: Supports both Spiral Drilling (for soft soil, max diameter 300mm, depth 4000mm) and Pneumatic DTH Drilling (for hard rock layer, diameter 90-400mm, depth up to 10000mm).
Applications & Projects
Applicable to: photovoltaic screw pile engineering, drilling engineering, geological exploration, construction engineering, engineering blasting and other projects. Power configuration: It adopts the domestic first-class 6108 turbocharged engine with a power of up to 60kw, which provides a reliable power source for construction operations.
-COMPANY BRIEF-
We provide high-quality and complete drilling equipment including drilling rigs, drilling tools, mud pumps, DTH drilling tools, rock drilling tools, etc. They are widely used in water wells, farmland irrigation, geological exploration, small pile holes, geothermal, rope coring, Mining etc. Our products are the products of choice for drilling engineers in many countries due to their precise design and efficient drilling in use.
Main product
Application
Borehole drilling, Civil Infrastructure, civil engineering, and infrastructure, for rock core drilling, Soil Testing and sampling, geophysical survey companies, Pile foundation drilling, bridge drilling, wind power generation, large-mouth engineering drilling, oil field, metallurgy, mining, geological mineral exploration, water conservancy and hydropower construction, coal mine, mine tunnel drilling, grouting reinforcement engineering, highway, subway, high-speed rail, concrete core sampling, etc, Coring exploration, drilling.

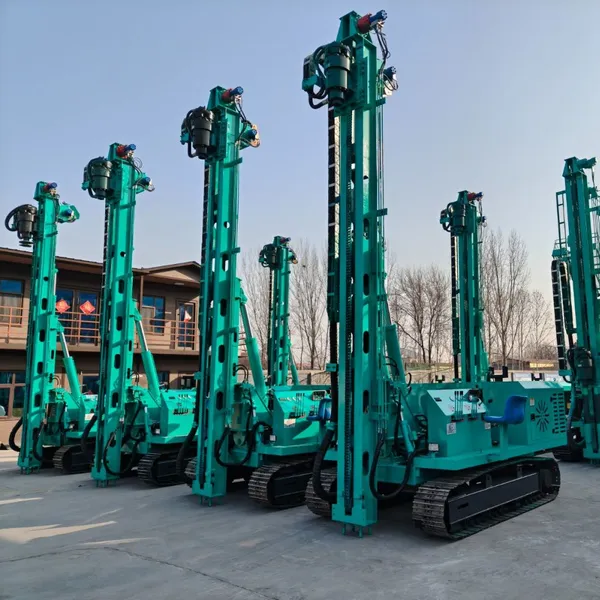

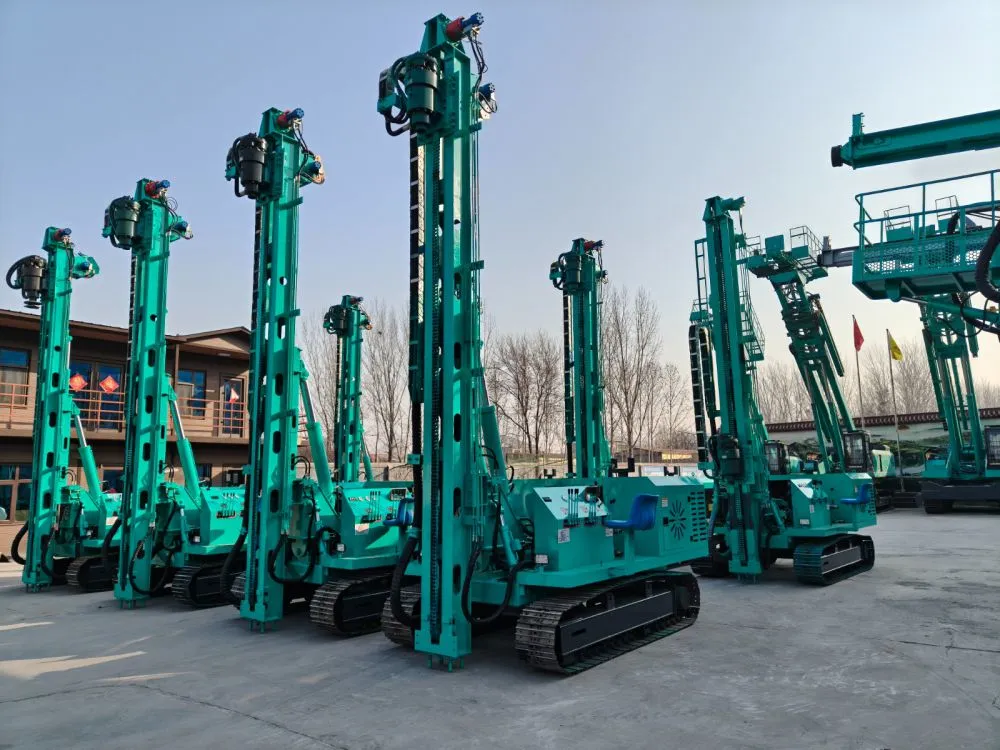

Workshop
Why we achive today′s achievements is because we are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients. Guangzhou International Technology Co.,Ltd. will continue committing to provide low cost Rock Drills, Drilling tools, well drilling rigs, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.
