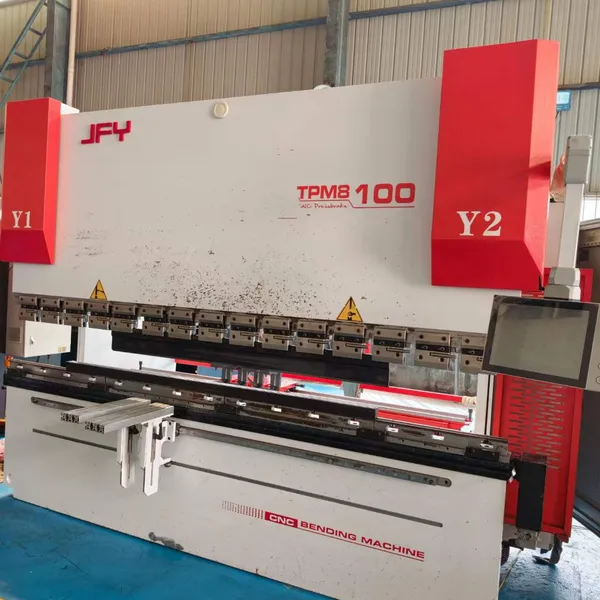

Help CenterTPM8 Series 100-Ton 3.1-Meter Electro-Hydraulic Servo CNC Press Brake
Product Spotlights

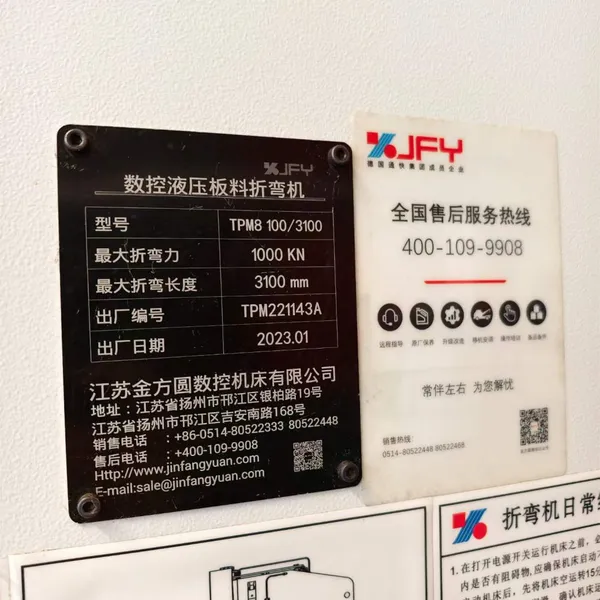

Authentic JFY TPM8 series original machine, produced in 2023, complete core assembly intact, stable original performance with low actual usage, well-maintained second-hand high-end servo bending equipment with full original technical standard retained.
Related Products
-
One Set of 1160 CNC Milling Machine With Syntec 22 Control SystemUS$ 5600MOQ: 1 Piece -
Jietongda VMC850 Vertical Machining CenterUS$ 9866MOQ: 1 Combo
-
YuHong V6 Vertical Machining CenterUS$ 8600MOQ: 1 Combo
-
Spare Parts for Blades and Dies of Press Brakes and Shearing Machines in Various ModelsUS$ 20MOQ: 1 Piece
-
Used Sinotruk HOWO 371 Tractor TruckUS$ 18085MOQ: 1 Set
1. Brand Premium & Second-Hand Premium Condition (Core Trust Point)
Original JFY (Member of TRUMPF Group) top-tier TPM8 flagship model, manufactured in 2023, low working hours, fully well-maintained, intact original assembly and factory calibration retained. As a subsidiary brand under Germany TRUMPF Group, it inherits European precision manufacturing standards, stable original performance with zero major overhaul, close-to-new machine condition, far higher cost performance than brand-new unit while keeping industrial top-tier reliability.
2. Ultra-Rigid Frame Structure, Permanent Bending Stability
Machine body adopts finite element stress optimization integrated casting & welding structure, high-strength steel integral frame with stress relief annealing treatment, anti-deformation under long-term heavy load. Standard built-in automatic mechanical crowning compensation system, automatically offsets slider deflection during bending, guarantees full-length linearity of 3.1m workpiece, consistent bending angle from left to right end without arc deviation, stable precision for long-time mass production.
3. High-Efficiency Electro-Hydraulic Servo Drive, Energy Saving & High Speed

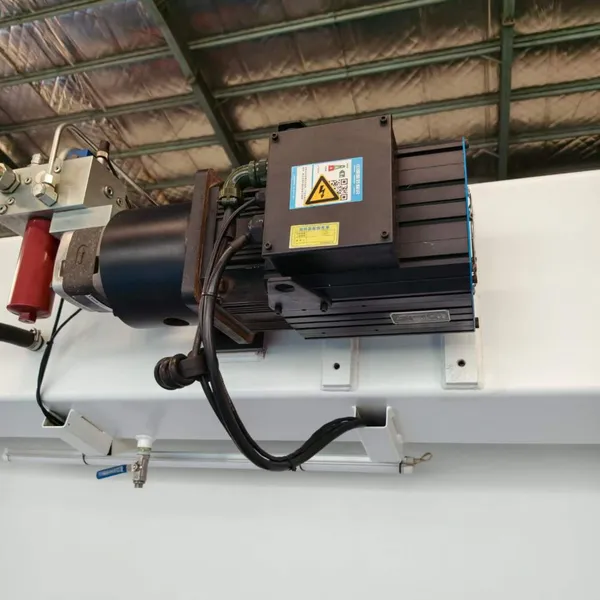

Adopts servo variable pump hydraulic system replacing traditional asynchronous motor drive:
Energy consumption reduced by 35%–40%, lower oil temperature, less heat generation, longer hydraulic component service lifeJFY International
Y-axis movement frequency 30% higher than conventional CNC press brakes, fast approach, stable bending, quick retraction, overall production efficiency boosted by 20%+
Lower operating noise, eco-friendly operation, reduces daily utility cost significantly for sheet metal workshops
4. Top-Grade Intelligent CNC Control System, Easy Operation & Zero Scrap
Standard equipped with original TJS-90T 19-inch industrial touchscreen CNC controller (TRUMPF technical support):
Windows 10 industrial system, 3D graphical bending simulation, real-time collision warning for mold/workpiece
Supports DXF/IGS CAD file direct import, automatic bending path calculation, offline programming compatible
Intuitive multi-touch operation, glove operable touch panel, new operators master programming within short time
High-precision closed-loop positioning, bending tolerance controlled within ±0.02mm, burr-free finished parts, greatly cuts material waste
5. Complete Standard High-End Configuration, Universal Processing Compatibility
100-ton bending force, 3100mm working length, 4+1 axis linkage standard setup:
Push-pull quick mold clamping, fast die change without extra tools, minimizes setup downtime

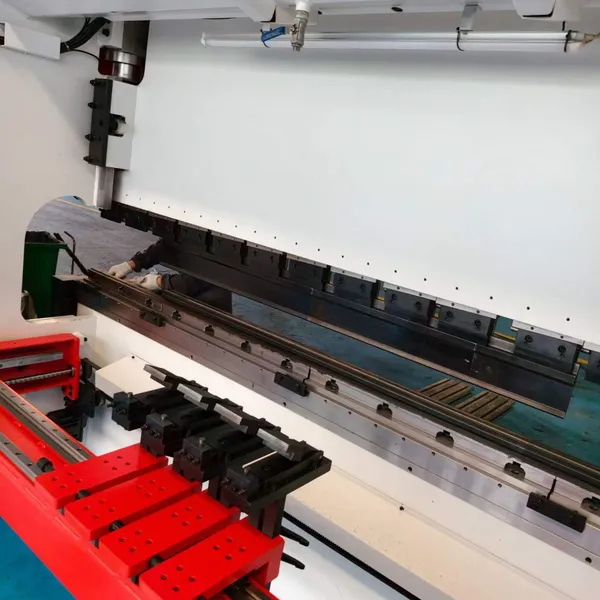

Heavy-duty backgauge with linear guide & ball screw, precise positioning for long-size metal plates
Widely applicable for carbon steel, stainless steel, aluminum, galvanized sheet; ideal for cabinet, construction, automotive, electrical enclosure, metal structure fabrication
Large throat depth & closed height, supports complex deep-cavity bending and large-size irregular workpieces
6. EU Standard Full Safety Protection, Operational Security
Built-in full safety protection system compliant with European CE standard:
Safety light curtain, dual redundant electrical & mechanical safety circuit interlock
Emergency stop, overload pressure protection, hydraulic lock anti-fall function
Anti-pinch safety design for slider movement, eliminates operational risk for continuous shift productionJFY International
7. Cost-Effective Used Premium Equipment, Low Maintenance & Resale Value
2023 late-model second-hand machine, original spare parts universal availability globally, easy maintenance
JFY/TRUMPF global service network, technical guidance, spare parts supply accessible worldwide
High residual value retention, durable core components, long service cycle, one-time investment brings long-term stable production return
Short Slogans for WhatsApp/Product Listing
2023 JFY TPM8 100T 3.1M Servo CNC Press Brake | TRUMPF Tech, Energy Saving 40%, High Precision, Low Hour Used
Premium Refurbished JFY Bending Machine | Mechanical Crowning, 3D CNC Control, Fast Delivery, Stable Performance
