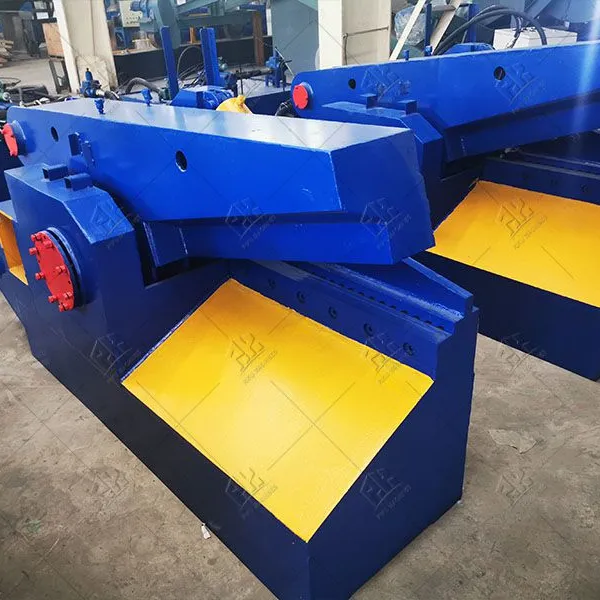

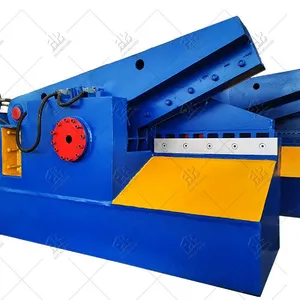

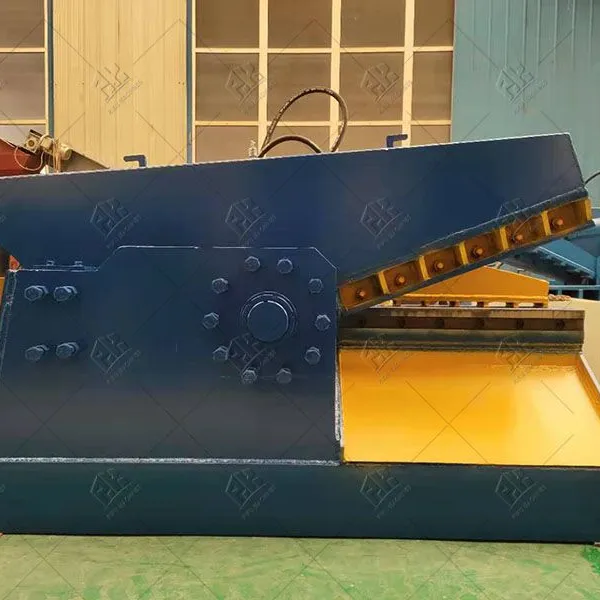

Q63-120 T crocodile shear for metal cutting crocodile shearing machine
1. Brief introductions

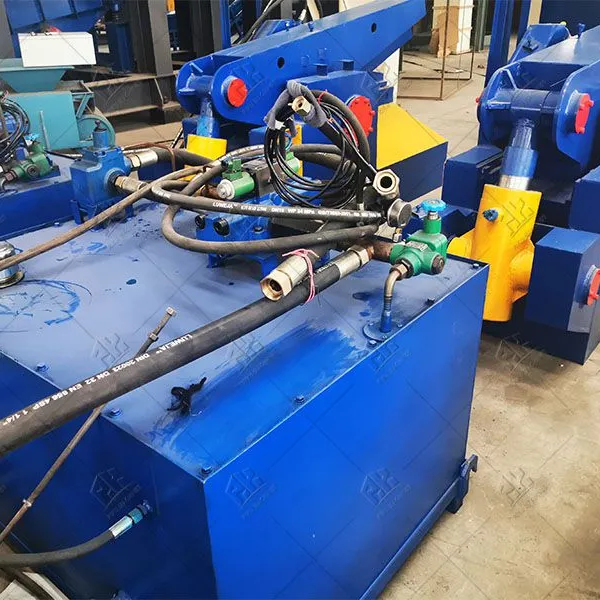

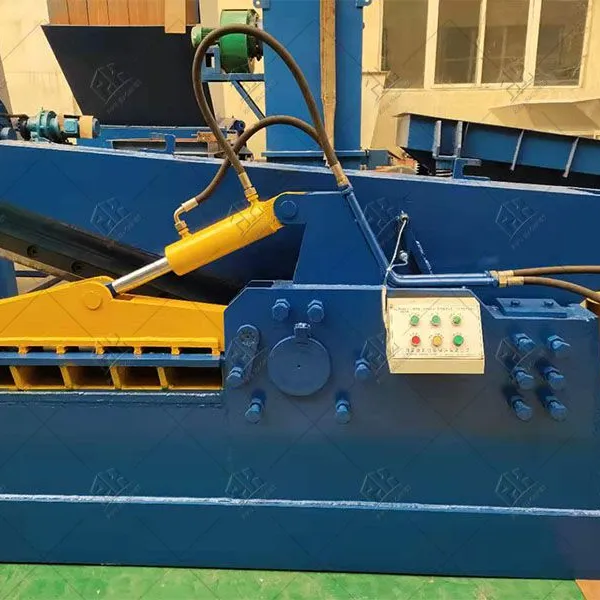

alligator shear is consist of the cylinder, shearing blade,Slider pressing blade,blade base .when the cylinder running, the hydraulic station (power outcome source) The pressing cylinder is supplied with oil to push the slider pressing knife onto the lower knife seat to complete the fixing and compacting of the material. Then the hydraulic pump station supplies oil to the shearing cylinder to move the shearing knife downward to complete the shearing work. After the shearing is completed, the hydraulic pump station supplies the shearing cylinder and the pressing cylinder with hydraulic oil reflux to complete the return action.
Technical parameters
| type | max shear | max pressure | Blade length | max open | Frequency | suitable | power |
| Q43-63 | 63 T | 20 T | 400 600 800 | 200 280 360 | 10-14 Times/min | 30*30 mm.dia35mm | 7.5kw |
| Q43-100 | 100T | 20t | 1000 mm | 350 mm | 8-10 times/min | 35*35mm dia 40mm | 11 kw |
| Q43-120 | 120T | 25T | 600 mm | 280 mm | 10-13 times/min | 45*45mm dia50 mm | 15 kw |
| Q43-130 | 130T | 25T | 700 MM | 320 MM | 10-13 times/min | 50*50mm,dia 55mm | 15kw |
| Q43-180A | 160T | 28T | 700 mm | 320 mm | 10-13 times/min | 55*55mm dia 60mm | 18.5kw |
| Q43-200 | 200T | 32T | 800 mm | 380mm | 9-12 times/min | 63*63mm.dia70 mm | 22kw |
| Q43-250 | 250T | 26T | 800/1000 mm | 340/450 mm | 6-8 times/min | 70*70mm diam 75mm | 30kw |
| Q43-500 | 500T | 50T | 1800 mm | 800 mm | 6-12 times/min | dia120mm | 45kw |
Q43 Series Crocodile Shear
Applications:Ideal for metal recycling companies, scrap steel plants, and smelting/steel foundries to perform cold shearing on various structural steel profiles and metal components, achieving furnace charge requirements.
Functionality:This machine is designed for cold cutting of various cross-sectional shapes including:
Bar Stock:Square steel, round steel
Structural Shapes: Angle steel, I-beams (steel joists)
Plate & Tube:Steel plate, steel pipes
Scrap Metal:Various scrap metal forms
Mill Operations:Cut-to-length shearing of hot-rolled small sections, and cut-to-length shearing of rolled steel mill sections/profiles.
| Structures | |||||||||||||
| 1. it takes the hydraulic driving, simple and easy operation | |||||||||||||
| 2. the working balde lengths:400 mm,600mm,800mm, 1000mm.1200mm. the shearing foce from 63T -400 Tons. 800mm and up blade shearing especially to shearing the auto waste | |||||||||||||
| 3.There is no need to foot fixed, meanwhile, the driving source could be diesel driving. |
Technical Advantages:
This equipment utilizes hydraulic transmission, offering significant advantages over mechanical transmission shears, including:
1.Compact Size & Lightweight Construction
2.Low Inertia
3.Reduced Noise Levels
4.Smooth Operation
5.User-Friendly & Flexible Operation
6.Large Shearing Capacity
7.Easy Adjustment of Blade Clearanc
8.Enhanced Operational Safety
9.Simplified Overload Protection
10.This equipment has manual and automatic functions, and the operation and control are convenient and simple. The scissors can start and stop cutting at any position during the working process, and the size of the shearing mouth can be arbitrarily controlled according to the size of the material being cut to achieve higher work efficiency.
