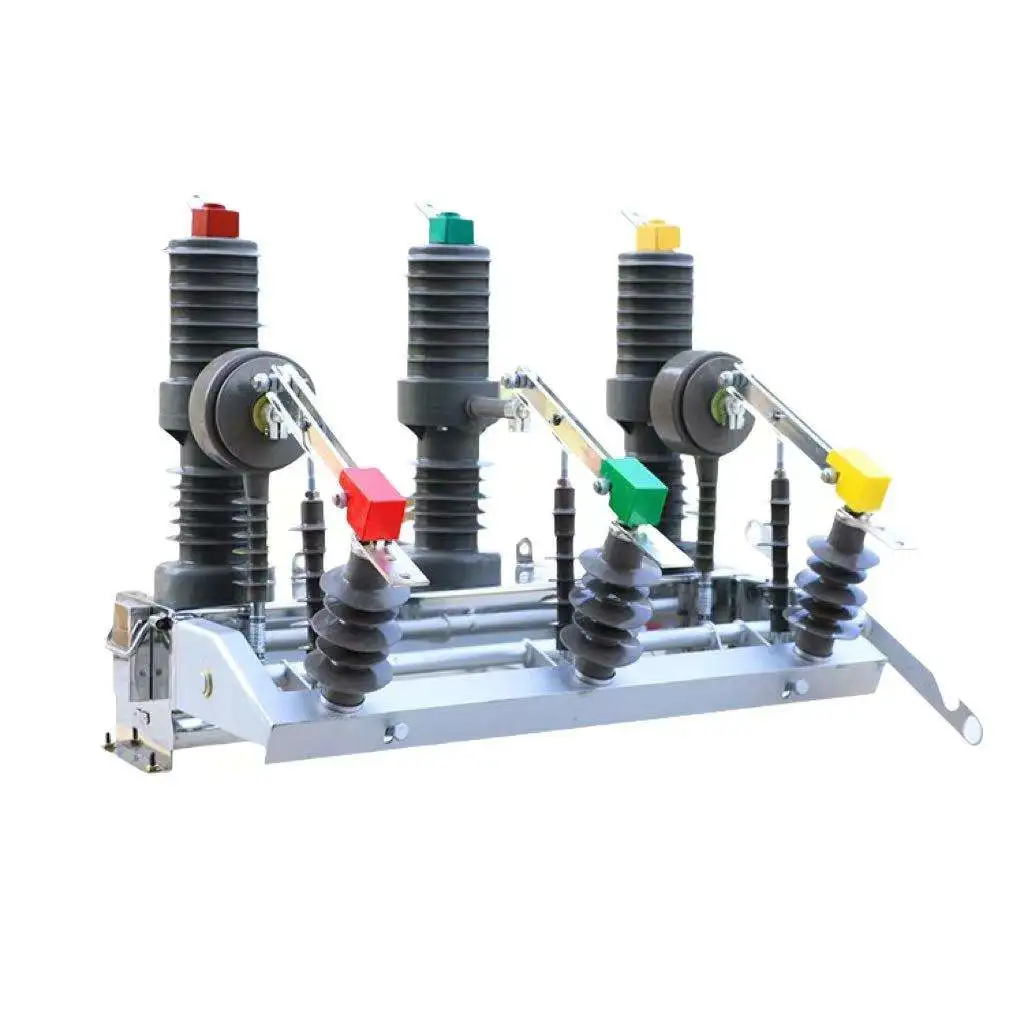

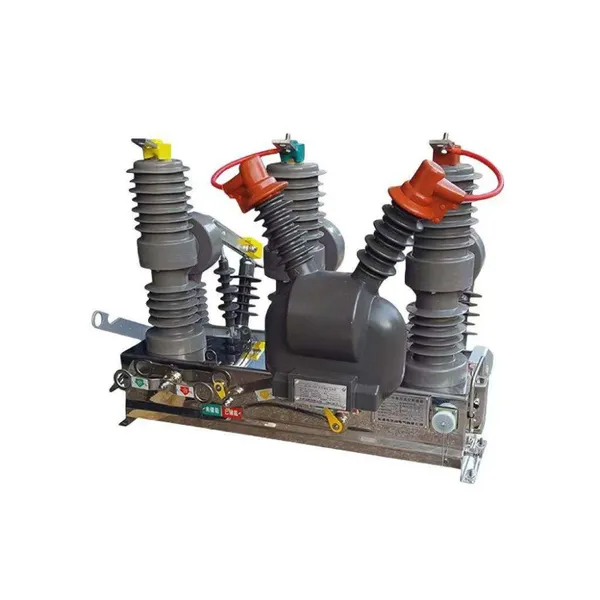

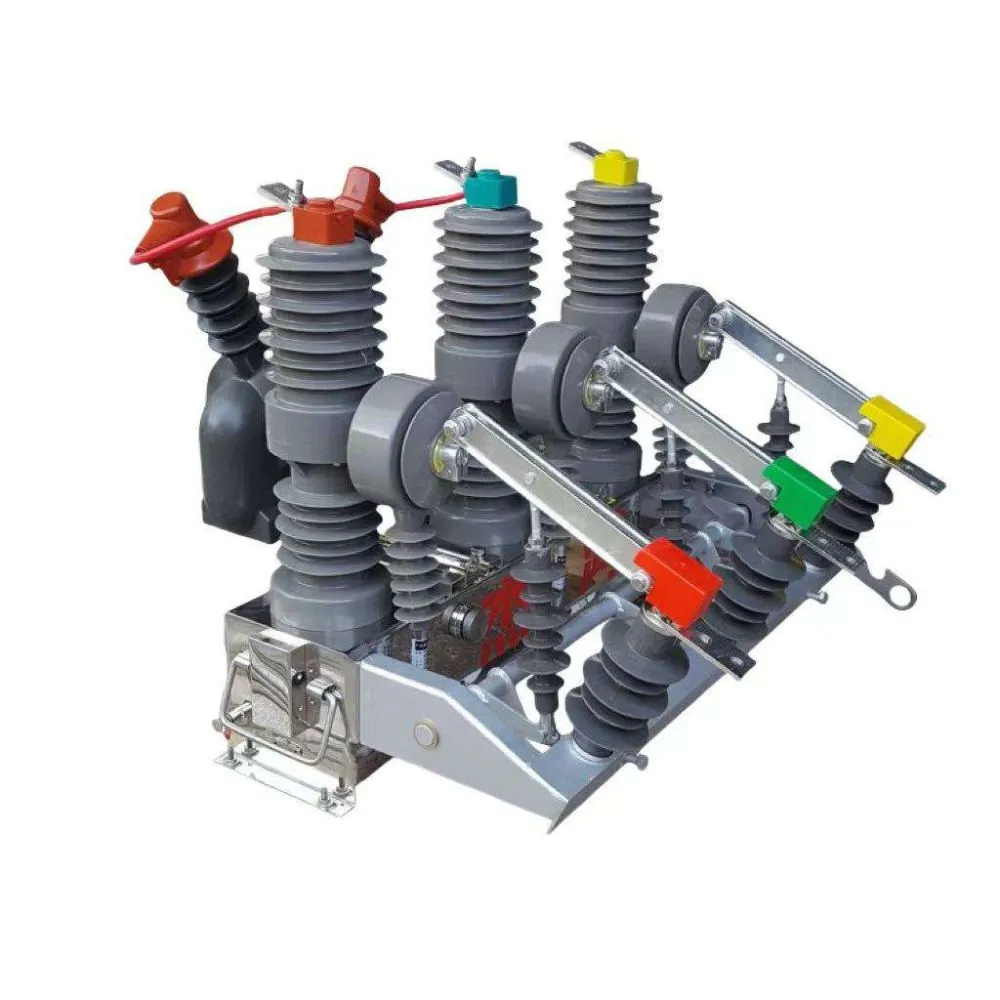

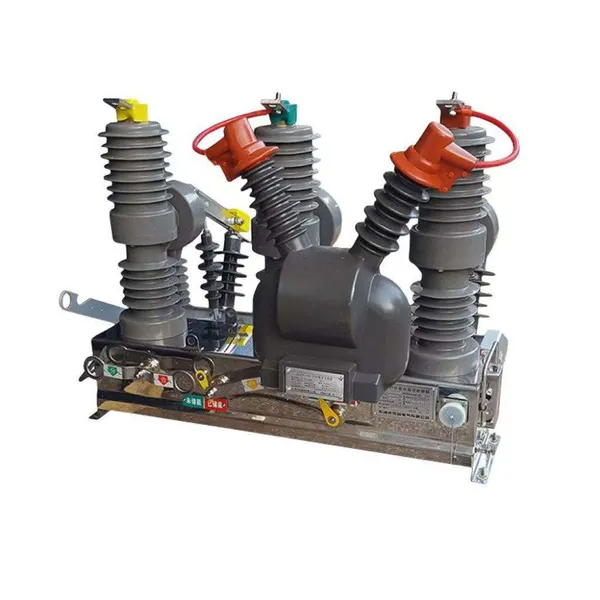

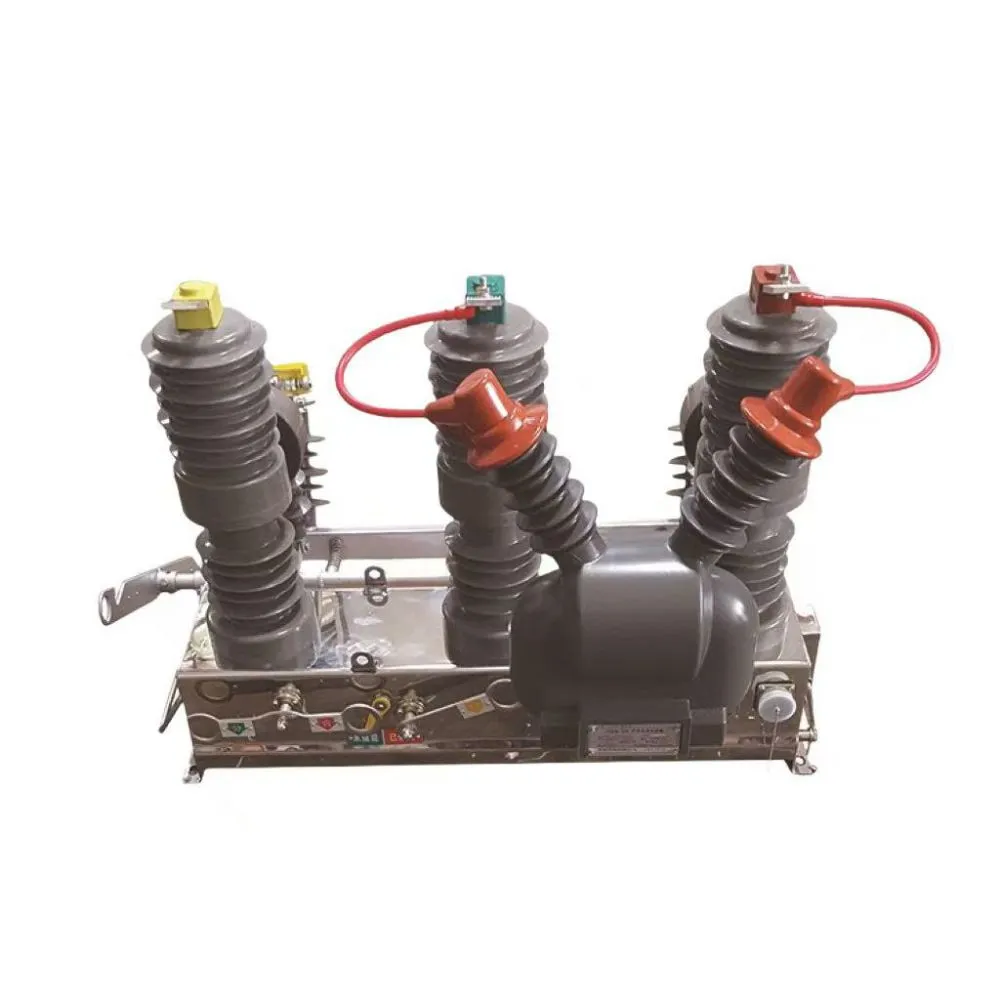

Help CenterZW32-12F Intelligent Outdoor Vacuum Circuit Breaker, 12kV 630A, With Remote Control Interface and Auto Reclosing
Product Spotlights
Related Products
-
Outdoor Pole Mounted ZW32-12F Circuit Breaker for Wind Farm and Solar Plant Switchgear ApplicationsUS$ 1550MOQ: 1 Unit -
ZW32-12F Outdoor Vacuum Circuit Breaker for Power Distribution System and Rural Electrification ProjectsUS$ 1550MOQ: 1 Unit
-
Outdoor Pole Mounted ZW32-12F Vacuum Circuit Breaker, 12kV/630A/20kA, IEC Standard CompliantUS$ 1550MOQ: 1 Unit
-
ZW32-12F Outdoor Vacuum Circuit Breaker With 2-Year Warranty and Factory Test Certificate IncludedUS$ 1550MOQ: 1 Unit
-
ZW32-12F High Voltage Vacuum Circuit Breaker, 12kV 630A Outdoor Type With SF6-Free Insulation and Spring Operating MechanismUS$ 1550MOQ: 1 Unit
As a professional manufacturer with ISO9001 quality management certification, Jinhua Dika Electrical Equipment Co., Ltd. is proud to introduce the ZW32-12F Intelligent Outdoor Vacuum Circuit Breaker. Engineered for reliability in medium-voltage distribution networks, this circuit breaker integrates advanced vacuum interrupting technology with intelligent control features, including remote operation and auto reclosing, to enhance grid stability and reduce operational downtime. Our commitment to stringent quality standards ensures that each unit delivers consistent performance, making it a trusted component for power utilities and industrial facilities worldwide.
The ZW32-12F is designed to meet the demanding requirements of modern power systems. Its core value lies in providing a robust, maintenance-friendly, and smart switching solution that protects electrical equipment from faults while enabling automated grid management. With features tailored for outdoor installation, it offers a significant upgrade over traditional breakers, contributing to safer and more efficient power distribution.
Product Features and Technical Advantages:
- Advanced Vacuum Interruption: Utilizes a high-quality vacuum interrupter chamber that ensures rapid arc extinction, minimal contact erosion, and a long electrical life, resulting in reliable fault isolation and reduced maintenance needs.
- Intelligent Control System: Equipped with a microprocessor-based controller that supports remote monitoring and control via the provided interface. This allows for real-time status updates, fault recording, and seamless integration into SCADA systems.
- Auto Reclosing Functionality: Features programmable auto reclosing sequences to automatically restore power after transient faults, significantly improving supply continuity and reducing the need for manual intervention.
- Robust Outdoor Construction: The housing is designed with weather-resistant materials, providing excellent protection against moisture, dust, UV radiation, and corrosive environments, ensuring dependable operation in diverse climatic conditions.
- User-Friendly Design: Incorporates clear indicators for switch status, spring charging, and fault alarms. The modular design facilitates easy installation, inspection, and potential future upgrades.
- Safety and Reliability: Built with multiple protective mechanisms, including overcurrent and short-circuit protection, to safeguard connected equipment and personnel. The vacuum technology offers superior dielectric recovery.
Technical Specifications:
| Parameter | Specification |
| Rated Voltage | 12 kV |
| Rated Current | 630 A |
| Rated Short-Time Withstand Current | 20 kA / 4s (Typical, customizable) |
| Rated Breaking Current | 20 kA |
| Mechanical Life | 10,000 operations (Minimum) |
| Control Voltage | DC 24V / 48V / 110V / 220V (Optional) |
| Operating Temperature Range | -40°C to +55°C |
| Protection Degree (Enclosure) | IP65 |
Benefits for Our Clients:
- Enhanced Grid Reliability: The auto reclosing feature minimizes outage duration, directly improving the quality of power supply for end-users.
- Reduced Operational Costs: Remote control capabilities lower the need for on-site personnel visits for routine operations and fault resetting, leading to cost savings.
- Extended Equipment Lifespan: The vacuum interrupter's minimal maintenance requirements and high durability translate to lower total cost of ownership.
- Improved Safety: The outdoor-rated, sealed design and reliable interrupting performance reduce risks associated with electrical faults.
- Future-Proof Investment: The intelligent interface allows for integration with evolving smart grid technologies, protecting your investment.
Backed by Jinhua Dika's proven manufacturing expertise and a commitment to quality reflected in our ISO9001 certification, the ZW32-12F represents a reliable choice for your distribution network. Our products reach diverse global markets, from North America and Europe to Southeast Asia and Africa, supported by efficient logistics from major Chinese ports. With a dedicated team of 11-50 professionals, we focus on delivering electrical equipment that meets the specific needs of utilities and industries. Choose the ZW32-12F for a combination of robust performance, intelligent features, and manufacturer-backed reliability. Contact us today to discuss how this circuit breaker can be integrated into your system or to request detailed technical documentation.
Frequently Asked Questions (FAQ)
-
What is the primary application of the ZW32-12F circuit breaker?
This breaker is primarily used for protection and control in 12kV overhead distribution lines, substations, and industrial power systems, suitable for frequent operation and areas requiring high reliability. -
How does the auto reclosing function work?
After detecting a fault and tripping, the intelligent controller can be programmed to attempt one or more automatic re-closures after a set time delay. If the fault is transient (e.g., a tree branch), power is restored; if persistent, it remains open. -
What communication protocols are supported by the remote control interface?
The standard interface often supports common protocols like Modbus RTU. Support for other protocols (e.g., DNP3, IEC 61850) may be available upon request to match your SCADA system. -
Is this breaker suitable for extremely cold or hot climates?
Yes. With an operating temperature range of -40°C to +55°C and an IP65-rated enclosure, it is designed to perform reliably in a wide variety of harsh outdoor environments. -
What is the typical maintenance interval for the vacuum interrupter?
The sealed vacuum interrupter is maintenance-free under normal operating conditions. Routine maintenance typically involves checking mechanical linkages, insulation, and the control unit as per the manufacturer's guidelines. -
Can the rated current or breaking capacity be customized?
Yes. While the standard model is 630A/20kA, we can provide customization for different current ratings or higher breaking capacities based on project specifications. -
What is the expected mechanical life?
The breaker is designed for a minimum mechanical life of 10,000 operations, ensuring long-term service in applications requiring regular switching. -
What are the shipping and delivery terms?
We ship from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo. Delivery terms (FOB, CIF, etc.) and lead times can be discussed based on your order quantity and destination.
