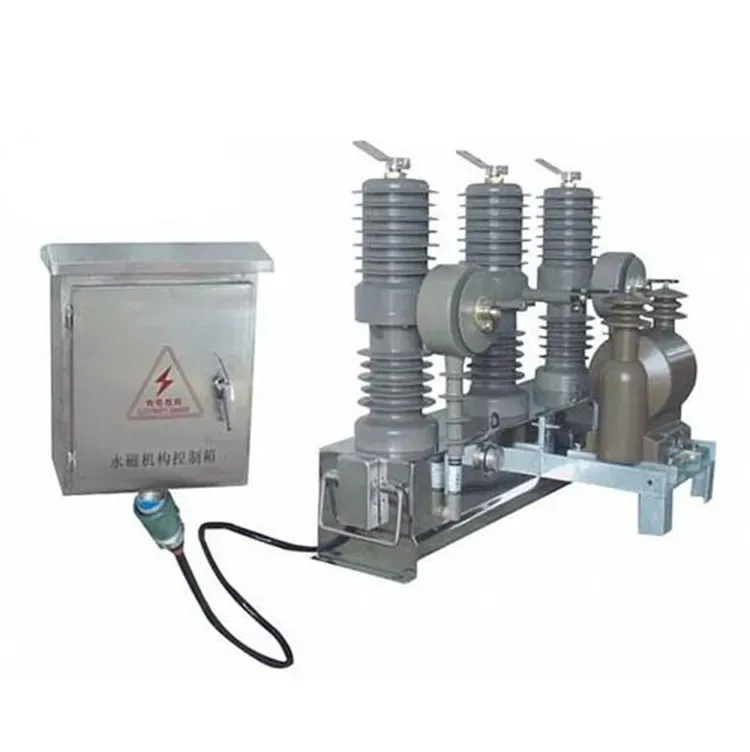

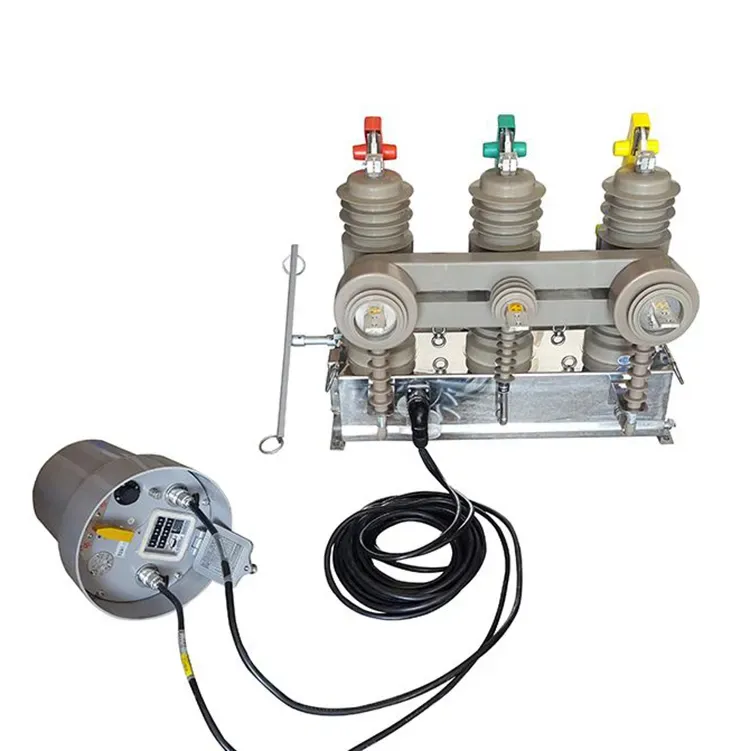

Help Center12KV Outdoor Vacuum Circuit Breaker With Detailed Installation Guide and Technical Support
Product Spotlights
Related Products
-
Outdoor Vacuum Circuit Breaker 12KV 20KA Short Circuit Current for Industrial Power SystemsUS$ 999MOQ: 10 Units -
35KV High Voltage Vacuum Circuit Breaker AC 50Hz IEC Standard Compliant for SubstationsUS$ 999MOQ: 10 Units
-
35KV Vacuum Circuit Breaker With 10-Year Service Life and 5000 Operations WarrantyUS$ 999MOQ: 10 Units
-
12KV Outdoor Vacuum Circuit Breaker With Manual/Electric Spring Operating MechanismUS$ 999MOQ: 10 Units
-
35KV AC 50Hz Vacuum Circuit Breaker With IP65 Protection for Harsh EnvironmentsUS$ 999MOQ: 10 Units
As a trusted manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. leverages our ISO9001 certification and over a decade of expertise to deliver the 12KV Outdoor Vacuum Circuit Breaker, designed for superior reliability in global power systems. With an annual export value of US$1 Million - US$1.5 Million and a team of 11-50 skilled professionals based in Jinhua, Zhejiang, China, we ensure this product combines cutting-edge vacuum technology with comprehensive support. Our breaker excels in harsh outdoor environments, reducing downtime and enhancing safety for industries worldwide. Backed by detailed installation guides and responsive technical assistance, it offers a cost-effective solution for modern electrical infrastructure needs.
This vacuum circuit breaker features advanced engineering for optimal performance. Key characteristics include:
- Robust Construction: Built with high-strength metal alloy, it withstands extreme weather conditions like rain, dust, and temperature fluctuations.
- Vacuum Interruption Technology: Ensures minimal maintenance by eliminating arc hazards and reducing wear over time.
- Easy Installation: Includes a detailed guide with diagrams and troubleshooting tips for quick, error-free setup.
- Technical Support: Our team provides remote or on-site assistance for commissioning, calibration, and ongoing operations.
- Energy Efficiency: Low power loss design helps lower operational costs and supports sustainable energy practices.
Technical specifications highlight the product's capabilities:
| Parameter | Value | Description |
|---|---|---|
| Rated Voltage | 12KV | Suitable for medium-voltage distribution networks. |
| Breaking Capacity | 20KA | Handles high fault currents effectively. |
| Insulation Level | 40KV | Ensures safety against electrical surges. |
| Operating Temperature | -30°C to +55°C | Reliable in diverse climates. |
| Mechanical Life | 10,000 cycles | Long-lasting durability with low upkeep. |
Customers benefit from reduced maintenance intervals, enhanced system reliability, and compliance with international standards. The vacuum mechanism minimizes fire risks, while the outdoor design integrates seamlessly into substations, industrial plants, and renewable energy sites. For instance, utilities in regions like Southeast Asia and Africa report improved grid stability and lower total cost of ownership after implementation.
Trust in Jinhua Dika's proven track record: We ship to key ports including Shanghai, Tianjin, Guangzhou, and Ningbo, serving markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, and beyond. Our ISO9001 certification guarantees consistent quality, and with exports valued at US$1 Million - US$1.5 Million annually, we've built a reputation for dependable solutions. This circuit breaker offers unmatched support for your power infrastructure—reach out today for a quote or technical consultation to elevate your operations.
Frequently Asked Questions (FAQ):
-
Q: What is the typical installation time for this circuit breaker?
A: With the detailed guide, installation usually takes 2-4 hours, depending on site conditions. Technical support can accelerate this process. -
Q: Is the technical support included free of charge?
A: Yes, basic support is complimentary for setup and initial operation. Extended services are customizable upon request. -
Q: Can this breaker handle high-altitude environments?
A: Absolutely, it's designed for altitudes up to 3000 meters, making it suitable for mountainous or remote areas. -
Q: What maintenance is required after installation?
A: Minimal maintenance is needed; vacuum technology reduces wear. We recommend annual inspections as per the guide. -
Q: Are custom voltage ratings available?
A: Yes, models can be customized for different voltages, such as 10KV or 15KV, based on your specifications. -
Q: How does the vacuum technology improve safety?
A: It extinguishes arcs quickly, preventing fire hazards and ensuring operator protection in outdoor settings. -
Q: What is the warranty period?
A: Standard warranty covers 2 years for parts and labor, with options for extension. -
Q: Is it compatible with existing control systems?
A: Yes, it integrates with common SCADA and automation systems; technical support assists with integration.
